Denon 9u-310150c Pwb Digital Assembly AVR-X7200W

Product Description

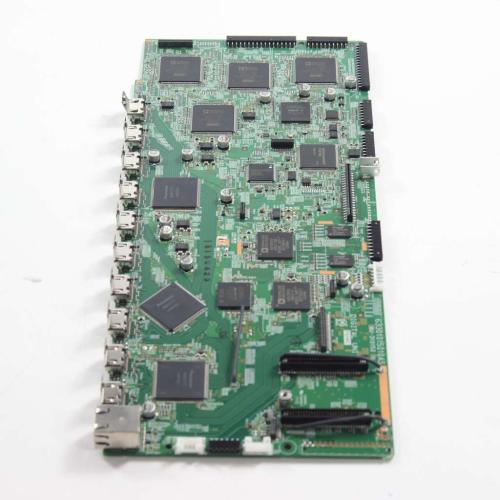

The DENON 9u-310150c is a PWB digital assembly circuit board designed as a direct replacement component for the AVR-X7200W AV receiver. This board handles core digital signal processing functions within the receiver's signal chain. It is an OEM-spec part sourced directly from the manufacturer and is intended for installation by qualified electronics technicians or experienced AV equipment repair professionals. When the original board fails due to component damage, power surge, or age-related degradation, this assembly provides a factory-matched replacement to restore proper operation.

This digital assembly board is applicable to the DENON AVR-X7200W home theater AV receiver. It is suited for repair scenarios in residential home theater installations where the digital processing stage has failed. Technicians servicing high-end AV receivers will recognize this as the correct PWB assembly for restoring the digital signal path in this specific unit.

Key Features

• OEM digital assembly board for the DENON AVR-X7200W AV receiver
• Direct factory replacement for the PWB digital assembly designated E3
• Restores digital signal processing functionality to the receiver
• Manufacturer-sourced part ensuring proper fit and function

Compatibility

Designed as a direct OEM replacement digital assembly board for the DENON AVR-X7200W AV receiver.

Installation Notes

Installation should be performed by a qualified electronics technician familiar with AV receiver repair procedures. Disconnect the unit from AC power and allow capacitors to discharge fully before opening the chassis or handling internal boards. Use appropriate ESD precautions including a grounded wrist strap when handling the PWB assembly. Refer to the manufacturer service documentation for proper connector seating and reassembly procedures.

Technical Specifications

• Part Type: PWB Digital Assembly
• Designation: E3

Standard Information

• Brand: DENON
• Manufacturer Part Number: 9u-310150c
