Denon 943643104800s Hdmi 2.1 Right Angle Type a Smt Jack

Product Description

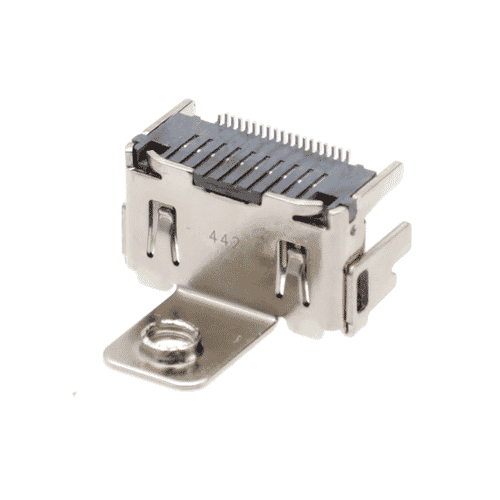

The DENON 943643104800s is a surface-mount HDMI jack connector rated to the HDMI 2.1 specification. It features a right-angle Type A configuration with a 19-pin SMT footprint and an integrated flange for secure board mounting. This connector is a replacement-level component used in DENON consumer electronics equipment. Installation is typically performed by certified electronics technicians or repair depots with surface-mount rework capability. The HDMI 2.1 specification supports high-bandwidth audio and video signal transmission, making correct connector replacement critical to restoring full device function.

This jack is suited for board-level repair of DENON receivers, amplifiers, or other consumer electronics units that use a right-angle HDMI 2.1 Type A port. It is a factory-spec replacement part sourced through DENON parts and accessories channels. Technicians performing PCB-level component replacement will find this part appropriate for restoring damaged or failed HDMI input and output ports on compatible DENON equipment.

Key Features

• HDMI 2.1 specification compliant connector
• Right-angle Type A orientation for low-profile board layouts
• 19-pin SMT configuration for surface-mount reflow installation
• Integrated flange for reinforced mechanical mounting to the PCB
• OEM DENON replacement part for consumer electronics repair

Compatibility

Designed as an OEM-style replacement HDMI jack for DENON consumer electronics equipment requiring a right-angle Type A SMT 19-pin flanged connector.

Installation Notes

Installation requires surface-mount soldering equipment and should be performed by a qualified electronics technician or certified repair depot. Power down and fully discharge the host unit before beginning any board-level work. Follow applicable electronics safety and ESD precautions when handling PCB components. Verify pad condition and clean the landing site before reflowing the replacement connector.

Technical Specifications

• Connector Type: HDMI Type A
• HDMI Version: 2.1
• Orientation: Right Angle
• Pin Count: 19
• Mounting Style: Surface Mount (SMT)
• Flange: Yes

Standard Information

• Brand: DENON
• Manufacturer Part Number: 943643104800s
