Denon 943101104260s Power Transformer AVR-S760H AVR-X1700H

Product Description

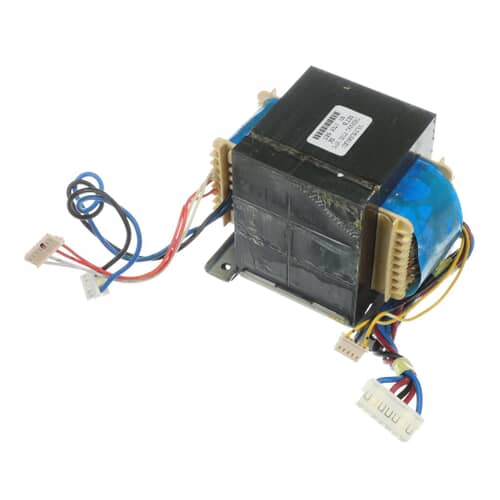

The DENON 943101104260s is a power transformer designed as a direct OEM replacement component for Denon AV receivers. The power transformer is a core internal component responsible for stepping down and regulating AC mains voltage to the lower voltages required by the receiver's internal circuitry, including amplifier stages, signal processing boards, and control electronics. This part is sourced directly from Denon's parts and accessories line, making it suitable for authorized service centers and experienced electronics technicians performing board-level repairs on compatible Denon consumer AV receivers.

This transformer is intended for use in residential AV receiver repairs, specifically as an internal service replacement. It is installed during bench-level repair procedures on failed or damaged power supply sections. Compatible unit designations referenced in the part documentation include the AVR-S760H and AVR-X1700H series receivers. Installation requires disassembly of the receiver chassis and is not a field-serviceable swap — it is a depot or bench repair component handled by qualified electronics service technicians.

Key Features

• OEM Denon replacement power transformer for direct service compatibility
• Designed for bench-level repair of Denon AV receiver power supply sections
• Sourced from Denon's official parts and accessories supply chain
• Supports internal voltage conversion for amplifier and signal processing circuits

Compatibility

Compatible with Denon AVR-S760H and AVR-X1700H AV receivers as indicated by part documentation (AVRS760HE3 and AVRX1700HE3 model designations).

Installation Notes

Installation of this power transformer should be performed by a qualified electronics technician with experience in AV receiver board-level repair. Always disconnect the unit from mains power and allow capacitors to fully discharge before beginning disassembly. Follow applicable electrical safety practices and observe all manufacturer service documentation during reassembly. Improper installation of internal power supply components can result in equipment damage or personal injury.

Technical Specifications

• Component Type: Power Transformer
• Part Classification: OEM Replacement Part

Standard Information

• Brand: DENON
• Manufacturer Part Number: 943101104260s
