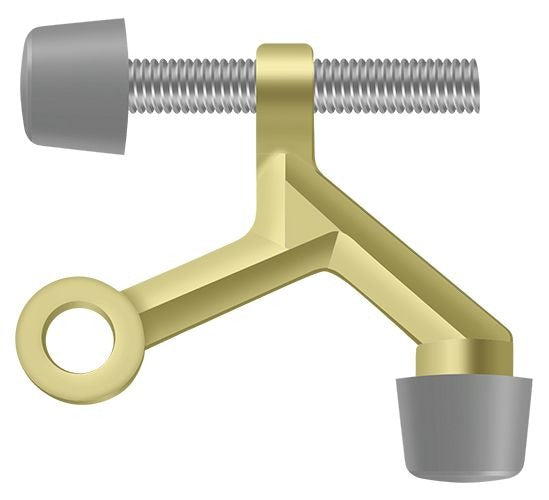

Deltana ZHP70U3 Hinge Pin Stop Zinc Die-cast Bright Brass

Product Description

The DELTANA ZHP70U3 is a hinge-mounted hinge pin stop designed to control door swing and protect walls, trim, and adjacent hardware from impact damage. Fabricated from zinc die-cast with a bright brass finish, this stop installs directly onto the hinge pin of an existing door hinge, eliminating the need for separate wall or floor anchors. At 2.25 inches in length, 2 inches in width, and 0.5 inches in height, it presents a low-profile footprint suited to both residential and light commercial applications. Installation requires no special tools and is typically performed by carpenters, finish hardware installers, or general contractors during door hardware trim-out.

The ZHP70U3 fits standard residential and light commercial door installations where a discreet door stop solution is preferred. The hinge-pin mount style is commonly specified when wall or floor stops are impractical due to baseboard profile, flooring type, or clearance constraints. It is sold individually and is appropriate for single-door retrofit or new construction installations.

Key Features

• Hinge-pin mount design requires no wall or floor penetration
• Zinc die-cast construction provides durable, consistent form
• Bright brass finish for a clean, traditional appearance
• Compact profile: 2.25 inches x 2 inches x 0.5 inches
• Lightweight at 0.1 pounds for easy single-handed installation
• Sold as individual unit for flexible ordering

Compatibility

Designed as an OEM-style hinge pin stop for standard residential and light commercial door hinges where a hinge-pin-mounted door stop is applicable.

Installation Notes

Installation is performed by removing the existing hinge pin, threading the stop onto the pin, and reseating the pin into the hinge barrel. No special tools beyond a hammer or pin punch are typically required. Confirm hinge pin diameter compatibility before installation. Always ensure the door is properly supported and stationary during hinge pin removal to prevent uncontrolled door movement.
