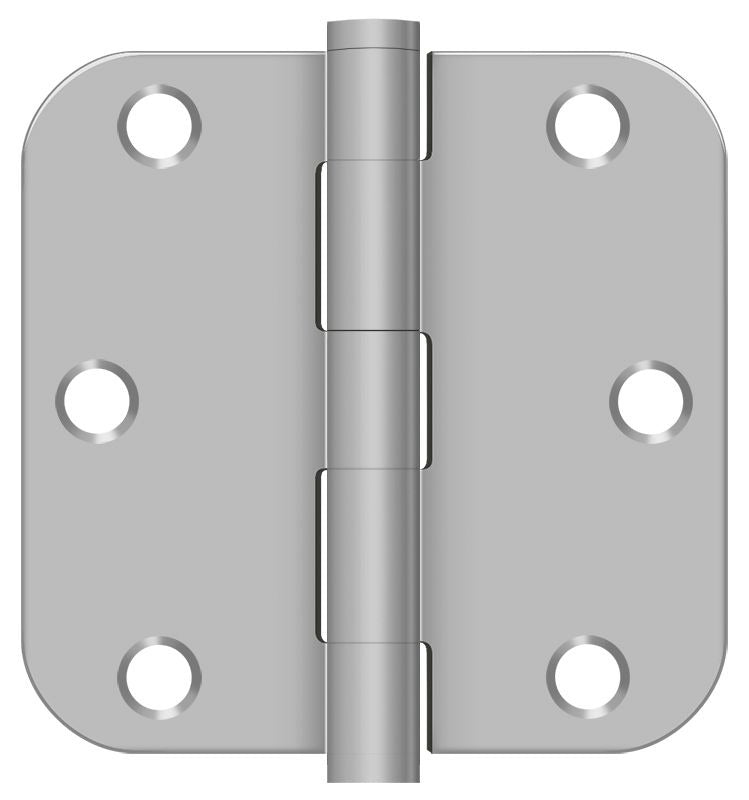

Deltana SS35R5U32D-R Radius Door Hinge Satin Stainless

Product Description

The DELTANA SS35R5U32D-R is a radius corner door hinge finished in satin stainless steel, designed for interior and exterior door installations where a clean, corrosion-resistant fastening point is required. Measuring 3.5 x 3.5 inches with a 5/8-inch radius corner profile, this hinge provides a flush, low-profile mount suited to standard residential and light commercial door frames. Sold as a pair, it is installed by finish carpenters, general contractors, and door hardware specialists working on new construction or replacement projects. The satin stainless steel finish delivers both durability and a consistent aesthetic across door hardware sets.

This hinge is appropriate for standard door applications in residential and light commercial settings. The radius corner design is commonly specified on interior passage doors, closet doors, and entry doors where square-corner or radius-corner mortise hinges are called for. It is well-suited for projects requiring consistent stainless steel hardware throughout, including coastal or high-humidity environments where corrosion resistance is a priority. Each order unit ships as a pair.

Key Features

• Radius corner profile for compatibility with standard radius-mortise door prep
• Satin stainless steel finish resists corrosion in humid and coastal environments
• 3.5 x 3.5 inch leaf size fits common residential and light commercial door specifications
• 5/8-inch radius corners reduce the need for additional chiseling on pre-mortised door frames
• Sold as a pair to cover a single hinge location per order unit

Compatibility

Designed as an OEM-style replacement or new-installation hinge for standard residential and light commercial doors requiring a 3.5 x 3.5 inch radius corner mortise hinge in a satin stainless steel finish.

Installation Notes

Installation is performed by finish carpenters or door hardware technicians using a chisel and mallet or router jig to prepare the mortise on both the door edge and the door frame jamb. Ensure the door is fully removed or securely propped before installing or replacing hinges. Fastener holes should align with existing or properly laid-out mortise locations to prevent door misalignment. Follow local building codes for door hardware when applicable to commercial projects.
