Deltana S35R5BB10B Ball Bearing Hinge Oil Rubbed Bronze

Product Description

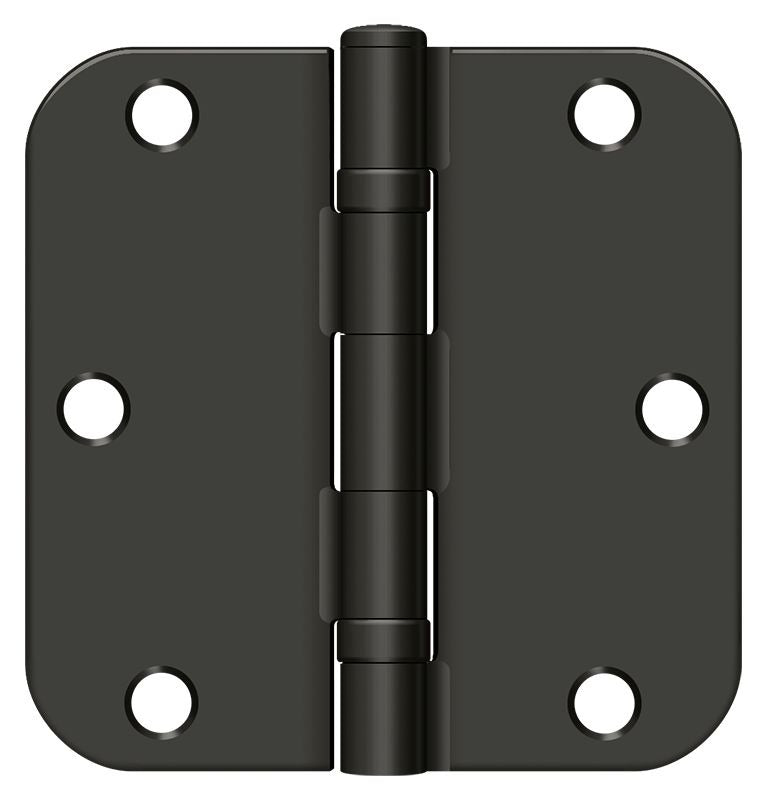

The DELTANA S35R5BB10B is a radius corner, ball bearing door hinge finished in oil rubbed bronze. Measuring 3-1/2 inches by 3-1/2 inches with a 5/8-inch throw, this hinge is built for interior and exterior door applications where smooth, consistent pivot action is required. The ball bearing construction reduces friction and wear over the life of the door cycle, making it a reliable choice for high-traffic openings. Licensed contractors and finish carpenters install this hinge as part of standard door hardware sets in commercial and residential builds.

This hinge suits residential entry doors, interior passage doors, and light commercial door applications where an oil rubbed bronze finish is specified. It is sold as a pair, making it straightforward to order for standard two- or three-hinge door installations. The radius corner profile matches the most common door and frame preparations found in residential and light commercial construction, reducing the need for additional mortise squaring.

Key Features

• Ball bearing construction for smooth, low-friction pivot operation
• 3-1/2 x 3-1/2 inch leaf size fits standard residential and light commercial door prep
• 5/8-inch throw for typical door and frame clearance
• Oil rubbed bronze finish for consistent aesthetic with matching architectural hardware
• Radius corner profile matches standard pre-mortised door and frame cuts
• Sold as a pair for straightforward quantity ordering

Compatibility

Designed as an OEM-style replacement or new-installation hinge for standard residential and light commercial doors requiring a 3-1/2 x 3-1/2 inch radius corner mortise hinge preparation.

Installation Notes

Installation is performed by finish carpenters or licensed door and hardware installers. Ensure the door and frame mortises are cut to the correct depth before seating the hinge leaves to avoid binding. Remove the door from the opening and relieve any spring tension on existing hardware before swapping hinges. Follow applicable local building codes for fire-rated or exterior door assemblies.
