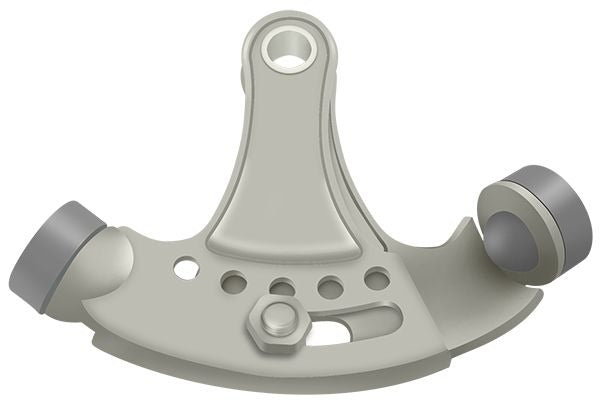

Deltana HPA69U15 Hinge Pin Door Stop Satin Nickel

Product Description

The DELTANA HPA69U15 is a hinge-mounted, adjustable hinge pin door stop finished in satin nickel. It installs directly onto an existing door hinge pin, eliminating the need for separate wall or floor hardware. The stop limits how far a door swings open, protecting walls, trim, and furniture from door handle impact. At 1.5 inches long, 1.5 inches wide, and 0.2 inches in height, it is a compact solution that stays out of sight when not in contact with the door frame. Weighing just 0.12 pounds, it is light enough to avoid interfering with normal door swing. This type of hardware is typically installed by finish carpenters, door hardware specialists, and skilled tradespeople during door prep or renovation work.

The HPA69U15 is suited for interior residential and light commercial applications where door swing control is needed without modifying walls or floors. The hinge-mounted design works with standard swinging doors and is a common retrofit solution on existing installations. The satin nickel finish coordinates with brushed metal door hardware found in contemporary and transitional interior settings. It is sold individually and is appropriate wherever a low-profile, unobtrusive door stop is required.

Key Features

• Hinge-mounted installation requires no wall or floor drilling
• Adjustable design allows positioning to control door swing range
• Compact footprint: 1.5 inches x 1.5 inches x 0.2 inches
• Satin nickel finish for a brushed, corrosion-resistant appearance
• Lightweight at 0.12 pounds, minimizing load on the hinge pin
• Sold as individual unit for single-door applications

Compatibility

Designed as an OEM-style replacement or new-installation hinge pin door stop for standard residential and light commercial swinging door hinges.

Installation Notes

Installation is performed by removing the existing hinge pin, threading the stop onto the pin, and reinstalling the pin into the hinge barrel. No special tools are required beyond a hammer or pin punch to drive the hinge pin. Ensure the door is fully closed and the hinge is not under load before removing the pin. Adjust the stop position before fully seating the pin to confirm proper door swing limitation.
