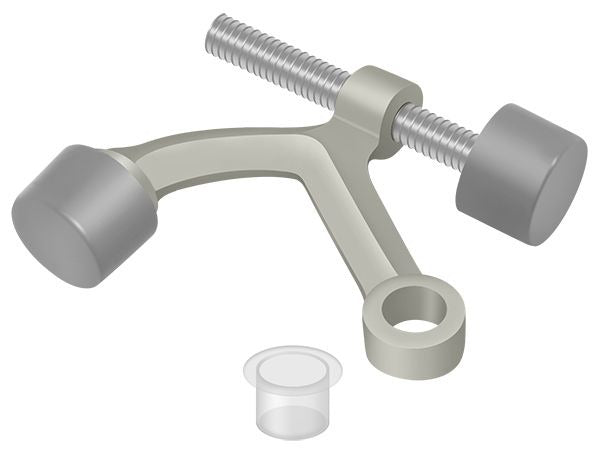

Deltana HP70U15 Hinge Pin Door Stop Satin Nickel

Product Description

The DELTANA HP70U15 is a hinge-mounted hinge pin door stop designed to limit door travel by engaging directly at the hinge pin rather than at the floor or wall. This low-profile stop installs on standard door hinges, keeping the door from swinging too far open and preventing damage to walls, trim, and hardware. The HP70U15 ships in a Satin Nickel finish, making it a clean match for residential and light commercial door hardware sets. At 0.1 pounds and compact dimensions, it adds no meaningful load to the hinge assembly. Suitable for finish carpenters, door hardware installers, and experienced DIYers working on interior door applications.

This hinge pin stop is intended for standard interior door installations where a floor stop or wall stop is impractical or undesirable. Typical applications include closet doors, hallway doors, and bedroom doors in residential construction and light commercial buildouts. The hinge-mounted design keeps the floor clear and works well in high-traffic doorways where a floor-mounted stop would be a trip hazard or obstruction.

Key Features

• Hinge-mounted design installs directly at the door hinge pin — no wall or floor anchoring required
• Satin Nickel finish for a clean, matte appearance compatible with common hardware sets
• Compact profile: 2.75 inches long, 2 inches wide, 0.5 inches tall
• Lightweight at 0.1 pounds — no added stress on hinge assembly
• Sold individually (each)

Compatibility

Designed as an OEM-style hinge pin door stop for standard residential and light commercial door hinges where a pin-style stop is appropriate.

Installation Notes

Installation is performed by removing the hinge pin, placing the stop on the hinge, and reseating the pin — no special tools are typically required beyond a pin punch and hammer. Ensure the door is held secure or supported during hinge pin removal to prevent the door from shifting. Verify the stop arm rotates freely and makes proper contact with the hinge barrel before returning the door to service. No cutting, drilling, or wall patching is required with this mounting style.
