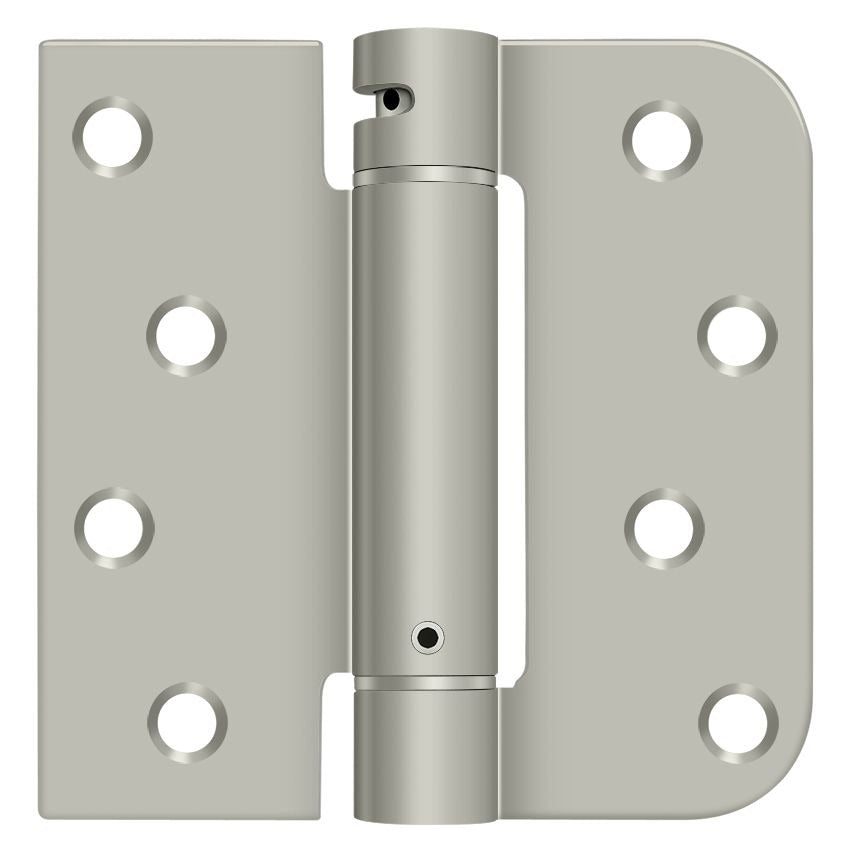

Deltana DSH4SR515-RH Right Hand Spring Hinge Satin Nickel

Product Description

The DELTANA DSH4SR515-RH is a right-hand spring hinge designed for self-closing door applications in residential and light commercial construction. It measures 4 inches by 4 inches with a 5/8-inch radius corner on one side and a square corner on the other, finished in satin nickel over solid brass construction. The built-in spring mechanism applies consistent closing tension without a separate door closer, making it well suited for interior doors required to self-close under building or fire codes. This hinge is sold as a single unit and is installed by carpenters, finish contractors, or door hardware specialists.

This hinge is appropriate for interior passage doors, corridor doors, and light commercial doors where self-closing function is required. The 4-inch by 4-inch leaf size accommodates standard residential and light commercial door thicknesses. The satin nickel finish coordinates with common architectural hardware suites. The radius-by-square corner profile fits specific door edge preparations, so confirm door and frame mortise profiles before ordering.

Key Features

• Built-in spring mechanism provides self-closing function without an auxiliary closer
• Right-hand designation — confirm hand orientation before installation
• 4 inches x 4 inches leaf size fits standard residential and light commercial doors
• 5/8-inch radius corner on one side, square corner on the other for specific mortise profiles
• Satin nickel finish for corrosion resistance and aesthetic compatibility with common hardware suites
• Solid brass base material for durability and dimensional stability

Compatibility

Designed as an OEM-style replacement or new-installation spring hinge for standard residential and light commercial interior doors requiring a 4-inch x 4-inch mortise hinge with a radius-by-square corner profile.

Installation Notes

Spring hinges are typically installed by finish carpenters or licensed door hardware technicians. Mortise the door edge and frame jamb to the correct leaf dimensions before seating the hinge. Adjust spring tension using the supplied tension pin and adjustment slots — do not exceed the manufacturer-recommended tension setting, as overtensioning can stress the door frame. Verify the hand designation matches the door swing before installation, as spring hinges are not field-reversible.
