Deltana DSH35R515 Spring Hinge 3.5x3.5 Satin Nickel

Product Description

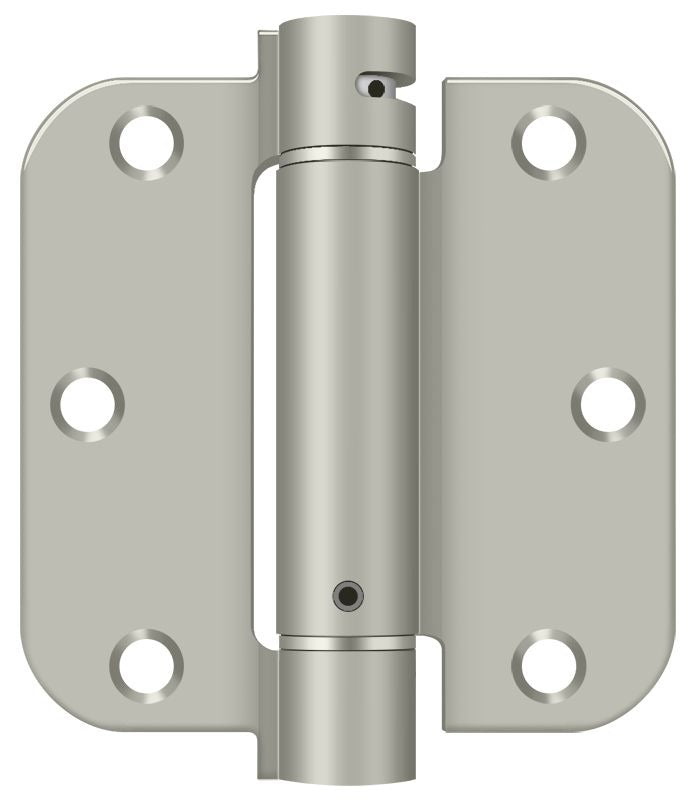

The DELTANA DSH35R515 is a self-closing spring hinge designed for standard door applications requiring consistent, automatic return action. Measuring 3.5 x 3.5 x 0.625 inches, this hinge provides reliable tension-driven closure suitable for interior and light commercial doors. The satin nickel finish offers a clean, neutral appearance compatible with a wide range of door hardware sets. Weighing 0.7 pounds per unit, the DSH35R515 is a single-unit item sold individually. Architectural hardware installers and general contractors typically specify this hinge where building codes or project specs require self-closing door function.

The DSH35R515 is suited for residential and light commercial door installations where a self-closing mechanism is required. Typical applications include corridor doors, utility room entries, and other interior openings where automatic closure is specified. The satin nickel finish coordinates with matching DELTANA lever sets, knobs, and other architectural hardware in the same finish family. This hinge is sold as a single unit, with case quantities of 50 available for larger projects.

Key Features

• Self-closing spring mechanism provides automatic door return without a separate closer
• 3.5 x 3.5 x 0.625 inch leaf dimensions suit standard residential and light commercial door prep
• Satin nickel finish for a consistent, low-glare appearance
• Sold as a single unit (EA); case quantity of 50 available
• Lightweight at 0.7 pounds per unit for easy handling during installation

Compatibility

Designed as an OEM-style replacement or new-installation spring hinge for standard 3.5 x 3.5 inch hinge-prep door frames in residential and light commercial applications.

Installation Notes

Spring hinges are typically installed by carpenters, finish hardware installers, or general contractors following door hardware manufacturer guidelines. The spring tension should be adjusted using the supplied pin tool after the door is hung and the latch hardware is installed. Ensure the door is fully supported and the frame is square before final tension adjustment. Follow local building code requirements where self-closing doors are mandated, such as fire-rated corridor assemblies.
