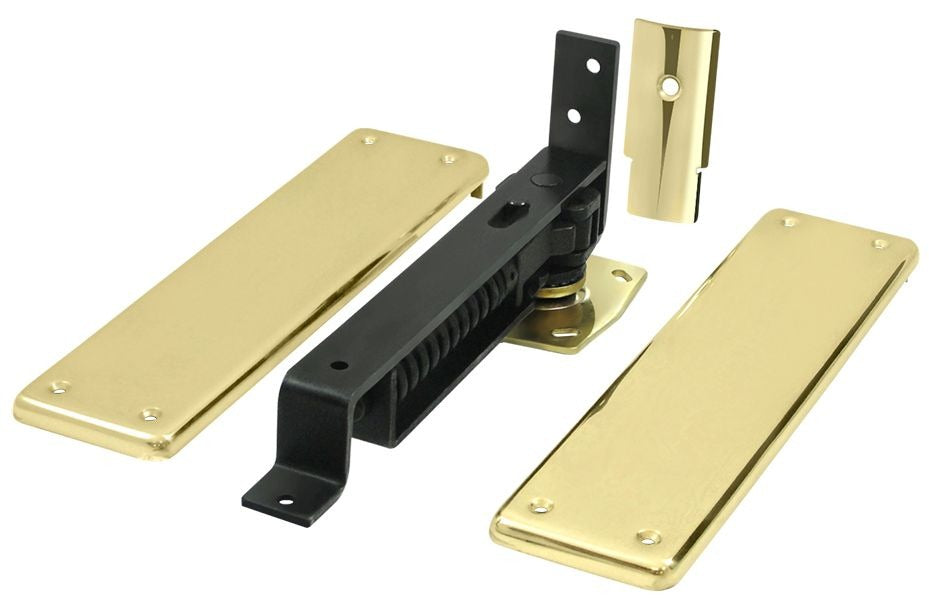

Deltana DASH95U3 Double Action Spring Pivot Floor Hinge

Product Description

The DELTANA DASH95U3 is a double action spring pivot floor hinge designed for doors that need to swing freely in both directions and return to center. The unit ships with solid brass cover plates finished in Bright Brass, making it suited for visible, high-traffic installations where appearance matters alongside function. At 3.5 pounds, the assembly is substantial hardware built for demanding commercial and residential entry applications. A licensed contractor or experienced door hardware installer typically handles this fitting to ensure proper floor anchoring and spring tension adjustment.

This floor hinge is used in applications where a door must swing 90 degrees in either direction, such as restaurant kitchen pass-throughs, retail entry doors, and institutional corridor doors. The double action spring mechanism returns the door to the closed position after each pass. The Bright Brass finish coordinates with other architectural brass hardware in the same space. Sold as an individual unit, it is suitable for single-door installations requiring a concealed floor-mounted pivot point.

Key Features

• Double action spring mechanism allows 180-degree total swing arc with automatic return to center
• Solid brass cover plates in Bright Brass finish for a clean, finished floor appearance
• Floor-mounted pivot design keeps door hardware concealed and out of the frame line
• Substantial 3.5-pound construction for durability in high-cycle environments
• Sold individually, compatible with standard floor hinge door preparation

Compatibility

Designed as an OEM-style floor hinge replacement or new installation fitting for doors requiring a double action spring pivot floor mount with standard floor hinge door preparation.

Installation Notes

Installation should be performed by a qualified door hardware installer or licensed contractor familiar with floor hinge mortise preparation. Ensure the floor substrate is level and structurally sound before anchoring the hinge body. Disconnect any electric strike or access control power before working on the door assembly. Follow the door and frame manufacturer specifications for mortise depth and pivot alignment to ensure proper spring tension and swing clearance.
