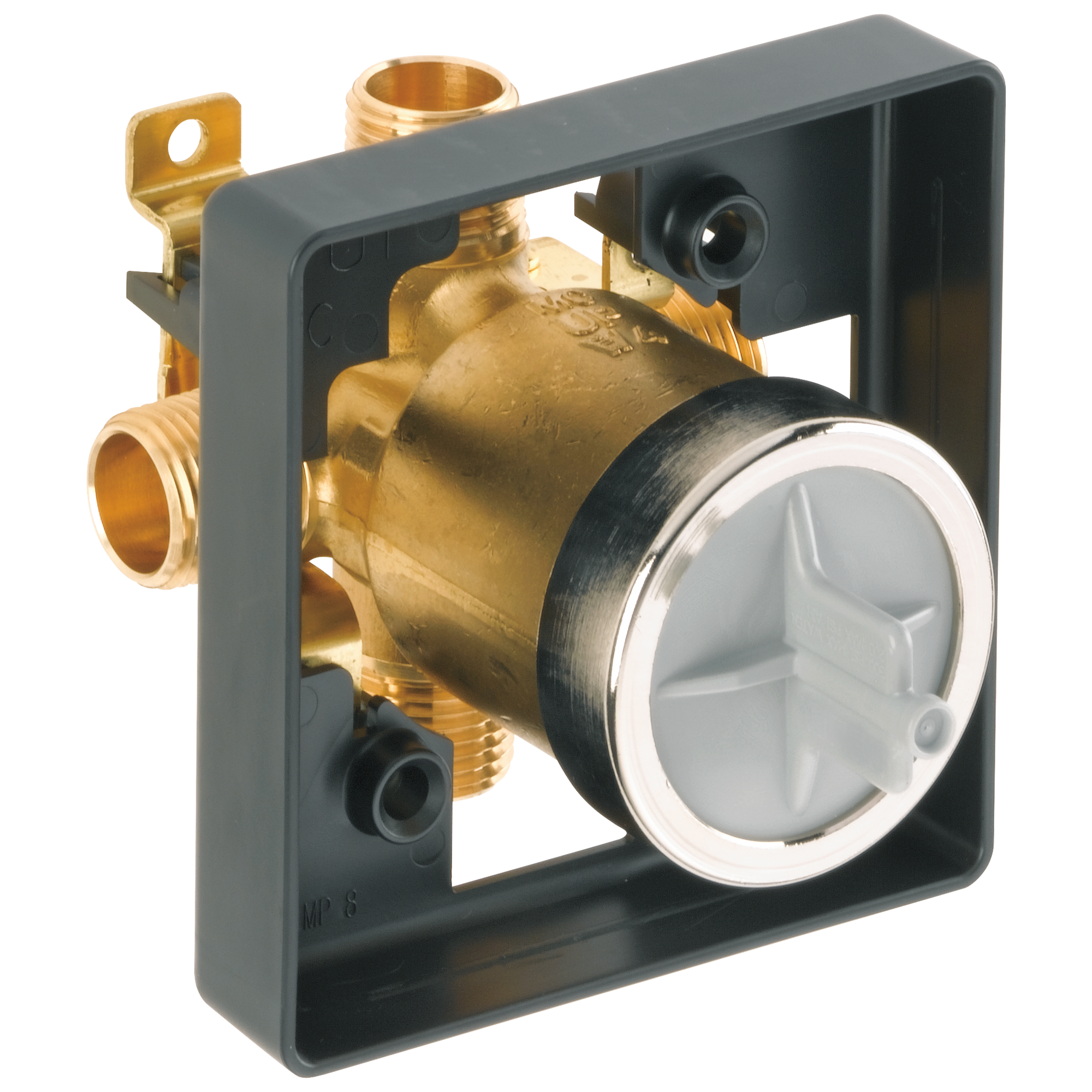

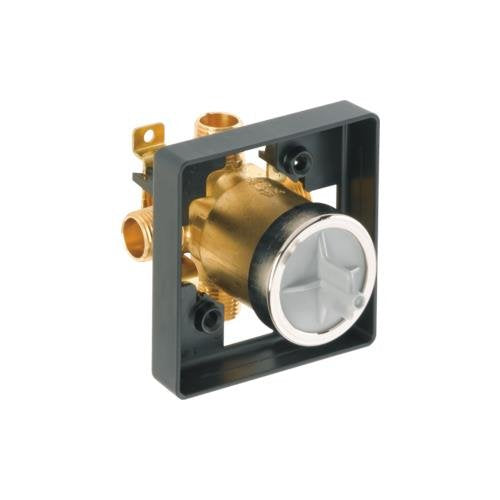

Delta R60000-UNBX Universal Tub/Shower Rough Valve Body 1/2 in MNPT Inlet x 1/2 in FNPT C Outlet

Product Description

The DELTA R60000-UNBX is a universal rough-in valve body for tub and shower systems. It features 1/2 inch MNPT inlet and 1/2 inch FNPT C outlet connections. Constructed from forged brass, this valve body offers both durability and versatility for various plumbing configurations. It is compatible with MultiChoice Universal single or dual function trims.

• Features 1/2 inch universal inlets that accept 1/2 inch copper, iron pipe, PEX, or CPVC adapters
• Equipped with 1/2 inch universal outlets with male threads and back-to-back capability
• Designed for use with Brizo pressure balance or TempAssure thermostatic shower trim

Product Highlights

The DELTA R60000-UNBX universal valve body allows for easy shower experience updates without altering the wall.

Product Information

Standard Information

• Brand: DELTA
• Manufacturer Part Number: R60000-UNBX

Technical Specifications

• Material: Forged Brass
• Inlet Connection: 1/2 in MNPT
• Outlet Connection: 1/2 in FNPT C
• Nominal Size: 1/2 inch
• Mounting Type: Thin Wall
• Brand: Delta
• Model / MPN: R60000-UNBX
• Type: Universal
• Number Of Ports: 4
• Inlet Size: 1/2 Inch
• Outlet Size: 1/2 Inch
• Valve Type: Rough-In
• Pressure Rating: 200 psi For Water, 300 psi For Air
• Suitable For Use With: MultiChoice® Universal Single or Dual Function Trim
• Domestic/Import: Domestic
