Delta Faucet T17255-SS Shower Trim

Product Description

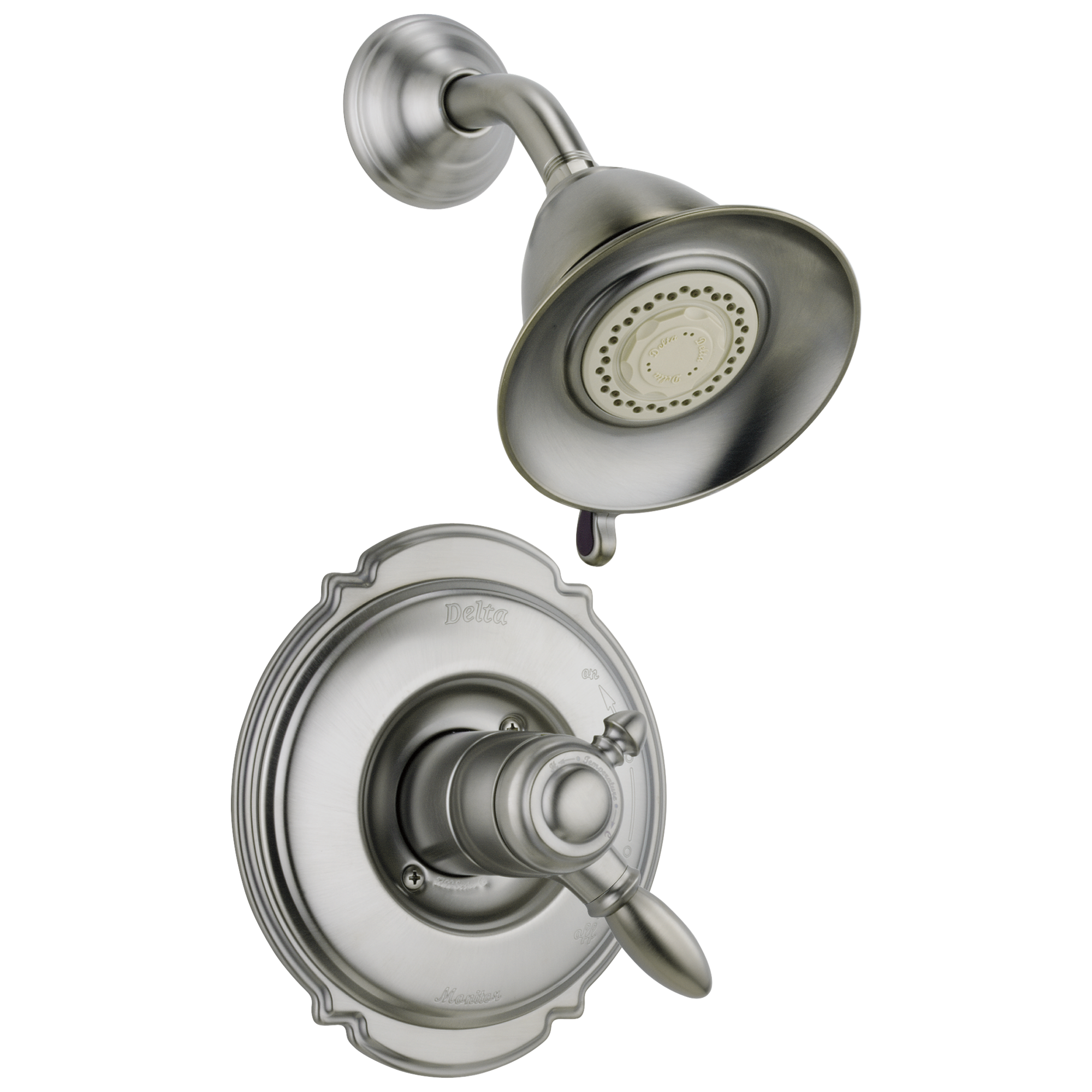

The Delta Faucet T17255-SS is a shower trim with a wall mount type and a lever handle. It features a 2-function pressure-balanced bath mixing valve made of forged solid brass. The shower head is 5-1/2 inches in diameter and made of forged solid brass, with a flow rate of 2.5 GPM at 80 PSI.

• Control volume and water temperature independently with two separate handles.
• Monitor Pressure Balance Valve keeps water temperature within a safe +/- 3 Deg F.
• Touch-Clean spray holes allow you to easily wipe away calcium and lime build-up.

Product Highlights

This shower trim kit includes back-to-back installation capability, adjustable maximum dial rotation, a temperature adjustment dial, and a decorative trim ring. MultiChoice Universal Rough Valve is excluded.

Product Information

Standard Information

• Brand: DELTA FAUCET
• Manufacturer Part Number: T17255-SS

Technical Specifications

• Applicable Standard: ADA, ASME A112.18.1, CSA B125.1, ASSE 1016, ICC/ANSI A117.1, EPA
• Color/Finish: Brilliance Stainless
• Exclusions: MultiChoice Universal Rough Valve
• Flow Rate: 2.5 GPM at 80 PSI
• Handle Material: Metal
• Handle Type: Lever
• Inclusions/Features: Back-to-Back Installation Capability, Maximum Dial Rotation Adjustable Between 90 and 180 Degree, Temperature Adjustment Dial, Touch-Clean Shower Head, Decorative Trim Ring
• Number Of Handles: 1
• Product Sub-Type: Shower Faucet
• Product Type: Faucets

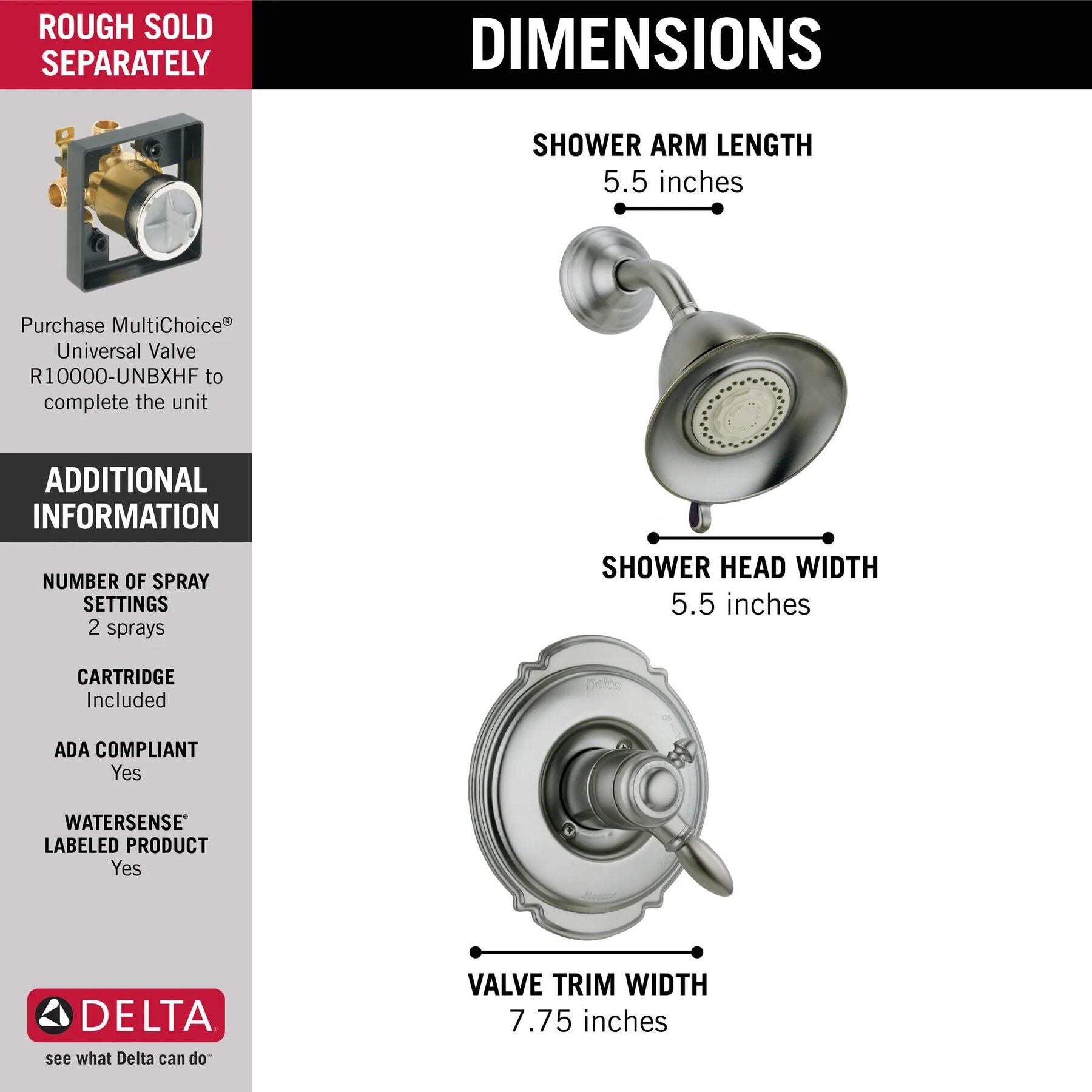

• Shower Head Diameter: 5-1/2 Inch
• Shower Head Material: Forged Solid Brass
• Type: Wall Mount
• Valve Material: Forged Solid Brass
• Valve Type: 2-Function Pressure Balanced Bath Mixing Valve
• Overall Height (in.): 9
