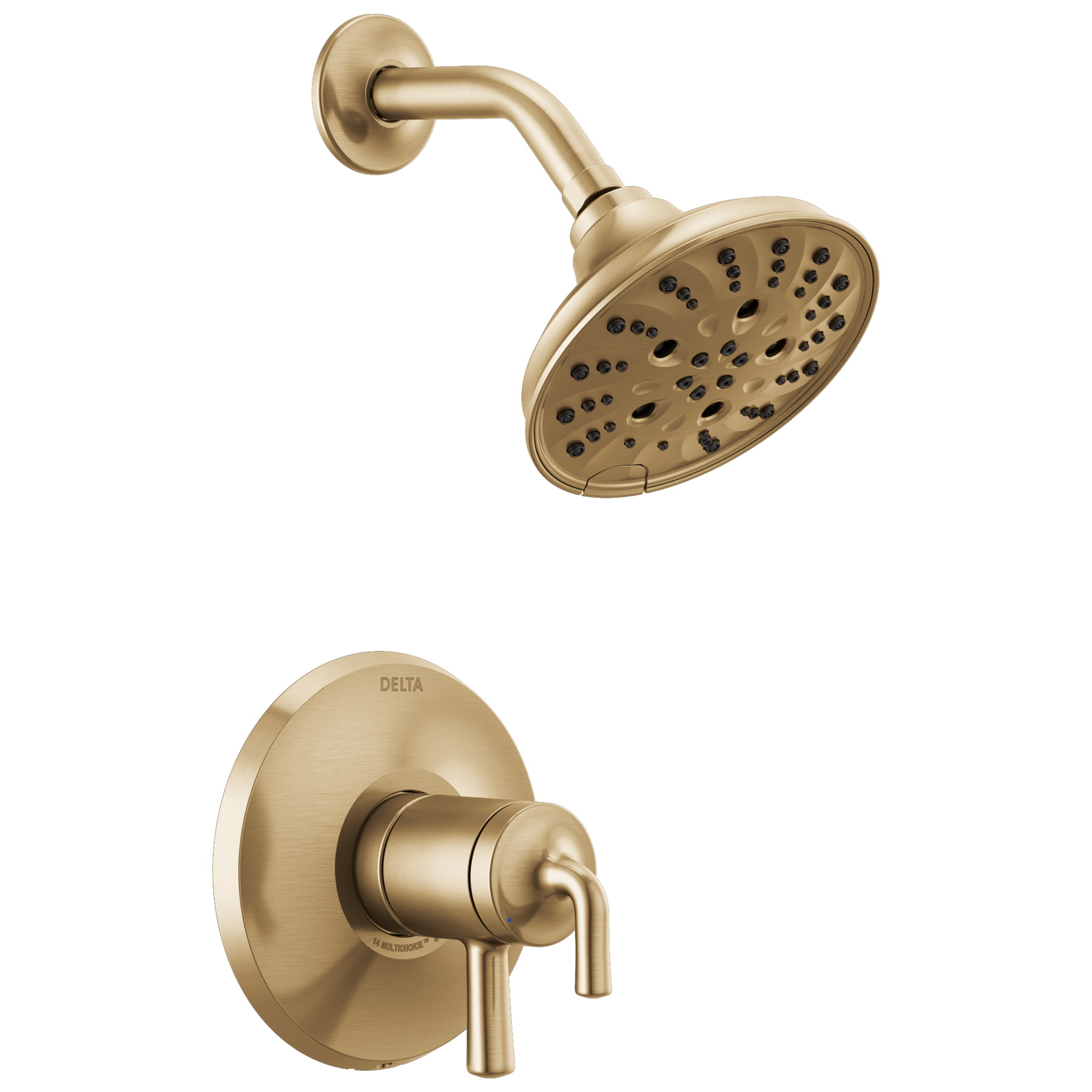

Delta Faucet T17233-CZ Monitor 17 Series Shower Trim 1.75 gpm

Product Description

The DELTA FAUCET T17233-CZ Monitor 17 Series Shower Trim features a clean, flowing design with separate handles for volume and temperature control. This shower trim provides a refined showering experience with Monitor Technology to protect from sudden temperature changes. It requires MultiChoice Universal Valve to complete the unit. Recommended rough-in kit R10000 series.

• Monitor pressure balance valve keeps water temperature within a safe ±3° F (±1.6° C).
• Spray settings include: H2OKinetic PowerDrench spray, Full Body spray, Massage spray, Full spray with Massage, and Pause.
• WaterSense labeled shower heads use at least 20% less water than the industry standard.

Product Highlights

The Delta shower trim offers multiple spray settings and a pause feature for convenience. It is WaterSense labeled and ADA compliant.

Product Information

Standard Information

• Brand: DELTA FAUCET
• Manufacturer Part Number: T17233-CZ

Technical Specifications

• Flow Rate: 1.75 gpm @ 80 psi, 6.6 L/min @ 552 kPa

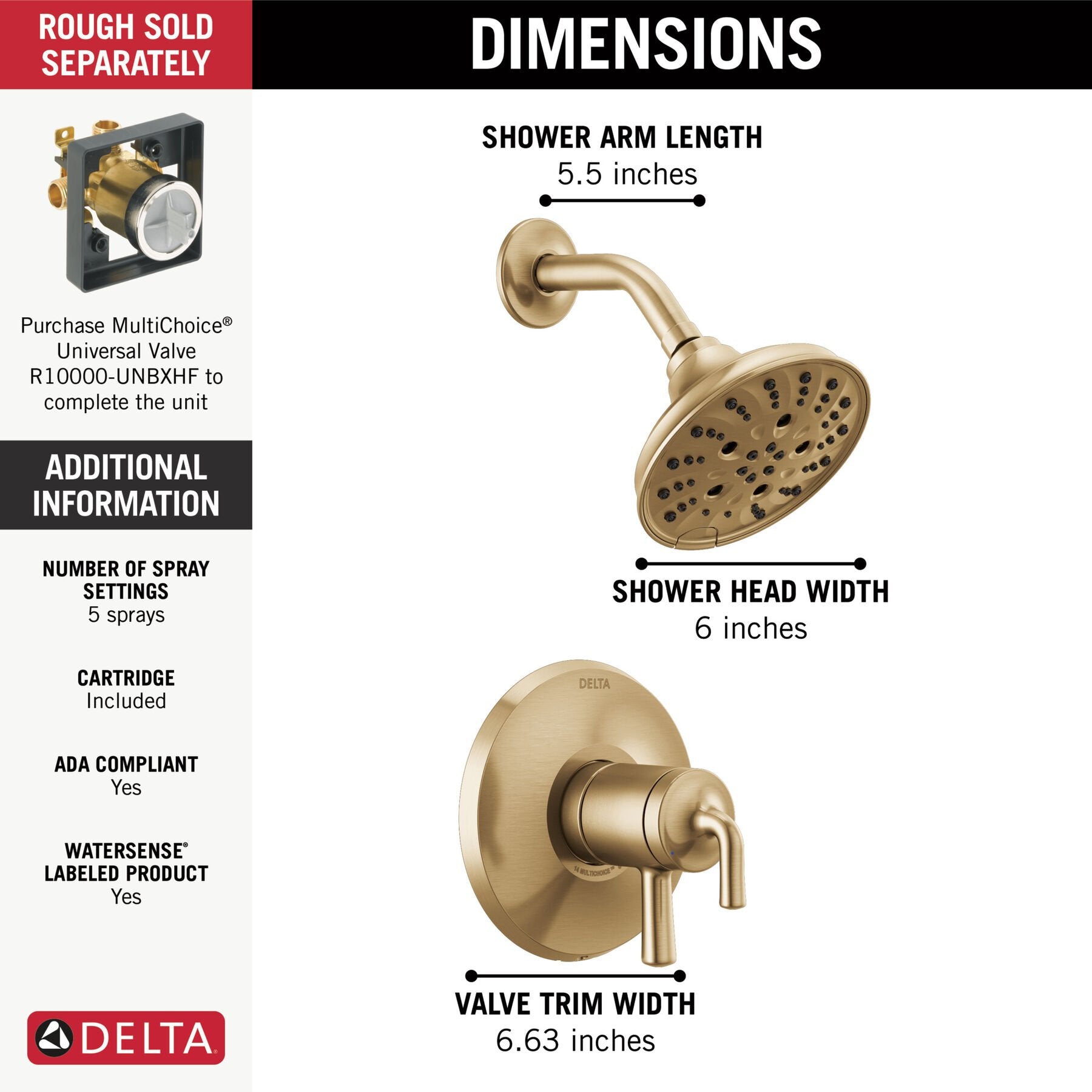

• Overall Height (in.): 6-5/8
• Valve Type: Pressure Balanced
• Series: Monitor 17 Series
• Collection: Kayra®
• Material: Brass
• Finish: Brilliance® Champagne Bronze
• Handles Included: Yes
• Number Of Spray Functions: 2
• Escutcheon Size: 6-5/8 in
• Mounting: Wall
• ADA Compliance: Yes
• Pressure Balanced: Yes
• Handle Type: Lever
• Number Of Handles: 2-Handle
• Number Of Spray Settings: 4
• WaterSense Labeled: Yes
• Shower Arm Included: Yes
• Faucet Type: Shower Faucet
• Shower Head Height: 5-1/2 in
• Valve Trim Height: 6-5/8 in
• Theme: Modern
• Shower Head Included: Yes
• Handle Style: Lever
• Shower Head Width: 5-1/2 in
• Spray Pattern: Full Body Spray, Massage Spray, Full Spray with Massage, Pause
• Handle Material: Zinc
• Spray Settings: 4
• Valve Included: No
• Spray Functions: Full Body Spray, Massage Spray, Full Spray with Massage, Pause
• Standards/Approvals: ADA Complaint, ASME A112.18.1/CSA B125.1, ASSE 1016, EPA WaterSense Certified, ICC/ANSI A117.1
• Includes: Cartridge and Diverter Tub Spout
• Domestic / Import: Domestic
• Manufacturer: Delta Faucet Company
• Manufacturer #: T17233-CZ
• Pressure Rating: 80 psi
• Type: Replaceable
• Certifications: CEC Compliant
• Shape: Round
• System Type: Pressure Balance
• Rough Included: No
• Handshower Included: No
