Delta Faucet t13220-ss Monitor 13 Shower Trim Stainless

Product Description

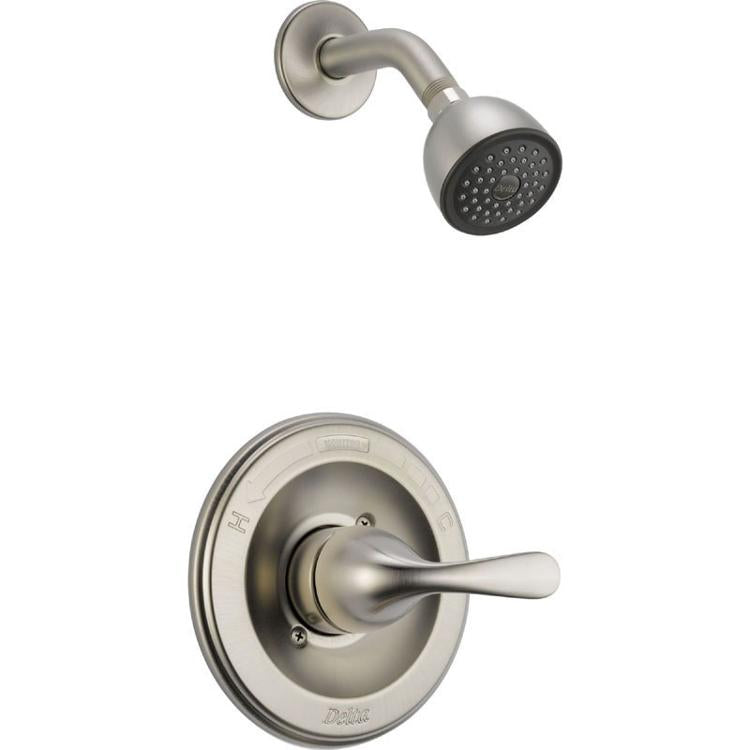

The DELTA FAUCET t13220-ss is a single-handle pressure balancing shower trim kit in a Brilliance Stainless finish, designed for wall-mount installation in residential and light commercial shower systems. The trim integrates with Delta's Monitor 13 Series valve body and maintains water temperature within plus or minus 3 degrees F, protecting occupants from sudden hot or cold pressure shifts. The showerhead is fabricated from solid brass with a 2-5/8 inch diameter and soft rubber spray holes that allow easy removal of calcium and lime buildup by hand. Flow rate is rated at 2 GPM at 80 psi. This is a trim kit only — a MultiChoice Universal Rough-In valve must be ordered separately to complete the assembly.

This trim kit suits residential and commercial shower installations where pressure balancing protection is required. The lever handle is field adjustable to limit rotation into the hot water zone, adding an additional layer of scald protection. The unit supports back-to-back installation, making it practical in multi-unit residential builds or hotel environments. It meets ADA requirements and complies with ASME A112.18.1/CSA B125.1, ASSE 1016, ICC/ANSI A117.1, CALGreen, and EPA WaterSense standards, covering most U.S. jurisdictions for both residential and commercial applications.

Key Features

• Pressure balancing mixing valve holds water temperature within plus or minus 3 degrees F to reduce scald risk
• WaterSense certified at 2 GPM at 80 psi for water conservation compliance
• Fabricated solid brass lever handle and showerhead construction
• Soft rubber spray holes allow finger-wipe removal of mineral deposits
• Field adjustable handle rotation limiter for hot water zone restriction
• Back-to-back installation capable for multifamily and commercial layouts
• ADA compliant single-lever operation

Compatibility

Designed for use with the Delta MultiChoice Universal Rough-In valve body, which must be purchased separately to complete the shower unit. This trim kit is not compatible with other manufacturer rough-in valves.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and IPC requirements. Shut off the water supply to the shower circuit before beginning trim installation. Do not overtighten brass fittings; follow the valve body manufacturer's torque guidance as printed in the rough-in installation instructions included with that component. Verify the handle rotation limiter adjustment after installation to confirm the hot water limit stop is set to the desired maximum temperature.

Technical Specifications

• Product Type: Shower Faucet Trim
• Mount Type: Wall Mount
• Valve Type: Pressure Balancing Mixing Valve
• Handle Type: Lever
• Number of Handles: 1
• Handle Material: Fabricated Solid Brass
• Showerhead Material: Fabricated Solid Brass
• Showerhead Diameter: 2-5/8 inches
• Showerhead Height: 2-3/4 inches
• Flow Rate: 2 GPM at 80 psi
• Finish: Brilliance Stainless
• Temperature Control: Plus or minus 3 degrees F
• Applicable Standards: ADA, ASME A112.18.1/CSA B125.1, ASSE 1016, ICC/ANSI A117.1, EPA WaterSense, CALGreen
• Warranty: Lifetime Limited (residential, material, workmanship, and finish); 5 Year Limited (commercial, industrial, and business applications)

Standard Information

• Brand: DELTA FAUCET
• Manufacturer Part Number: t13220-ss
