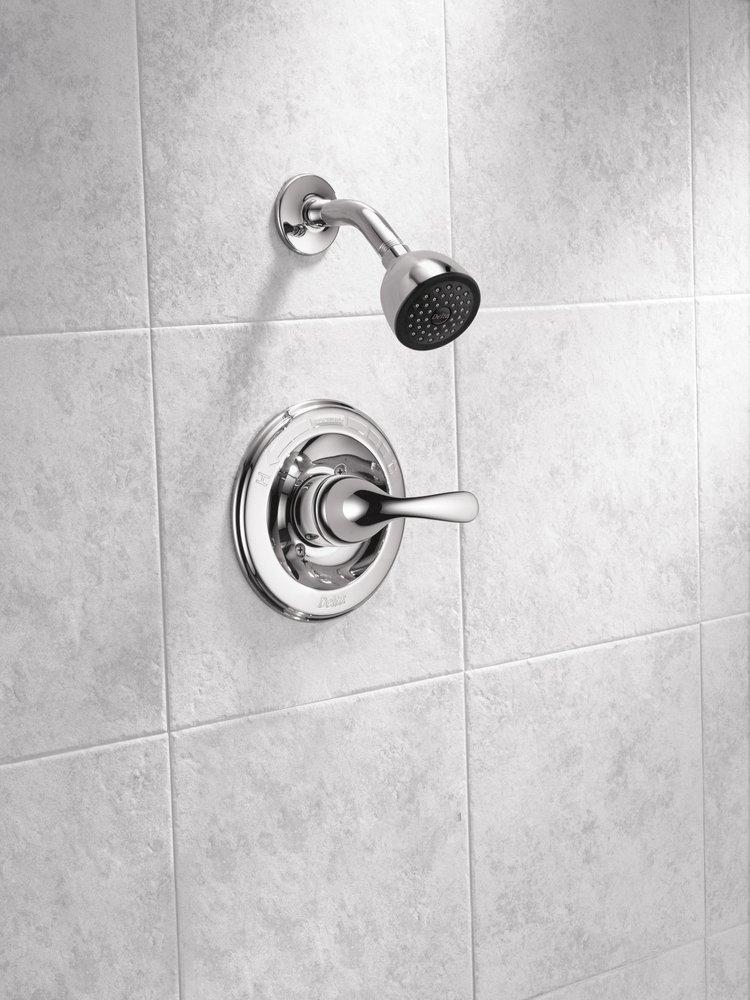

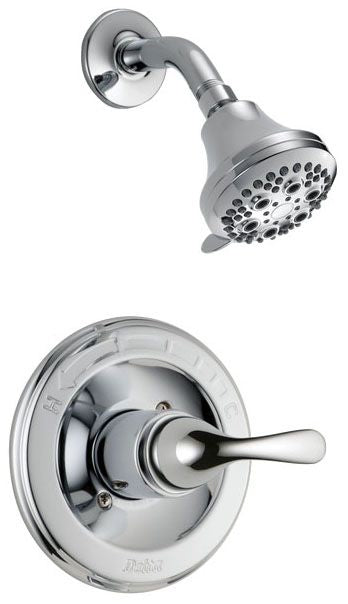

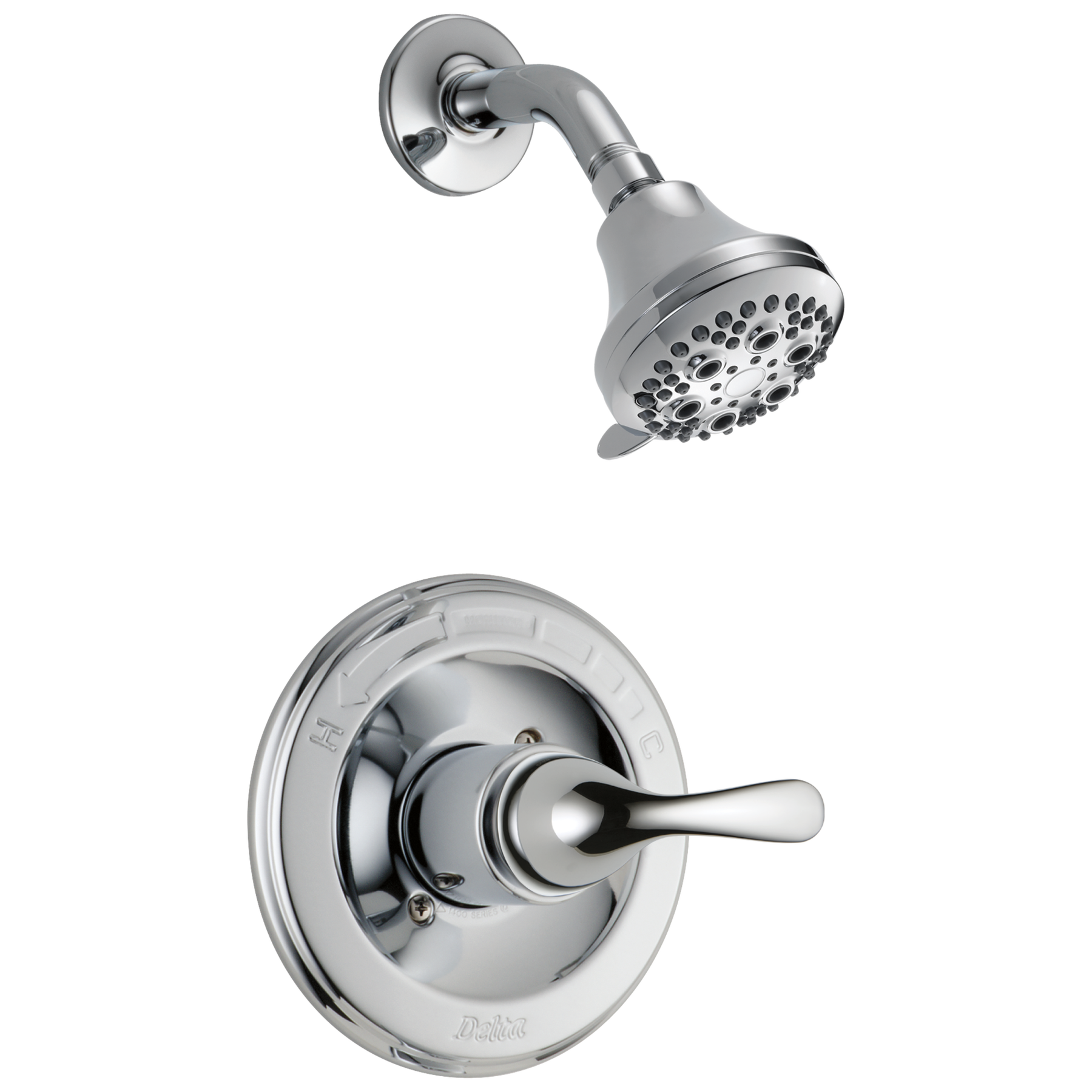

Delta Faucet T13220 Classic Monitor 13 Series Shower Trim 1.175 GPM

Product Description

The DELTA FAUCET T13220 Classic Monitor 13 Series Shower Trim is a wall-mount shower faucet designed for a single-function pressure-balanced bath mixing valve. It features a lever handle and a forged solid brass valve and shower head. This trim kit delivers a flow rate of 1.175 GPM at 80 PSI and includes back-to-back installation capability with a 120-degree handle rotation. It is compatible with R10000 Series MultiChoice Universal Rough Valve Bodies.

• Monitor Pressure Balance Valve maintains water temperature within a safe +/- 3 Deg F (+/- 1.6 Degrees C), protecting against sudden changes in water pressure.
• Full body spray provides a steady, full-coverage spray suitable for various shower needs.
• Soft, rubber Touch-Clean spray holes allow for easy wiping away of calcium and lime build-up from the shower head spray face.

Product Highlights

This ADA compliant shower trim ensures consistent water temperature and easy maintenance, offering a full body spray experience.

Product Information

Standard Information

• Brand: DELTA FAUCET
• Manufacturer Part Number: T13220

Technical Specifications

• Installation Type: Wall Mount
• Handle Type: Lever
• Number of Handles: 1
• Handle Material: Metal
• Valve Type: 1-Function Pressure Balanced Bath Mixing Valve
• Valve Material: Forged Solid Brass
• Shower Head Diameter: 2-5/8 Inch
• Shower Head Material: Forged Solid Brass
• Finish: Chrome Plated
• Flow Rate: 1.175 GPM at 80 PSI
• Exclusions: MultiChoice Universal Rough Valve
• Standards: ADA, ASME A112.18.1, CSA B125.1, ASSE 1016, ICC/ANSI A117.1, EPA
• Shower Head Height: 2-3/4 Inch
• Trim Diameter: 7 Inch
• Compatible Valve Series: R10000 Series MultiChoice Universal Rough Valve Body
• Product Type: Shower Faucet
• Series: 13
• Overall Height: 9-1/2 in.
• Shower Head Shape: Round
• Spray Pattern: Full Body, Massaging, Full Spray with Massage
• Number of Spray Functions: 3
• Shower Arm Length: 6 Inch
• Included Components: Escutcheon, Mounting Hardware and Handle
• Additional Features: Back-to-Back Installation, 120 Degree Handle Rotation, Hot/Cold Indicator
