Delta Faucet R22000 1/2 x 1/2, MPT/C x MPT/C, 8.3 GPM, Forged Brass, Universal, Integrated, 3-Port, Rough-In, 1-Piece Shower Diverter Valve

Product Description

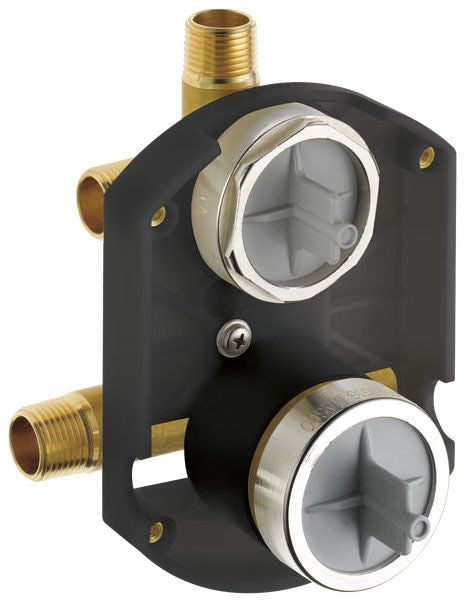

The Delta Faucet R22000 is a universal integrated shower diverter valve designed for seamless shower installations. It features a one-piece forged brass body and an inlet size of one-half inch. The valve operates with a flow rate of eight point three gallons per minute at eighty PSI. The R22000 is compatible with various shower trim kits, providing flexibility for custom shower designs.

• Monitor pressure balance valve ensures stable water temperature.
• Integrated three-port rough-in for easy installation.
• Test cap and plug included for pressure testing.

Product Highlights

This diverter valve promotes safe temperature control and is designed for efficient performance and reliability.

Product Information

Standard Information

• Manufacturer: Delta Faucet
• Material: Forged Brass

Technical Specifications

• Inlet Size: 1/2 inch
• Outlet Connection: 1/2 inch Male Threaded/Female Soldered
• Flow Rate: 8.3 GPM at 80 PSI
• Applicable Standard: ASME A112.18.1/CSA B125.1

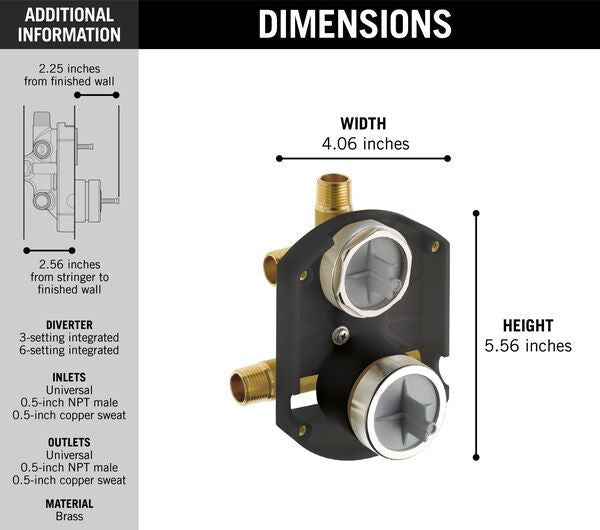

• Dimensions: Width 4-1/16 inch
• Inclusions: Test Cap, Plug
• Installation: Back-to-back capability available
