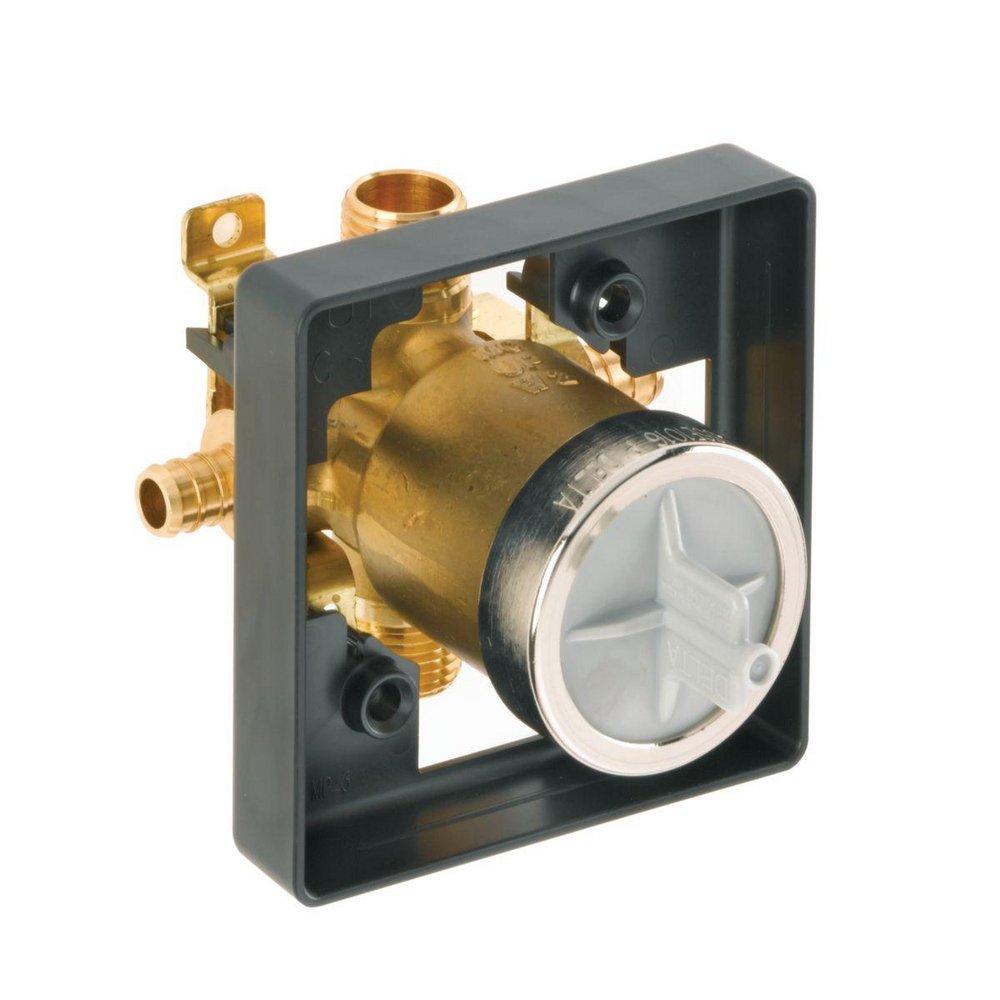

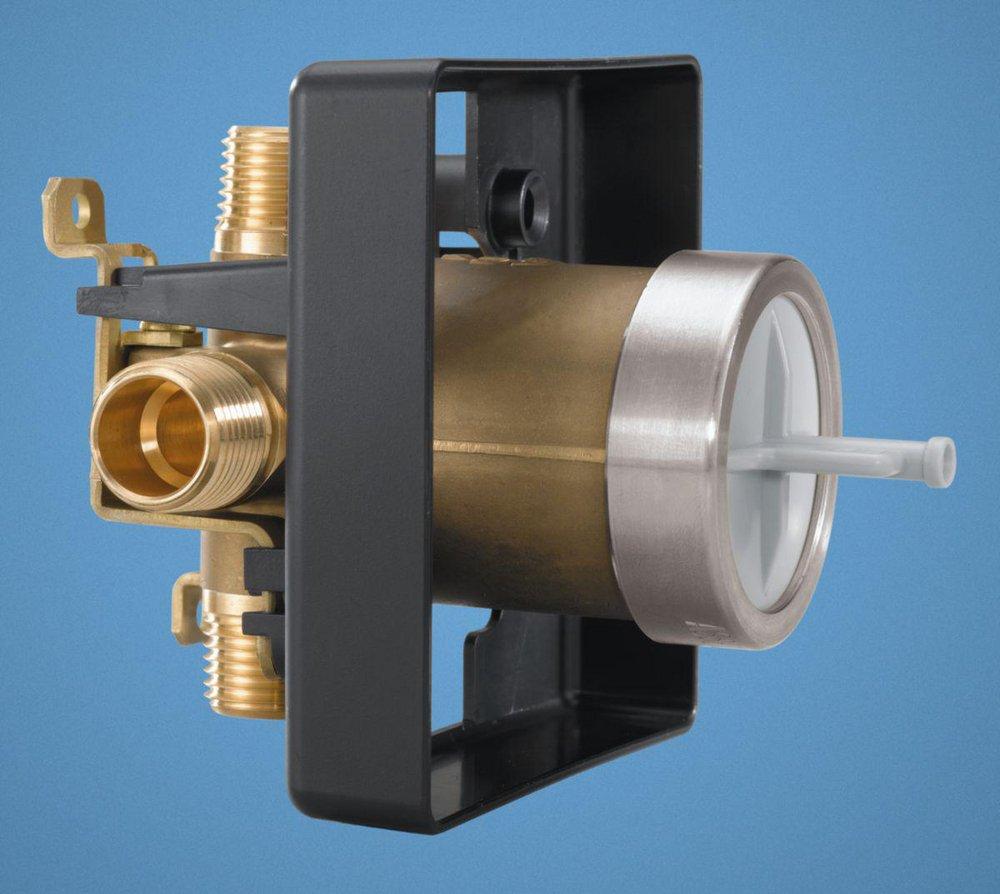

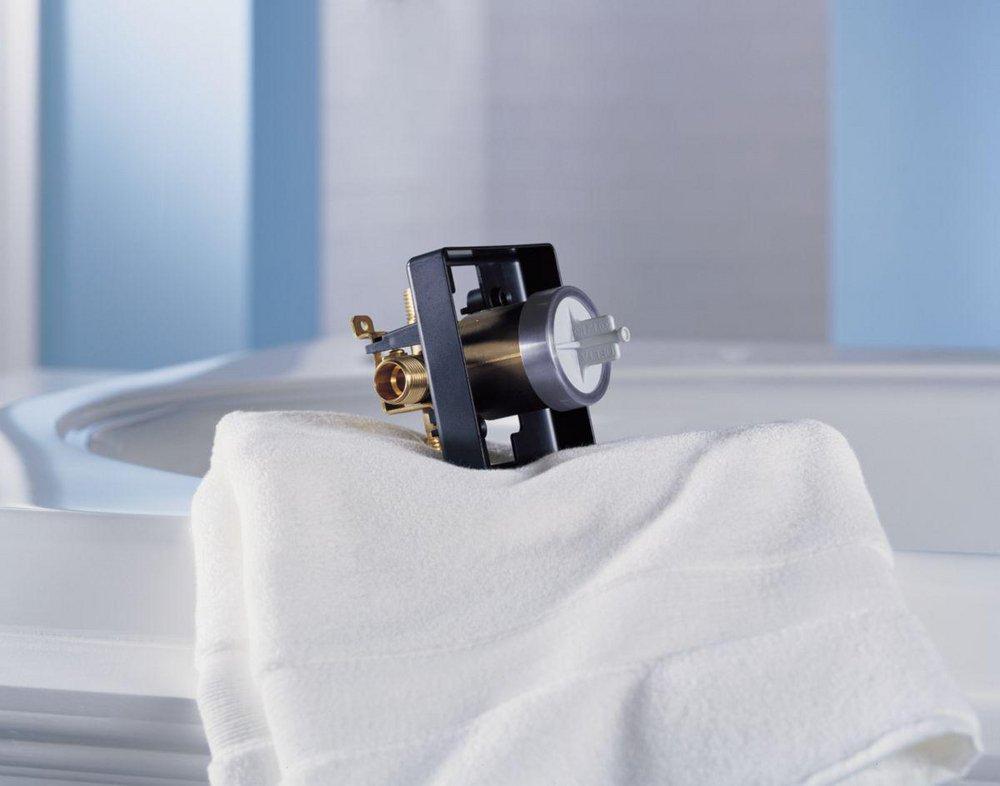

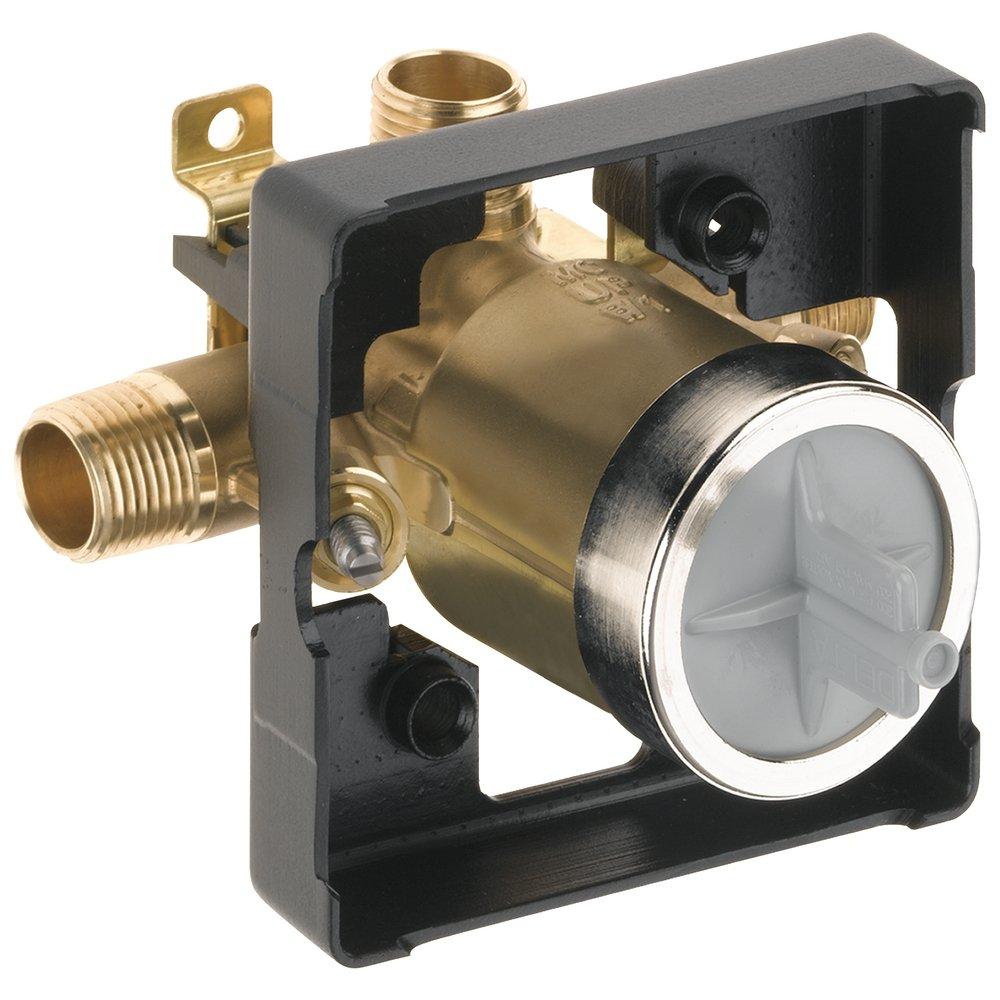

Delta Faucet R10000-UNWSHF MultiChoice® 1/2 in MPT Connection Thermostatic Pressure Balancing Universal Rough Valve Body with Stops

Product Description

The Delta Faucet R10000-UNWSHF is designed for use with MultiChoice® valves. This universal rough-in valve body is compatible with both single and dual function trims. It is a high-flow valve ideal for shower-only applications.

• High flow rate for efficient shower performance.
• Includes a mounting bracket to prevent movement during installation.
• Back-to-back capability for versatile installation options.

Product Highlights

This thermostatic valve body allows for easy installation and features a blocked tub port, removing the need for additional plugs during setup.

Product Information

Standard Information

• Brand: Delta Faucet
• MPN: R10000-UNWSHF

Technical Specifications

• Connection Size: 1/2 in
• Connection Type: Female Sweat MNPT
• Height: 4-7/8 in
• Length: 4 in
• Width: 5-1/16 in
• Pressure Rating: 200 psi Air / 300 psi Water
• Material: Forged Brass
• Series: MultiChoice®
