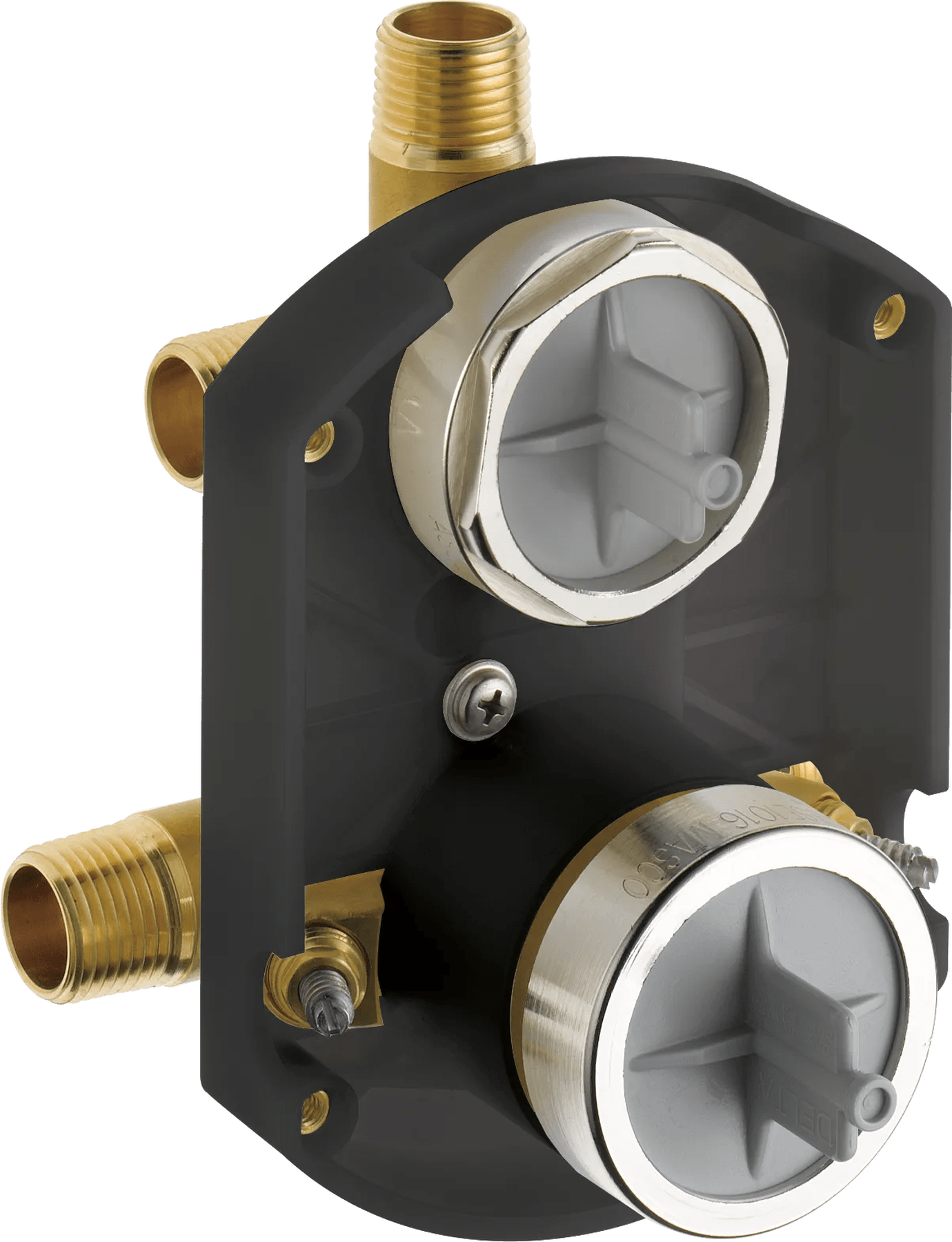

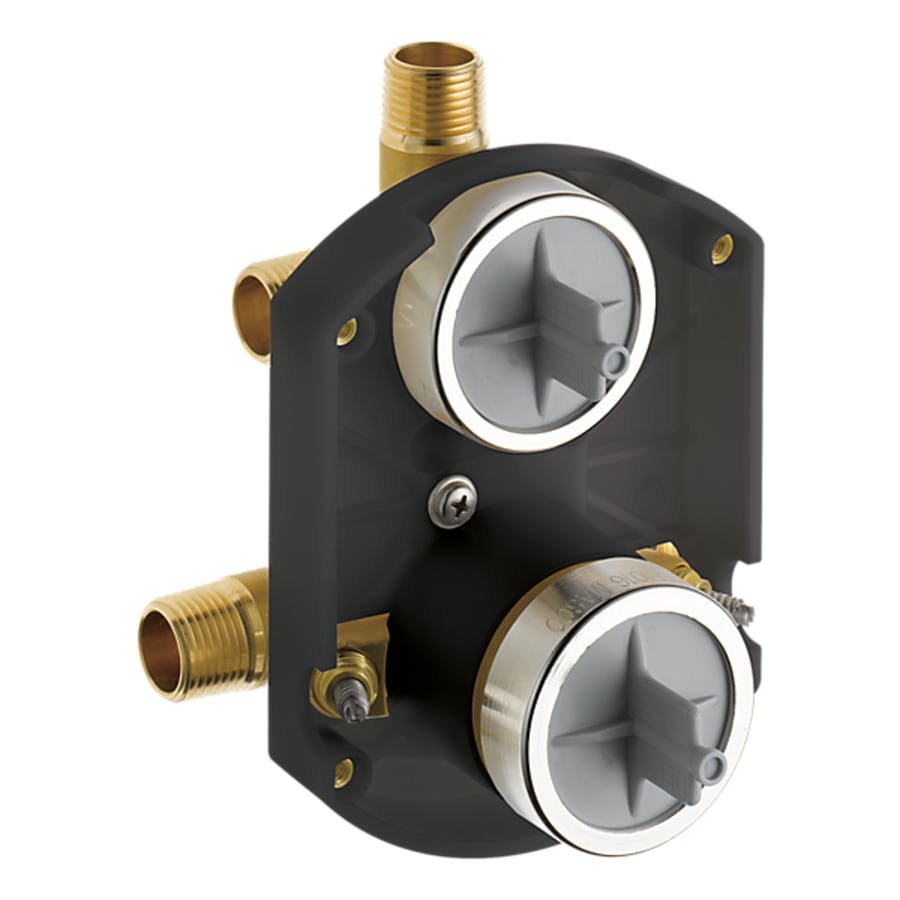

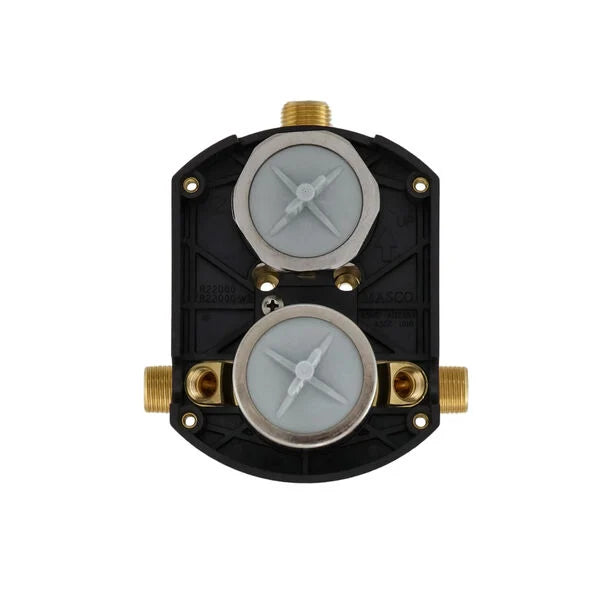

Delta Faucet DLR22000-WS MultiChoice Universal Integrated Shower Diverter Rough Universal Inlets / Outlets

Product Description

The DELTA FAUCET DLR22000-WS MultiChoice Universal Integrated Shower Diverter consolidates custom shower design, eliminating the need for an additional diverter valve. It provides flexibility to select the custom shower functionality. The MultiChoice Universal system allows upgrading style and function later, saving time and money on future renovations, as there’s no need to alter plumbing behind the wall.

• Consolidates custom shower design with a streamlined style.
• Offers flexibility in selecting preferred custom shower functionality.
• Saves time and money on future renovation updates without altering plumbing.

Product Highlights

This integrated shower diverter rough-in kit is designed for shower-only installations.

Product Information

Standard Information

• Brand: DELTA FAUCET
• Manufacturer Part Number: DLR22000-WS

Technical Specifications

• Connection Type: Universal fittings
• Overall Height (in.): 6-1/16
• Valve Type: Pressure Balanced, Thermostatic
• Material: Brass
• Exterior Finish: Brass
• Inlet Connection Size: 0.5 Inches
• Inlet Connection Type: Female Iron Pipe
• Outlet Connection Type: NPT and Copper
• Number of Ports: 3
• Outlet Connection Size: 0.5 Inches
• Specification Met: tub
• Thread Type: NPT
• Connector Type: Threaded
• Thread Size: 0.5 inches
• Width: 4-1/16"
• Height: 5-9/16"
• Depth: 2-1/4"
• Max Wall Thickness: 1-1/8" (Thick wall kit required for thicker installations)
• Water Connection: 1/2"
• Diverter Included: Yes
• Handles Included: No
• Integrated Diverter: Yes
• Service Stops Included: Yes
• Trim Included: No
• Volume Control: Yes
• Installation Type: Wall Mounted
• Number of Functions: 3, 6
• Scald Guard: Yes
• Manufacturer Technology: Delta Smart Solutions, MultiChoice Universal Valve
• Collection: MultiChoice
• Approved for Commercial Use: Yes
