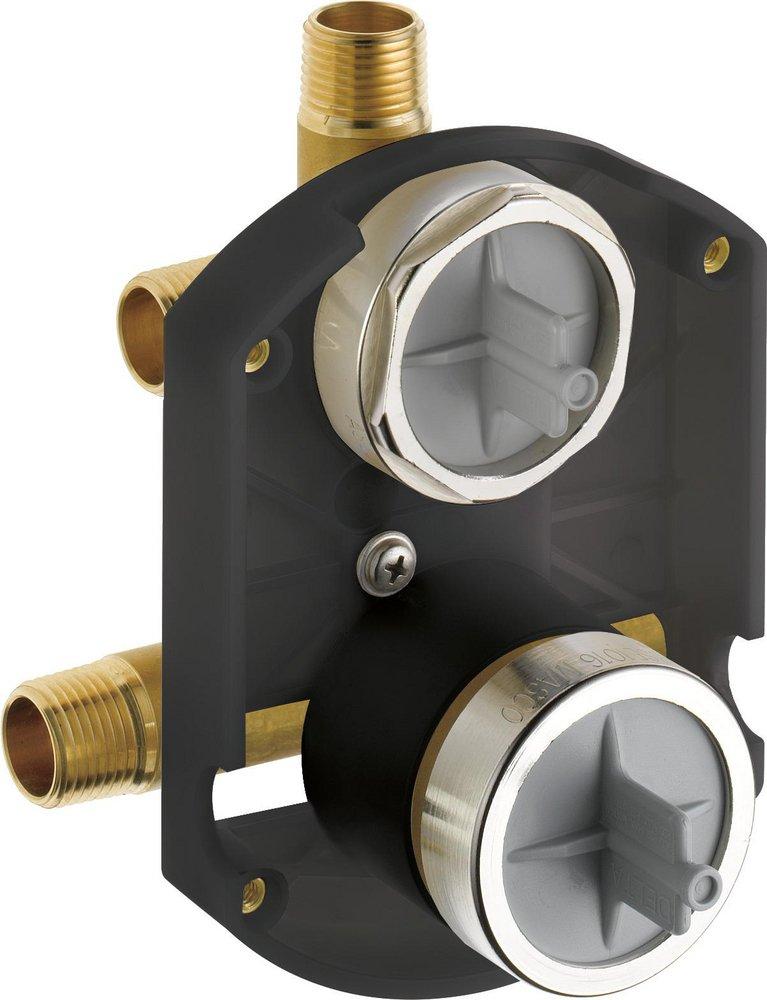

Delta Faucet dlr22000 Tub Shower Rough-in Valve 1/2 Inch

Product Description

The DELTA FAUCET dlr22000 is a 1/2 inch universal rough-in valve body designed for tub and shower installations requiring a pressure-balancing valve with an integrated shower-only diverter. Built from one-piece forged brass, this valve maintains water temperature within 3 degrees F of the set point, protecting against sudden shifts in hot or cold water supply pressure. The valve accepts MNPT and female sweat connections, giving installers flexibility during rough-in. A licensed plumber handles installation during the rough-in phase of construction or remodel. Trim kit is sold separately.

This rough-in valve suits residential tub and shower applications where a dedicated shower diverter is required within a single valve body. The one-piece forged valve body supports back-to-back installation, making it a practical choice for shared plumbing walls between two bathrooms. The integrated diverter routes flow to the showerhead only, so no separate diverter valve is needed in the wall. The valve body does not include built-in stops, which should be factored into the rough-in plan.

Key Features

• Pressure-balancing valve maintains temperature within 3 degrees F during supply pressure changes
• One-piece forged brass valve body for durability and leak resistance
• Integrated shower-only diverter eliminates the need for a separate diverter valve
• Supports back-to-back installation on shared plumbing walls
• Accepts MNPT and female sweat connections for rough-in flexibility
• No built-in stops — compatible with external stop configurations
• ASME A112.18.1 and CSA certified

Compatibility

Designed as an OEM-style rough-in valve for use with compatible DELTA FAUCET MultiChoice tub and shower trim kits, sold separately. Trim kit must be specified and purchased independently to complete the installation.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and the International Plumbing Code (IPC). Shut off the water supply to the work area and depressurize the lines before beginning rough-in. The valve body must be secured to framing at the correct depth to align with the finished wall surface per the trim kit requirements. Do not apply excessive heat near the valve body when making sweat connections, as this may damage internal components.

Technical Specifications

• Valve Size: 1/2 inch
• Connection Type: MNPT and Female Sweat
• Faucet Valve Type: Pressure Balancing
• Flow Rate: 8.3 gpm
• Depth: 4.8125 inches
• Height: 6.06 inches
• Valve Body Material: Brass
• Built-in Stops: No
• ASME Certification: ASME A112.18.1
• CSA Certified: Yes

Standard Information

• Brand: DELTA FAUCET
• Manufacturer Part Number: dlr22000
