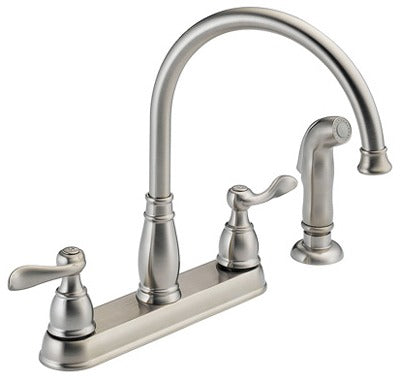

Delta Faucet Co 21996LF-SS Kitchen Faucet 2 Handle Ss

Product Description

The DELTA FAUCET CO 21996LF-SS is a two-handle kitchen faucet with spray from the Windemere Series, finished in stainless steel. It is designed for deck-mount installation on four-hole sink configurations with 8-inch centers. The spout stands 11-5/8 inches high and swings 360 degrees, delivering full coverage across the sink basin. Flow rate is 2.2 GPM at 60 psi. Metal curved wing handles feature 1/4-inch turn stops for controlled shutoff. This faucet is installed by licensed plumbers and experienced finish plumbers in residential kitchens.

The 21996LF-SS is intended for residential kitchen installations on four-hole deck-mount sinks with 8-inch center spacing. The swivel spout and integrated spray make it suitable for standard single or double basin sink setups. The antisiphon device is built into the valve body, eliminating the need for a separate backflow component. Maximum deck thickness supported is 1 inch. The aerator sits 6-3/4 inches above the deck. Shanks are 1/2-inch to 14-inch NPSM threaded for standard supply line connections.

Key Features

• Stainless steel finish with lifetime faucet finish warranty to the original purchaser
• 360-degree swivel spout with 11-5/8 inch spout height
• 2.2 GPM flow rate at 60 psi with integrated aerator
• Metal curved wing handles with 1/4-inch turn stops
• Built-in antisiphon device as part of the valve body
• ADA compliant and meets California and Vermont low-lead requirements

Compatibility

Designed for four-hole deck-mount sink applications with 8-inch centers and a maximum deck thickness of 1 inch. Shanks are 1/2-inch to 14-inch NPSM threaded for connection to standard supply lines.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and IPC guidelines. Shut off the water supply at the angle stops or main shutoff before beginning work. Verify sink deck thickness does not exceed 1 inch before mounting. Do not overtighten the mounting hardware, as this can crack the sink deck or damage the faucet body.

Technical Specifications

• Series: Windemere
• Finish: Stainless Steel
• Handle Count: 2
• Mount Type: Deck Mount
• Sink Holes Required: 4
• Center Spacing: 8 inches
• Spout Height: 11-5/8 inches
• Spout Reach (Aerator to Deck): 6-3/4 inches
• Spout Swing: 360 degrees
• Flow Rate: 2.2 GPM at 60 psi
• Shank Thread: 1/2 inch to 14 inch NPSM
• Max Deck Thickness: 1 inch
• Handle Material: Metal
• Certifications: ADA Compliant, CA and VT Low Lead Law
• Warranty: Lifetime faucet finish warranty to original purchaser
• Weight: 14.8 pounds

Standard Information

• Brand: DELTA FAUCET CO
• Manufacturer Part Number: 21996LF-SS
