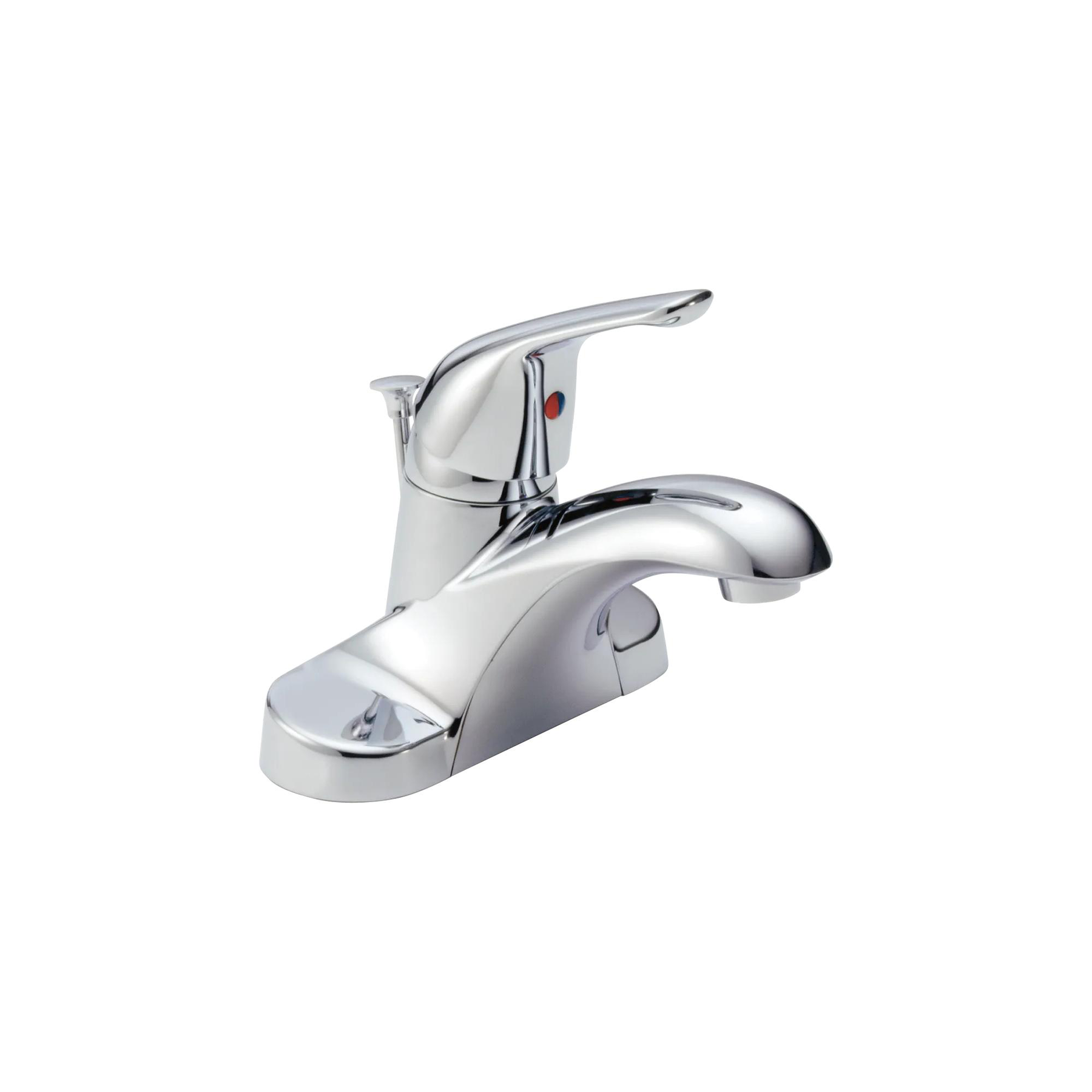

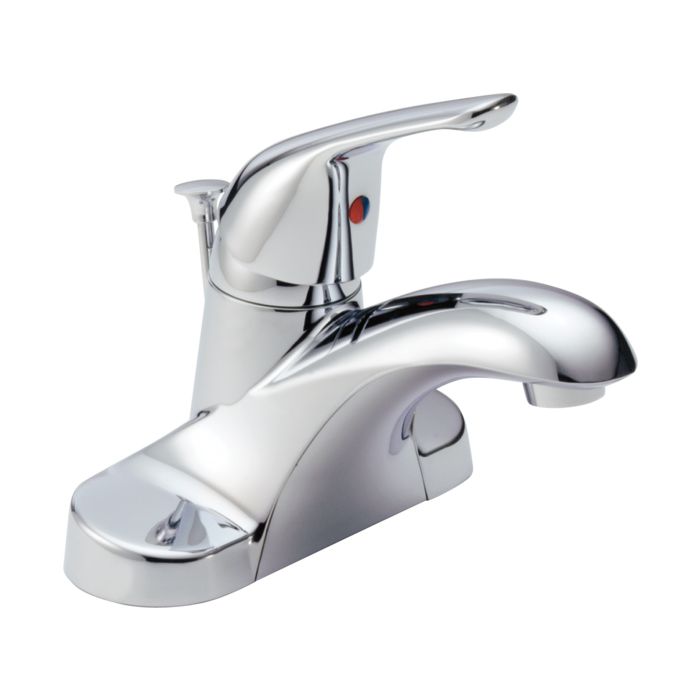

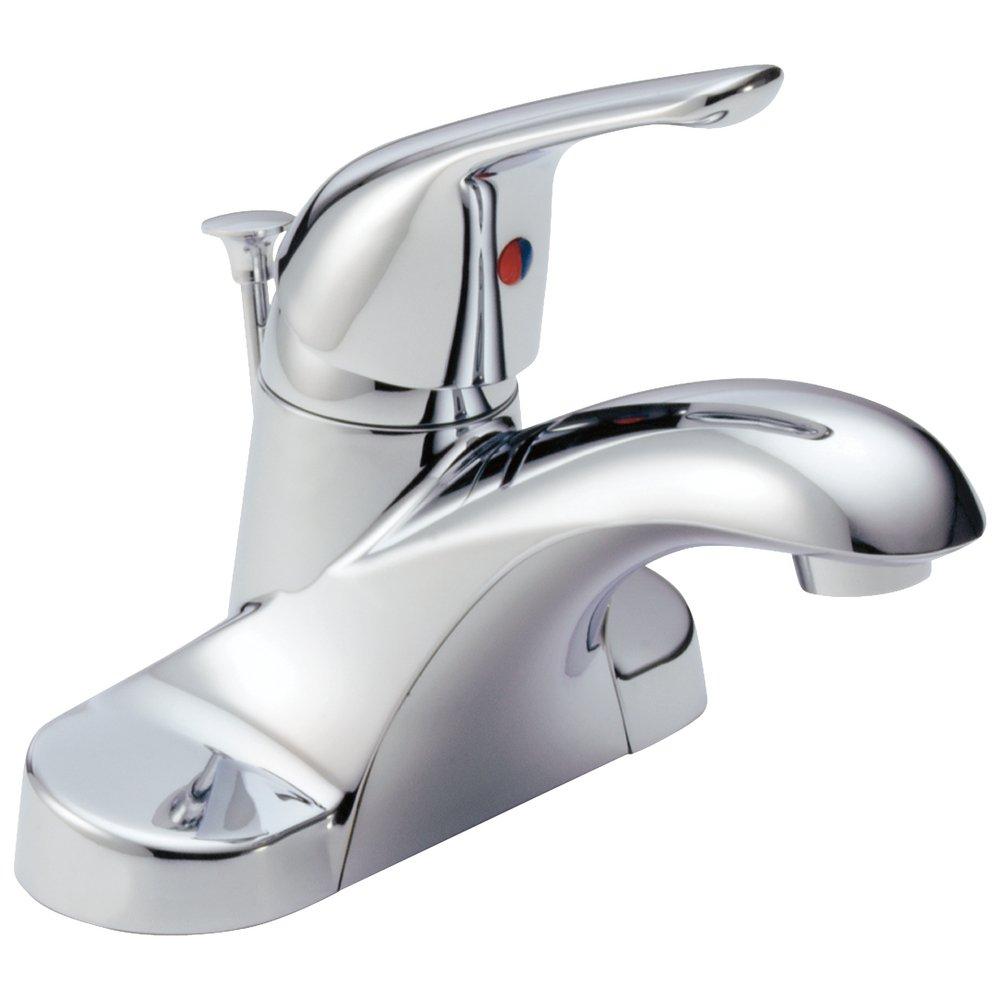

Delta Faucet B510LF Single Handle Deck Mount Centerset Lavatory Faucet With Pop-Up 1.2 GPM 4 Inch Center

Product Description

The DELTA FAUCET B510LF is a 1-handle, deck mount, centerset lavatory faucet designed for bathroom sinks. Constructed from fabricated solid brass, it features a 4-inch faucet hole center and a flow rate of 1.2 GPM at 60 PSI. This faucet is suitable for 3-hole installations and includes a metal pop-up drain with a plated flange and stopper, ensuring efficient water control and durability for daily use.

• Control mechanism is the rotating stainless steel ball type with replaceable non-metallic seats.
• Single handle lavatory faucets for exposed mounting on 3-hole sinks with 4 inch centers.
• All operating parts shall be replaceable from the top.

Product Highlights

Water efficient, ADA compliant, and WaterSense certified.

Product Information

Standard Information

• Brand: DELTA FAUCET
• Manufacturer Part Number: B510LF
• Country of Origin: Vietnam

Technical Specifications

• Applicable Standard: ADA, ASME A112.18.1/CSA B125.1, ASME A112.18.2/CSA B125.2, ICC/ANSI A117.1, EPA
• Body Material: Fabricated Solid Brass
• Finish: Chrome Plated
• Hole Center: 4 Inch
• Flow Rate: 1.20 gpm @ 60 psi, 4.5 L/min @ 414 kPa
• Features Included: 3-Hole Installation, Control Mechanism, Stainless Steel Plate, Non-Metallic Seat, Metal Pop-Up Drain with Plated Flange and Stopper, Washerless Ball Valve
• Inlet Connection: Male Threaded
• Inlet Size: 1/2 Inch-14 NPSM
• Spout Dimensions: 7-1/8 Inch Height x 2-5/8 Inch Clearance x 4-1/4 Inch Reach
• Faucet Type: 1-Handle, Deck Mount, Centerset
• Used On Item: Bathroom Sink
• Deck Thickness: 1-1/4 Inch
• Lead Compliant: Yes
• Exclusions: Lift Rod Hole
• UPC: 034449624480
• Overall Height: 7-1/8 inches
• Valve Type: Washerless Ball Valve
• Installation Type: 3-hole 4 inch centerset installation
• Length: 6 Inch
• Width: 6.13 Inch
• Collection: Foundations
• WaterSense Certified: Yes
• Handle Type: Single Handle Lever
• Number of Handles: 1
• Number of Holes: 3
• CEC Certified: Yes
• CALGreen Certified: Yes
• ADA Compliant: Yes
