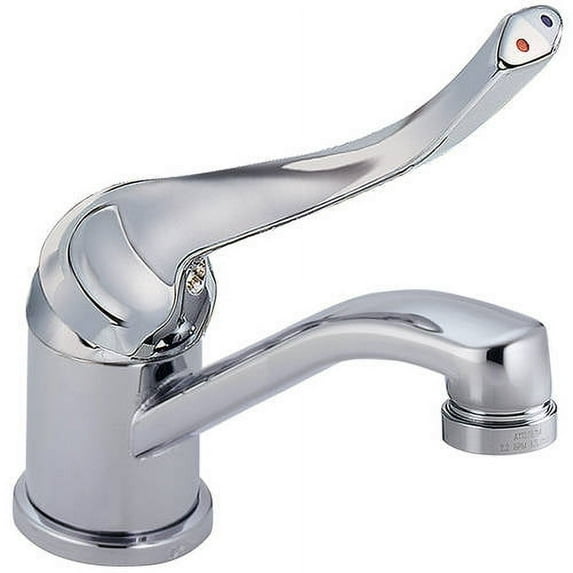

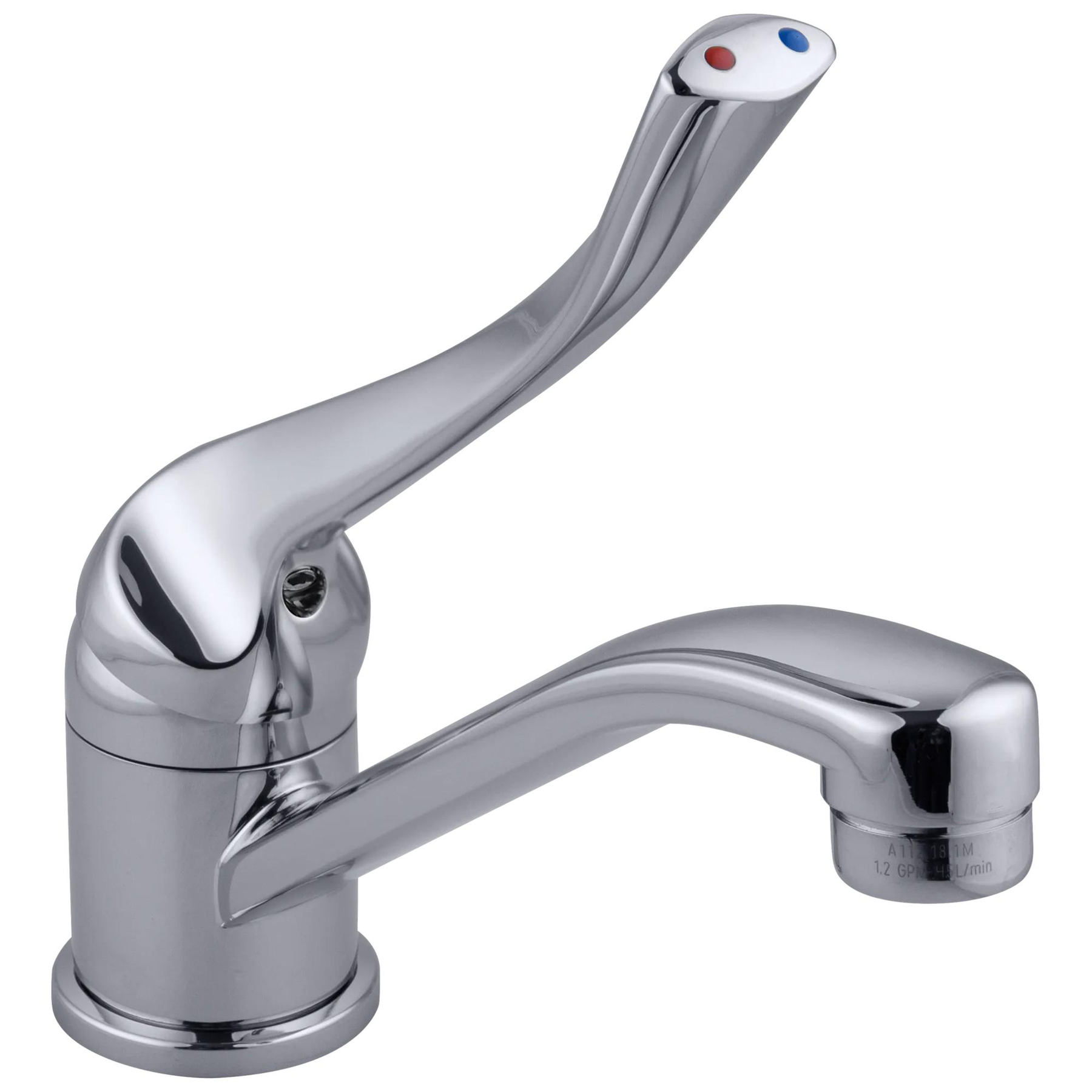

Delta Faucet 570LF-06ELH single handle lavatory faucet 6 inch spout 7.5 inch height

Product Description

The DELTA FAUCET 570LF-06ELH is a commercial single handle basin faucet designed for performance and durability. It features a vandal-resistant elbow handle and red/blue indicators for hot and cold water. This faucet is suitable for single-hole, deck-mount installation, with a 6-inch spout length and an overall height of 7.5 inches. It operates manually with a stainless steel ball valve, delivering a flow rate of 1.20 gallons per minute.

• Single hole installation for deck-mount applications.
• Features a vandal-resistant elbow handle with red/blue indicators.
• Meets Americans with Disabilities Act (ADA) standards.

Product Highlights

Commercial-grade single handle basin faucet with all-brass construction.

Product Information

Standard Information

• Brand: DELTA FAUCET
• Manufacturer Part Number: 570LF-06ELH

Technical Specifications

• Brand: DELTA FAUCET
• MPN: 570LF-06ELH
• Maximum Deck Thickness: 1-9/16"
• Supply Tube Type: Straight, staggered with 1/2" IPS adapters
• Connection Size: 1/2" IPS
• Flow Rate: 1.20 gpm @ 60 psi, 4.5 L/min @ 414 kPa
• Overall Height: 7-1/2 in.
• Control Box Option: N/A
• Installation Type: Single Hole
• Mounting Type: Deckmount
• Valve Type: Stainless Steel Ball
• Recommended Use: Bathroom
• Finish: Chrome
• Material: Brass
• Number of Handles: 1
• Included Components: Handle
• Handle Type: Lever
• Spout Design: Standard
• Spout Reach: 6 Inches
• Operation: Manual
• Deck to Outlet: 3.5 inches
• Spout Type: Low Arc
• Product Type: Bathroom Sink Faucet
