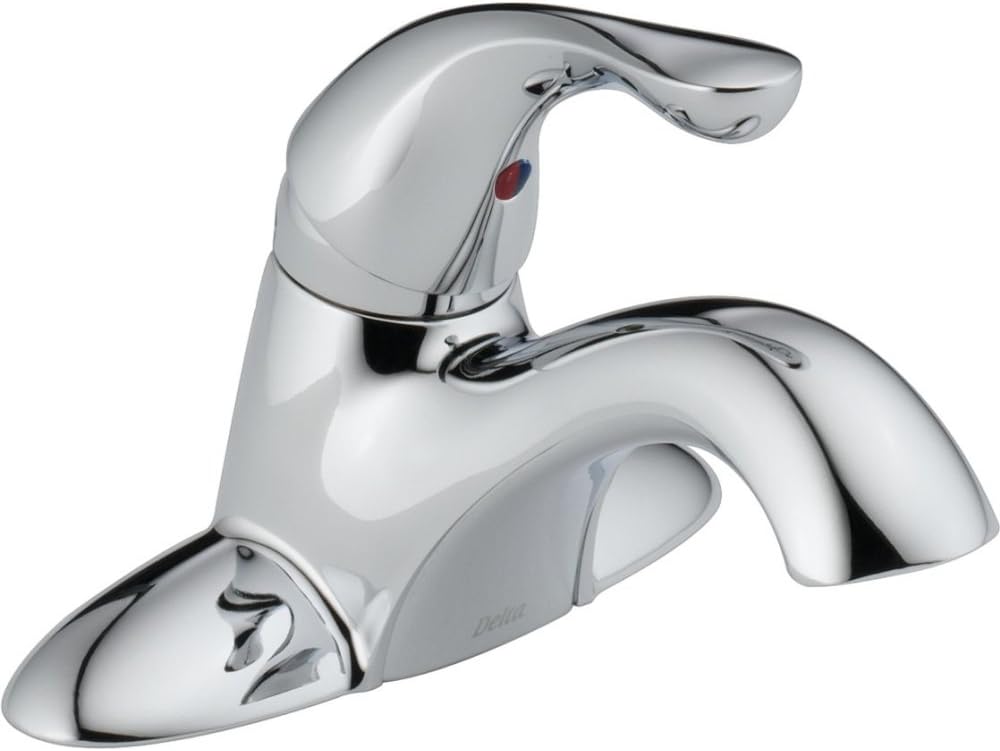

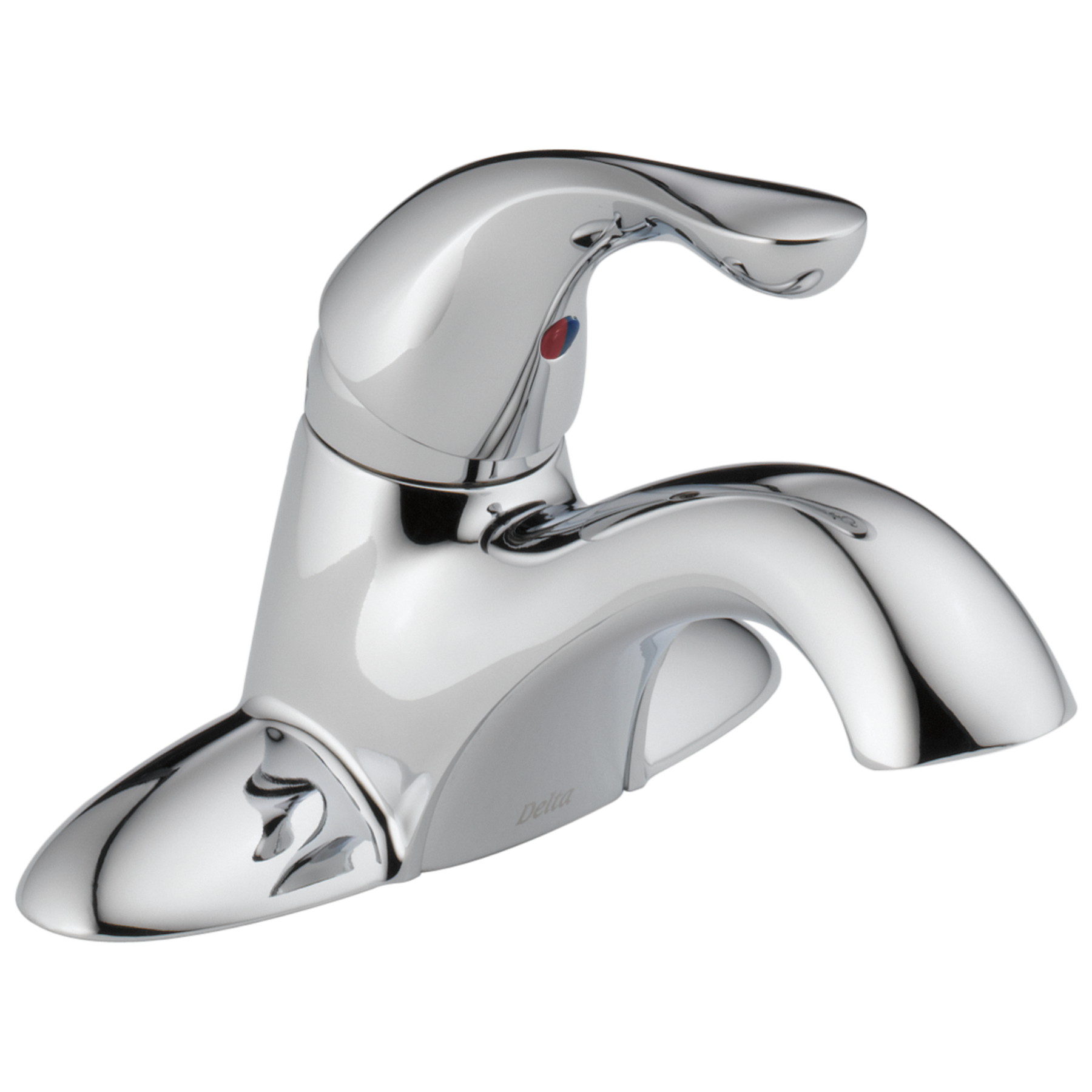

Delta Faucet 501-DST Classic Centerset Lavatory Faucet 1.2 gpm

Product Description

The DELTA FAUCET 501-DST is a chrome bathroom faucet with dimensions of 8.18 x 12.50 x 13.00 inches. It features a single lever handle, a rigid spout with a 5-inch reach and a maximum flow rate of 1.2 Gallons Per Minute. Designed for 3-hole, 4-inch centerset installation, this faucet is WaterSense certified and ADA compliant.

• ADA Compliant
• WaterSense Certified
• Features DIAMOND Seal Technology
• Designed for 3-hole, 4-inch centerset installation

Product Highlights

This single-handle centerset bathroom faucet offers a classic design with modern water-saving technology and durable construction.

Product Information

Standard Information

• Brand: DELTA FAUCET
• Manufacturer Part Number: 501-DST
• Country of Origin: United States

Technical Specifications

• Color: Chrome
• Style: Contemporary / Modern
• Finish: Chrome
• Material: Brass
• Hole Count: 3
• Model Name: 501-DST
• Valve Type: Diamond Seal
• Handle Type: Lever
• Spout Reach: 5 Inches
• Spout Height: 4-7/8 in
• Certification: WaterSense
• Mounting Type: Deck Mount
• Handle Location: Centerset
• Installation Type: Deck Mounted
• Maximum Flow Rate: 1.2 Gallons Per Minute
• Number of Handles: 1
• Batteries Included?: No
• Batteries Required?: No
• Included Components: 501-DST
• Recommended Uses For Product: Bathroom
• Inlet Size: 3/8 Inch
• Spout Type: Fixed
• Color Finish: Chrome Plated
• Inlet Connection: Compression
• Faucet Hole Center: 4 Inch
• Flow Rate: 1.2 gallons-per-minute
• Inclusions Features: 3-Hole Installation, Metal Pop-Up Drain Assembly, Red/Blue Indicator Marking, Cartridge Limit Switch, InnoFlex Pex-C Supply Line, Diamond Seal Technology, Diamond Seal Valve
• Used On Item: Bathroom Sink
• Applicable Standard: ADA, ASME A112.18.1/CSA B125.1, ASME A112.18.2/CSA B125.2, ICC/ANSI A117.1, EPA
• Additional Information: Lead-Free; Deck Thickness 2 Inch
• Manufacturer Name: Delta Faucet
• Manufacturer Part Number: 501-DST
• Catalog Number: 501-DST
• UNSPSC Code: 30181702
• Brand: DELTA FAUCET
• Center Distance: 4 in
• Collection: Classic
• Commercial/Residential/Dual: Commercial
• Mfg Standards/Approvals: ADA Compliant, ASME A112.18.1/A112.18.2, ANSI A117.1, CSA B125.1/B125.2
• Mounting: Deck
• Number of Faucet Holes: 3
• Valve/Cartridge Type: Ceramic
• Connection Type: 3/8 in Compression
• Deck Thickness: 2 in
• Drain Type: Less Pop-Up
• Faucet Center Size: 4 in
• Item Name: Centerset Bathroom Faucet
• Overall Height: 6-9/16 in
• Series: Classic
• Centers: 4 in
• GPM: 1.2 gpm
• Overall Height (in.): 6-9/16
• Flow Rate (GPM): 1.2 gal/min
• Attribute: Without Pop-Up
• Hols Configuration: 3-hole 4'' installation
• Number of installation holes required: 3
• Center-to-center distance between handle installation holes (faucet centers): 4"
• Installs onto decks up to: 2" thick
• Handles Included: Yes
• Valve Included: Yes
• Faucet Holes: 3
• Faucet Type: Bathroom Sink Faucet
• Handle Material: Metal
• Spout Style: Conventional
• Theme: Transitional, Basic
• Water Efficient: Yes
• ADA: Yes
• Approved for Commercial Use: Yes
• CA Drought Compliant: Yes
• WaterSense Certified: Yes
• Product Type: Lavatory
• Length: 6.69"
• Width: 6.5"
• Height: 6.56"
• Introduction Date: 2008
• Country of Origin: United States
• Made in USA: Yes
• Watersense: Yes
• Low Lead Compliant: Yes
• CEC: Yes
• CALGreen: Yes
