Delta Breez Slim SLM70-LVDC 70 CFM Single speed Fan with 12Vdc, PoE connector, 12W, 2 Sones

Delta Breez Ventilation Fans. Perfectly Quiet. Perfectly Green.
Super Low Profile. Super Low Energy Consumption.

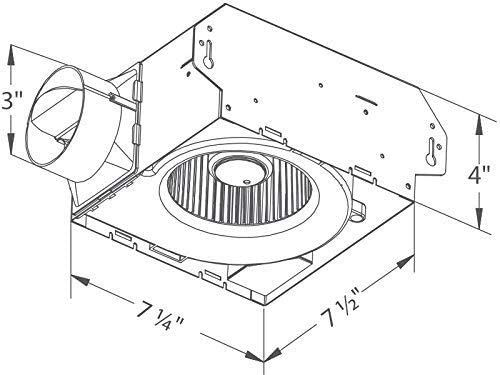

• Weighing in at less than 5 lbs, the powerful yet compact Delta BreezSlim sets the bar for performance in the popular small fan size of 7.2” x 7.25" x 3.94".
• Operating at just 2.0 sones, this quiet fan features Delta’s super reliable DC brushless motor, and a modern grille design.
• Perfect for retrofit into an existing space or for ceiling mount or wall mount installation (UL listed for both) into your next multifamily or single-family project.
• BreezSlim breaks the mold of the everyday bathroom exhaust fan.

Using a Low Voltage power source means low voltage wiring and controls
• use in any DC house,
• Microgrid or
• Solar project.
• AWG18 wire recommended. Version 2 with built in Inrush current limiting.

Compatible Switches
• Any simple On/Off switch with a 12 volt 1 amp supply
• AL-WS-Bath Light/Fan switch combo from ATX LED with 12 volt Fan driver, for use in 48 volt systems
• AL-WS-DR2C Light/Fan switch combo from ATX LED with 12 volt Fan driver, for use in 24 and 48 volt systems with Fan timer and automatic operation
• AL-WS-DR2 Light/Fan smart switch combo from ATX LED with 12 volt Fan driver, for use in 48 volt systems with Alexa / Google, speed controls, timers

See Also
• SLM70-POE for 802.3af and 48 volt passive projects
