Delta 5COM18-PAC-618-480-03 Commercial Generator 18kW 480v 3ph

Product Description

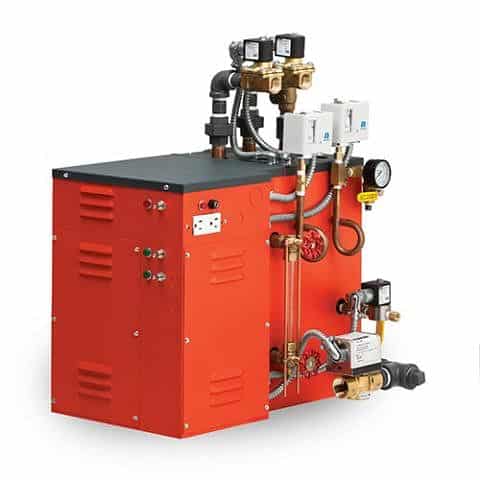

The Delta 5COM18-PAC-618-480-03 commercial generator is designed for round-the-clock operation. It features a microprocessor boiler control and a room sensor for programming temperature ranges. The bypass control allows adjustment of steam output, and the steam head outputs steam with a 360-degree spread. It allows programming of steam room settings from up to 100 feet away.

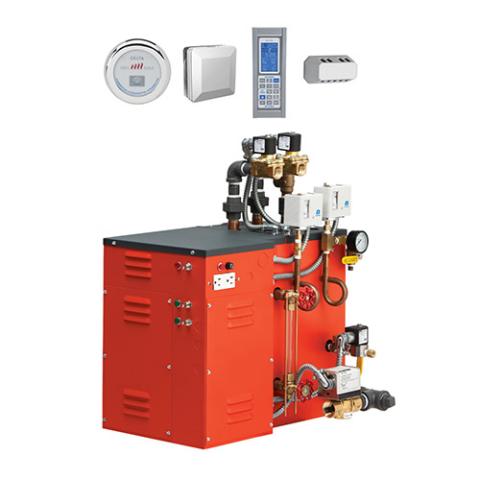

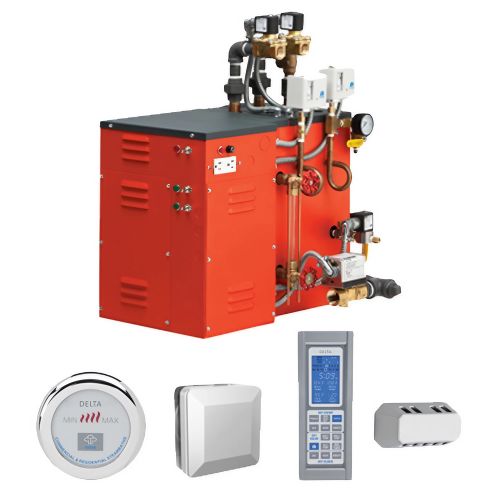

• Includes microprocessor boiler control with two relays prewired for the aromatherapy pump, digital command center and cable, user bypass control and cable, room sensor and cable, steam solenoid pre-assembled to the steam generator, and chrome transitional steam head
• Allows programming of steam room settings from up to 100' distance from generator (50' cables ship standard)
• Idle setback feature allows efficient tailoring of operations during off-peak hours. Each day of the week can be programmed individually. Provides maximum energy saving idle temperature

Product Highlights

This commercial generator is ASME code compliant, UL listed, and backed by US customer support and service.

Product Information

Standard Information

• Brand: DELTA
• Manufacturer Part Number: 5COM18-PAC-618-480-03
• Country of Origin: United States

Technical Specifications

• Max Shower Volume: 740
• Control Unit Included: Yes
• Generator Included: Yes
• Steam Head Included: Yes
• Electrical Phases: 3
• Breaker Capacity: 30
• Frequency: 60
• Voltage: 480
• Wattage: 18000
• Number Of Steam Heads: 1
• Approved For Commercial Use: true
• Kilowatts: 18kw
• Electrical Voltage: 480 Volt
• Phase: 3
• Line Fuse: 30
• Pressure Rating: 15 PSI
• Room: Steam Room
• Connection Size: 3/4"
• Connection Type: NPT
• Model: 5COM18-PAC-618-480-03
• Amperage: 22
• Motor Type: Three Phase
• Manufacturer: Delta
• Product: Steam Shower Generator
• Item: Steam Generators
• Max Room Volume: 740 cu. ft.
• AutoFlush Included: No
• Includes Drip Pan: No
