Delta 520LF-HGMHDF Lavatory Faucet HDF Centerset 4 Inch Spread 1 Lever ADA WaterSense 0.5 Gallons per Minute Metal Pop-up

Product Description

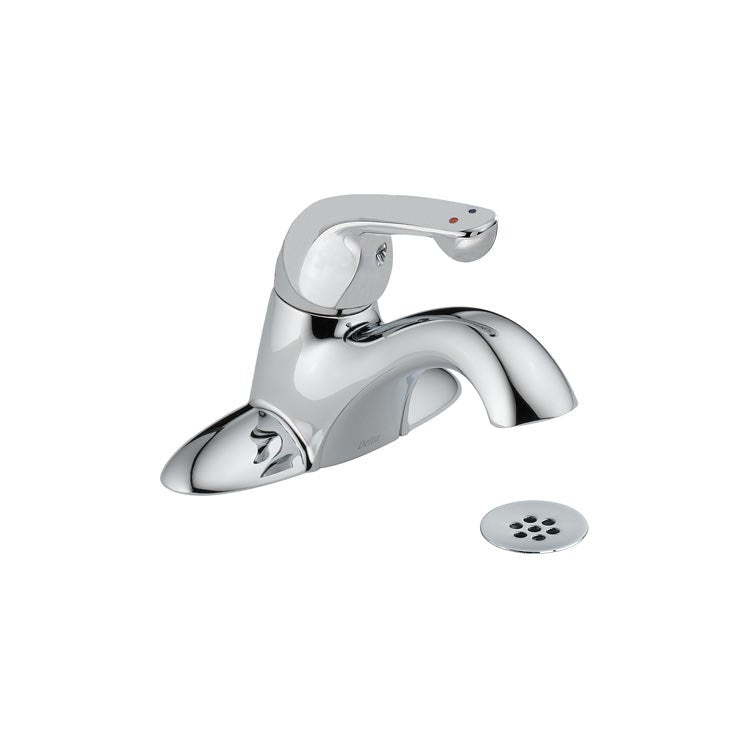

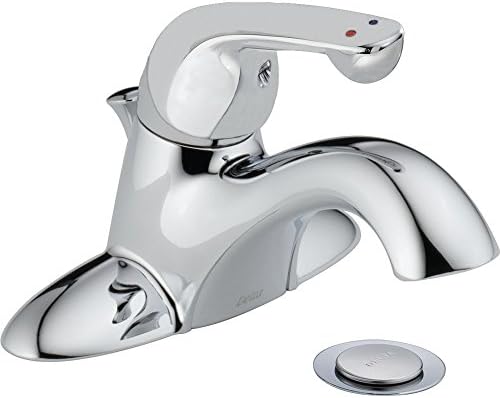

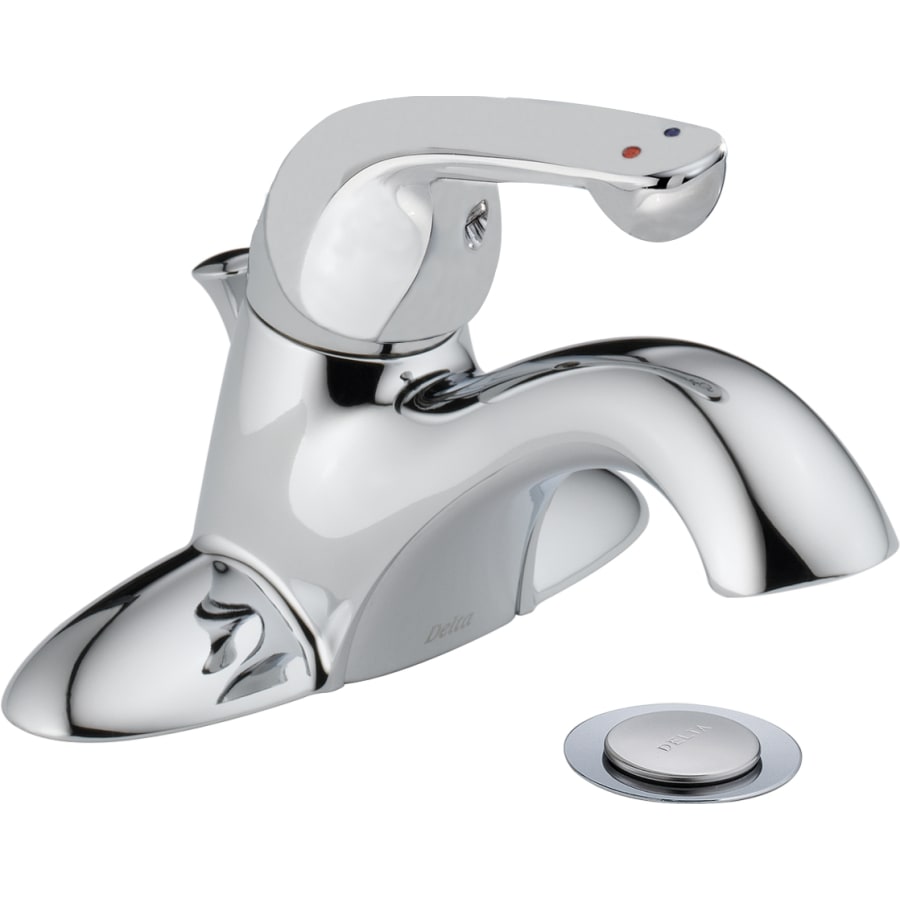

The DELTA 520LF-HGMHDF lavatory faucet is a HDF centerset with a 4-inch spread and single lever handle. ADA compliant and WaterSense certified, it features a chrome finish and a 0.5 GPM flow rate. Designed with a metal pop-up drain, this faucet is suitable for commercial and residential use. It has a vandal resistant lever handle with adjustable handle limit stop.

• ADA Compliant
• WaterSense Standard
• Metal Pop-Up Drain

Product Highlights

This centerset lavatory faucet combines durability and water efficiency, making it ideal for various applications. It features a vandal-resistant design and easy single-handle operation.

Product Information

Standard Information

• Brand: DELTA
• Manufacturer Part Number: 520LF-HGMHDF
• Country of Origin: United States

Technical Specifications

• Brand: Delta
• Product Type: Centerset
• Spread: 4IN
• Number of Handles: 1
• Handle Type: Lever
• ADA Compliant: Yes
• Standard: WaterSense
• Finish: Chrome
• Flow Rate: 0.5GPM
• Spout Type: Standard
• Drain Type: Metal Pop-Up
• Number of Holes: 3
• Material: Brass
• Spout Height: 1.6875IN
• Spout Reach: 5IN
• Cartridge Type: Diamond Coated Ceramic
• Inlet Size: 1/2IN
• Inlet Connection: NPSM
• Length: 8.375IN
• Width: 6.625IN
• Faucet Height: 6.571428571428571IN
• GPM: 0.5
• FinishColor: Polished Chrome
• Finish_Name: Chrome
• Handle_Type: Single Handle Lever
• Faucet_Hole_Center: 4"
• Number_of_Faucet_Holes: 3
• Commercial_or_Residential: Primarily Residential
• Category: Lavatory Faucet
• Item [Specifications]: Centerset Lavatory Faucet
• Series [Specifications]: HDF
• Material [Specifications]: Soild Brass
• Flow Rate [Specifications]: 0.5 gpm
• Valve Type [Specifications]: DIAMOND(TM) Seal Valve
• Depth (In.) [Specifications]: 8.38
• Spout Length [Specifications]: 5
• CEC Compliant [Specifications]: T
• Mounting Type [Specifications]: Centerset
• Flow Rate (GPM) [Specifications]: 0.50
• Number of Holes [Specifications]: 3-hole 4" installation
• Faucet Operation [Specifications]: Single Handle
• Flow Outlet Type [Specifications]: Aerated
• Number of Handles [Specifications]: 1
• Overall Width (In.) [Specifications]: 6.63
• Overall Height (In.) [Specifications]: 4.88
• Residential / Commercial [Specifications]: Commercial
• Color: Silver
• Height: 4.88
• Connection Type: Universal fittings
• Overall Height (in.): 4.875
• Control Box Option: N/A
• Installation Center: 4" (102mm) Centers
• Mounting: Deckmount
• Faucet Centers (in.): 4 in. Centerset
• Color/Finish Family: Chrome
• Commercial/Residential: Commercial/Residential
• Number of Faucet Handles: 1-Handle
• Features: Adjustable Flow Rate, Vandal Resistant
• Manufacturer Color/Finish: Chrome
• Overall height: 6.5625" (measured from counter top to highest point of faucet)
• Spout height: 1.6875" (measured from counter top to faucet outlet)
• Number of installation holes required: 3
• Center-to-center distance between handle installation holes (faucet centers): 4"
• Installs onto decks up to: 2" thick
• Handles included: 1
• Collection: HDF®
• Connection Size: 1/2-14
• Domestic/Import: Domestic
• Maximum Deck Thickness: 2 in
• Mounting Type: Deck
• Valve/Cartridge Type: DIAMOND™ Seal Valve
