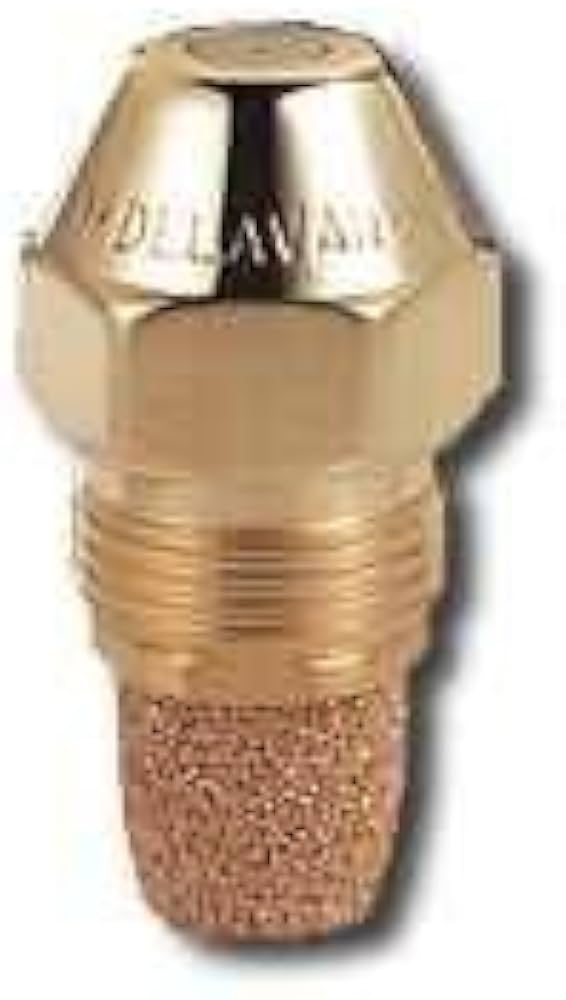

Delavan Spray Technologies 12060B Oil Nozzle

Product Description

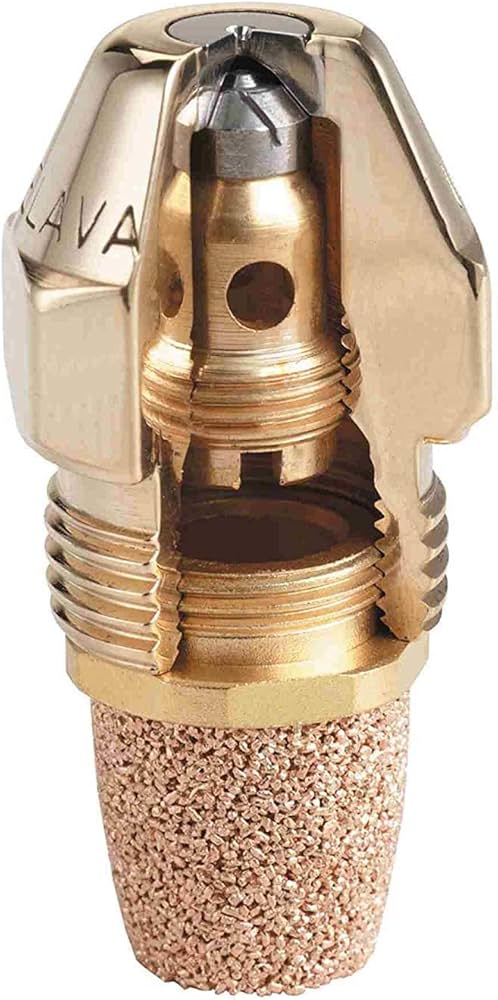

The Delavan Spray Technologies 12060B is an oil nozzle made for precision oil burners. It has a solid cone spray pattern with a 60-degree spray angle, designed specifically for residential applications. This nozzle is built from high-quality materials such as a brass body and stainless steel components, ensuring durability and reliable performance. It distributes fuel droplets uniformly across the spray pattern, enhancing smooth ignition and efficient combustion, especially in larger burners. Additionally, it includes a tangential slot distributor and a sintered filter to maintain spray quality and prevent clogging.

• Precision oil burner nozzle with solid cone spray.
• Features a 60-degree spray angle for residential use.
• Constructed with durable brass and stainless steel components.

Product Highlights

This nozzle is optimal for enhancing combustion efficiency in residential oil burners.

Product Information

Standard Information

• Item: Nozzle
• Used On: Precision Oil Burner

Technical Specifications

• Vial Color: Blue
• Flow Rating: 1.20 GPH
• Pressure Rating: 100 PSI
• Spray Angle: 60 Degrees
• Application: Residential
• Applicable Standard: ISO 9001
• Spray Pattern: Solid
