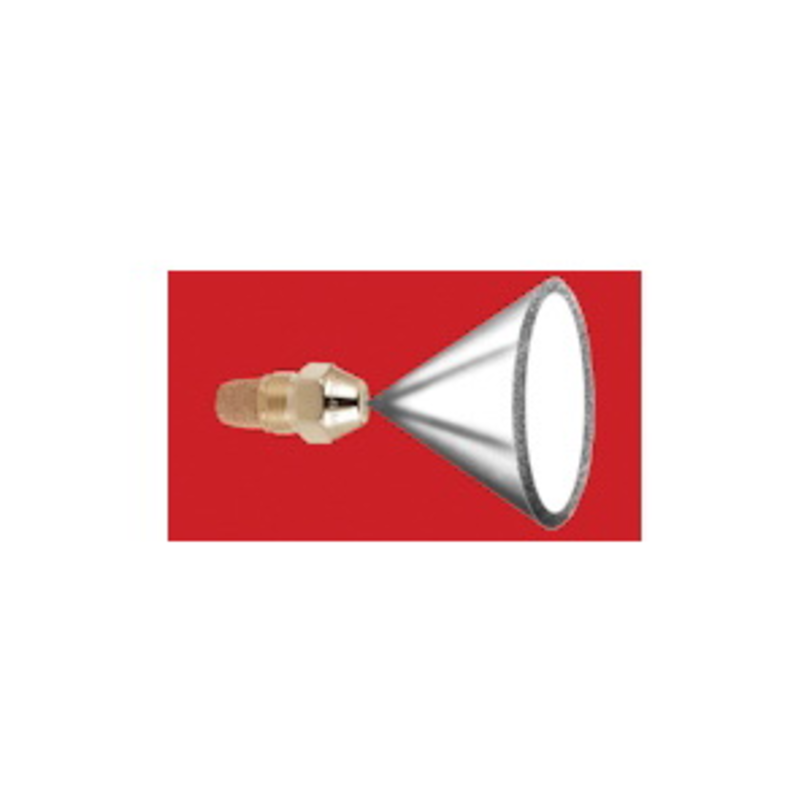

Delavan Spray Technologies 11070W Oil Burner Nozzle

Product Description

The Delavan Spray Technologies 11070W oil burner nozzle is a Type W all-purpose nozzle designed for versatility. It can replace either solid or hollow cone nozzles within a flow rate range of zero point four to eight GPH. The nozzle's bi-metal construction includes a brass body and stainless steel metering parts, providing close tolerances during manufacturing. This combination ensures precise and efficient performance. The brass material effectively conducts heat from the nozzle face, minimizing varnish and oil residue buildup.

• Type W nozzle suitable for solid and hollow cone replacements.
• Flow rate ranges from 0.4 to 8 GPH.
• Brass body enhances heat transfer and reduces residue buildup.

Product Highlights

This nozzle is ideal for various applications in oil burning systems, ensuring efficient fuel delivery and combustion.

Product Information

Standard Information

• Type: W All Purpose
• Flow Rate: 1.1 GPH

Technical Specifications

• Spray Angle: 70 degrees
• Material: Brass body with stainless steel metering parts
