Delavan Spray Technologies 00135-80B2 Oil Burner Nozzle 1.35 GPH x 80 Degree B Solid

Product Description

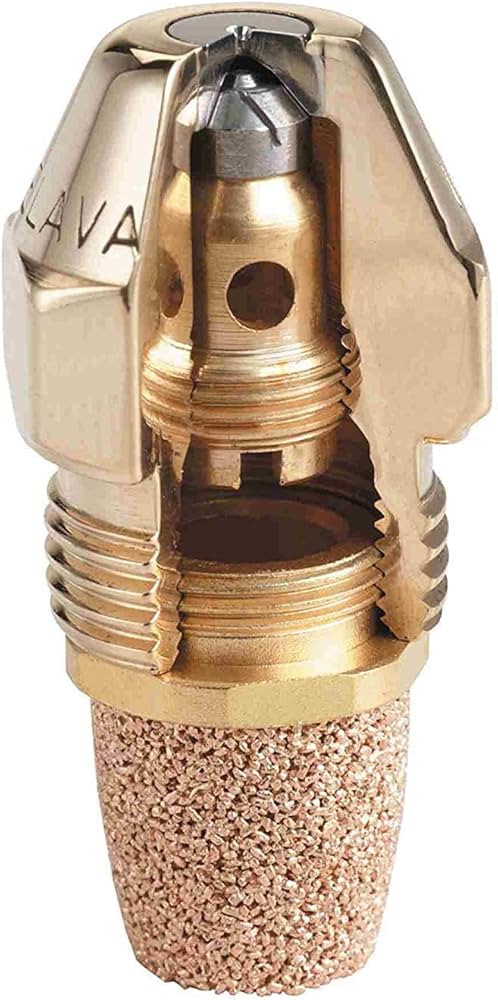

The Delavan Spray Technologies 00135-80B2 is an oil burner nozzle suitable for a wide range of applications. This nozzle is factory-tested for accuracy in its spray pattern. It offers a flow rate of 1.35 gallons per hour and features an 80-degree solid spray pattern. The nozzle body is made from solid brass for durability and is equipped with a blue cap. This nozzle type B is designed to provide a uniform droplet distribution which results in smooth ignition and efficient combustion, especially useful for larger burners.

• Flow Rate: 1.35 Gallons Per Hour (GPH)
• Spray Angle: 80 Degree
• Material: 100% Solid Brass

Product Highlights

Efficient and reliable, designed for consistent performance in oil burning systems.

Product Information

Standard Information

• Country of Origin: Made in America
• Color: Blue

Technical Specifications

• Gallons Per Hour: 1.35 GPH
• Spray Angle: 80 Degree
• Spray Pattern: Solid Cone
• Construction: 100% Solid Brass
• Cone Type: Type B (Solid Cone)
