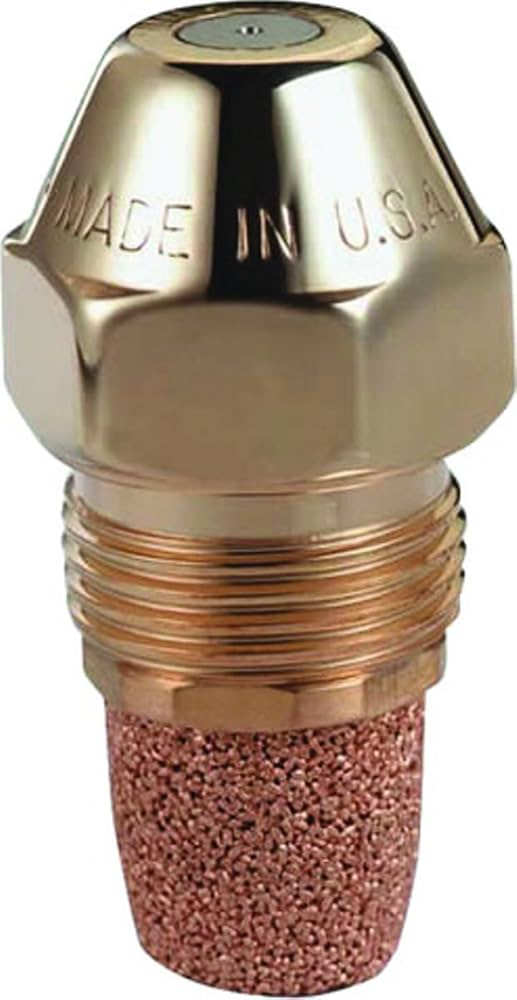

Delavan Spray Technologies 00125-80B2 Oil Burner Fuel Nozzle

Product Description

The Delavan Spray Technologies 00125-80B2 is an oil burner fuel nozzle used in hot water pressure washers and oil heating systems. This component has a solid cone spray pattern, known as Type B, which allows for uniform distribution of droplets, improving ignition and combustion efficiency, especially in larger burners.

• Provides a solid cone spray pattern for efficient combustion.
• Compatible with oil burners and hot water pressure washers.
• Constructed for smooth ignition and consistent fuel distribution.

Product Highlights

Delavan has over 60 years of experience in manufacturing nozzles for combustion applications, ensuring high-quality performance in both domestic and commercial setups.

Product Information

Standard Information

• Country of Origin: United States
• Weight: 0.48 ounces

Technical Specifications

• Maximum Flow Rate: 1.25 gph
• Nozzle Spray Angle: 80 degrees
• Fuel Nozzle Type: B (Solid Cone)
• Body Material: Brass
• Orifice Material: Stainless Steel
