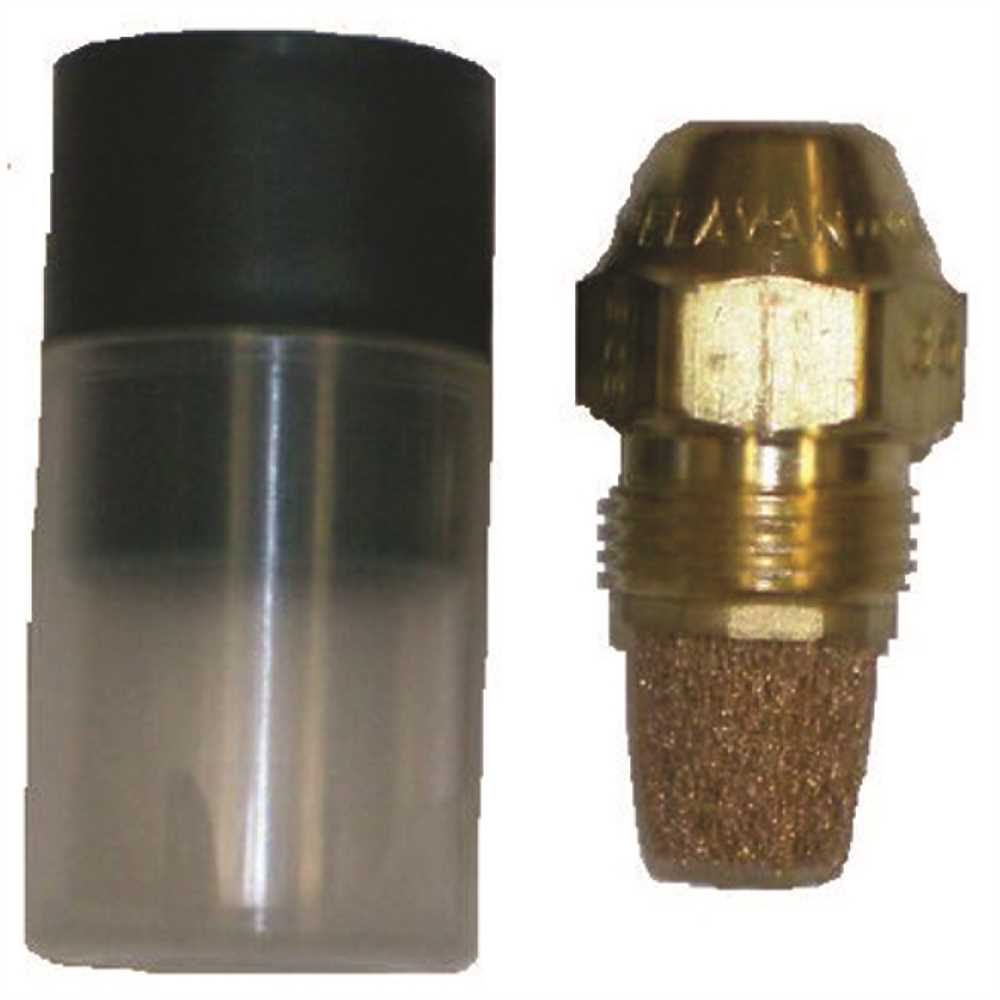

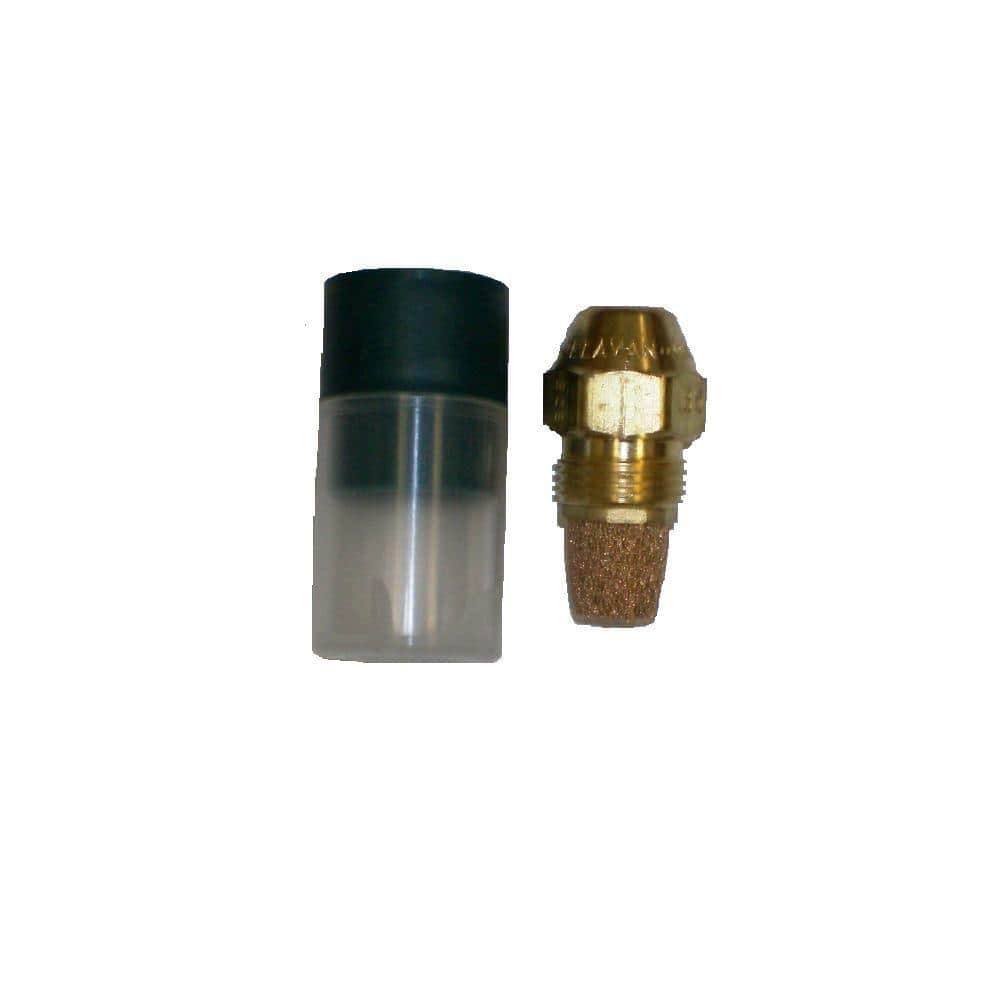

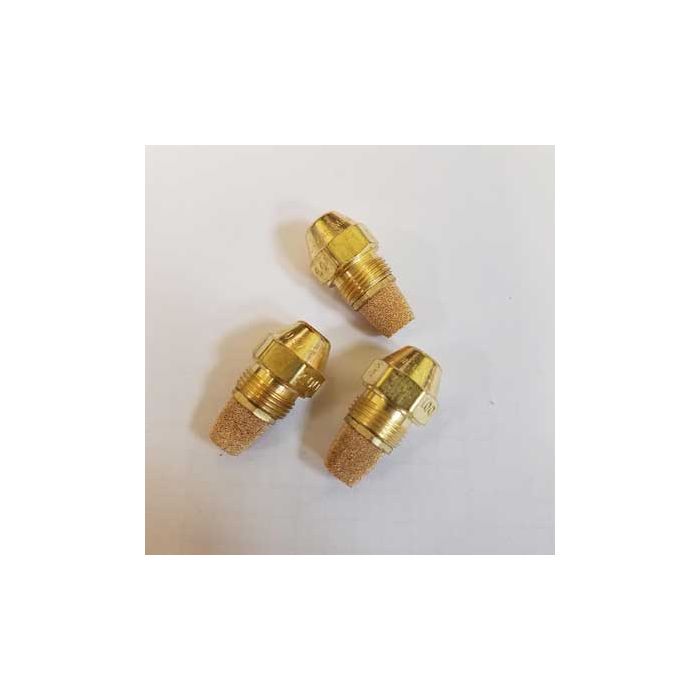

Delavan Spray Technologies 00075-60A1 Spray Nozzle, Hollow Cone Type A

Product Description

The Delavan Spray Technologies 00075-60A1 is a hollow cone nozzle suitable for oil burners. It serves primarily in residential heating applications and hot water pressure washers. This nozzle provides a flow rate of zero point seventy-five gallons per hour and features a sixty-degree spray angle. The design produces a hollow cone spray pattern with droplets concentrated on the cone's outer edge, enhancing ignition and minimizing combustion noise. Constructed with a brass body and a steel orifice disc, this nozzle is optimized for reliability and efficiency.

• Designed for oil burner applications.
• Features a hollow cone spray pattern for efficient combustion.
• Perfect for residential heating systems.

Product Highlights

Efficiently promotes good ignition and low-noise operation.

Product Information

Standard Information

• Type: Hollow Cone Type A
• Application: For oil burner, residential uses

Technical Specifications

• Flow Rate: 0.75 GPH
• Spray Angle: 60 Degree
• Material: Brass Body, Steel Orifice Disc
• Dimensions: Depth 0.75 inches, Height 1.625 inches, Width 0.75 inches
