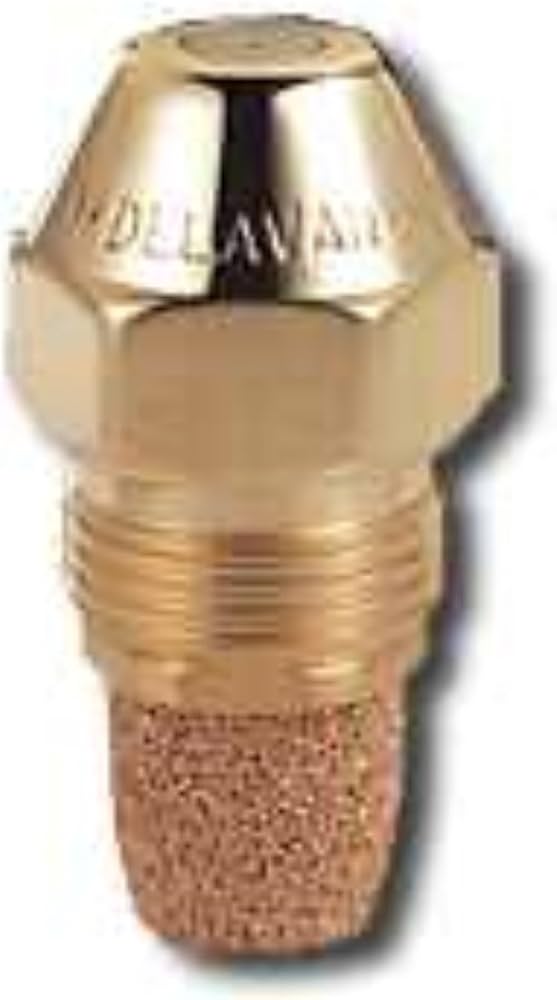

Delavan Spray Technologies 00060-60A1 .60 60 Degree A Hollow Oil Burner Nozzle

Product Description

The Delavan Spray Technologies 00060-60A1 is an oil burner nozzle for effective fuel delivery in heating systems. This nozzle features a flow rate of point sixty gallons per hour and a spray angle of sixty degrees. It is suitable for both residential and commercial uses. The design produces a hollow cone spray pattern, enhancing droplet distribution around the cone's exterior. This arrangement supports efficient ignition and reduces combustion noise.

• Flow Rate: 0.60 GPH
• Spray Angle: 60 degrees
• Spray Pattern: A, Hollow Cone

Product Highlights

This nozzle is made with a brass body and steel orifice disc. It is compliant with ISO 9001 standards for quality assurance.

Product Information

Standard Information

• Country of Origin: USA

Technical Specifications

• Type: A, Hollow Cone
• Material: Brass Body, Steel Orifice Disc
• Pressure Rating: 100 PSI
• Temperature Rating: 80 degrees F
• Application: Residential
• Filter Type: Sintered
