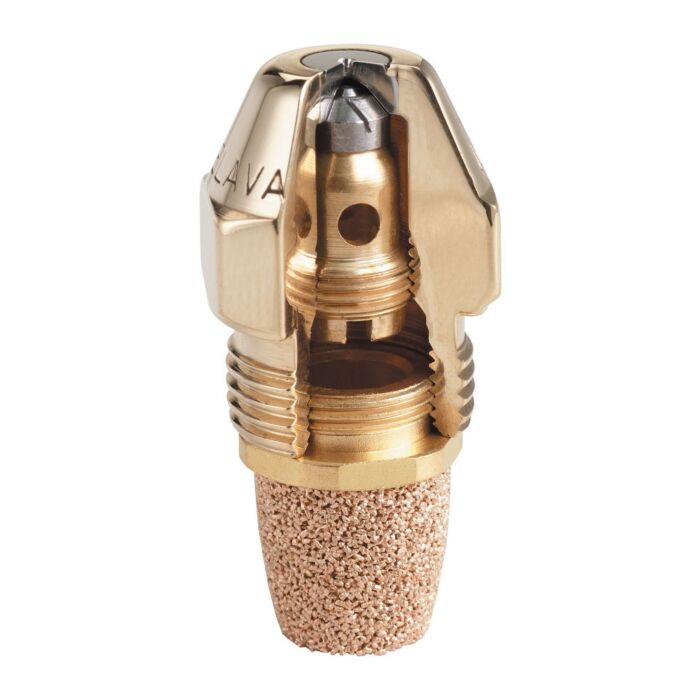

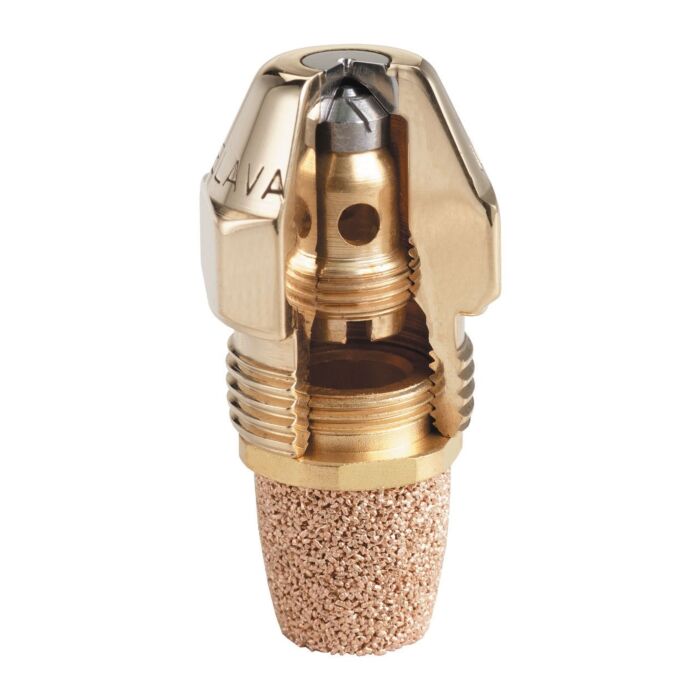

Delavan d5060 Oil Burner Nozzle 0.50 Gph 60 Degree

Product Description

The DELAVAN d5060 is a Del-O-Flo series oil burner nozzle rated at 0.50 gallons per hour (GPH) with a 60-degree spray angle. It atomizes fuel oil into a fine mist for efficient combustion in residential and light commercial oil-fired heating systems. The nozzle delivers a consistent spray pattern that supports stable flame formation and reliable ignition. Licensed oil burner technicians and HVAC service professionals install and replace these nozzles as part of routine annual tune-ups or combustion performance service calls.

This nozzle is suited for residential oil-fired furnaces, boilers, and water heaters that require a 0.50 GPH flow rate and a 60-degree spray angle. The Del-O-Flo design is intended for systems where a hollow or semi-hollow pattern at this angle optimizes firebox coverage. Nozzle replacement is a standard part of heating season preparation to maintain combustion efficiency and prevent buildup-related service calls.

Key Features

• 0.50 GPH rated flow rate for precise fuel metering
• 60-degree spray angle for wide firebox coverage
• Del-O-Flo series design for consistent atomization
• Standard replacement size for residential oil burner service

Compatibility

Designed as an OEM-style replacement nozzle for residential and light commercial oil-fired burners requiring a 0.50 GPH flow rate at a 60-degree spray angle.

Installation Notes

Oil burner nozzle replacement is performed by licensed oil burner technicians or qualified HVAC service professionals. Shut down the burner and allow the system to cool before beginning service. Use a proper nozzle wrench to remove and install the nozzle without damaging the nozzle adapter or electrode assembly. Dispose of the used nozzle according to local regulations and verify combustion performance with a flue gas analyzer after installation.

Technical Specifications

• Flow Rate: 0.50 GPH
• Spray Angle: 60 degrees
• Series: Del-O-Flo

Standard Information

• Brand: DELAVAN
• Manufacturer Part Number: d5060
