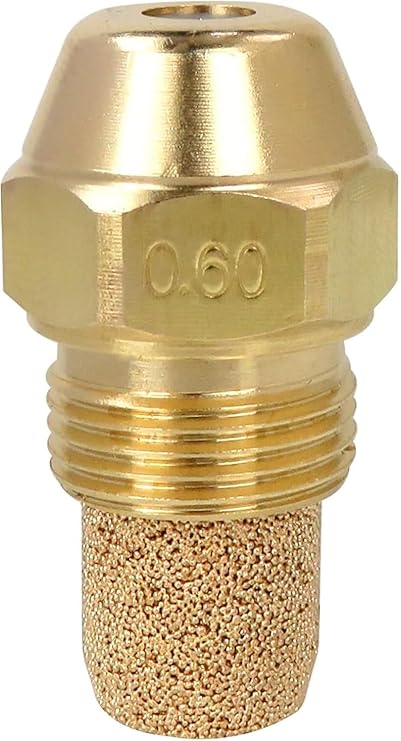

Delavan 60-80A1 00060-80A1 0.60 gph 80 deg

Product Description

The DELAVAN 60-80A1 00060-80A1 nozzle utilizes bi-metal construction with a brass body and stainless steel metering parts for precision and consistently high performance. The brass body facilitates rapid heat transfer to minimize varnish and oil residue buildup. It produces a spray that distributes droplets fairly uniformly throughout the complete pattern. Mainly used on burners with a hollow cone air pattern and for throughputs up to 2.00 GPH.

• Type A nozzles are mainly used on burners with a hollow cone air pattern and for throughputs up to 2.00 GPH.
• The droplet distribution is concentrated on the outside of the cone and results in good ignition and low-noise combustion.
• Constructed with a brass body and stainless steel metering parts.

Product Highlights

The DELAVAN 60-80A1 nozzle features bi-metal construction, precise machining, and efficient heat transfer for optimal performance in oil burners.

Product Information

Standard Information

• Brand: DELAVAN
• Manufacturer Part Number: 60-80A1

Technical Specifications

• Type: Type A Hollow Cone
• Material: Brass
• Flow Rate: 0.60 gph
• Spray Angle: 80 deg
• Style: Hollow flame pattern
• Flame Apex Angle: 80°
