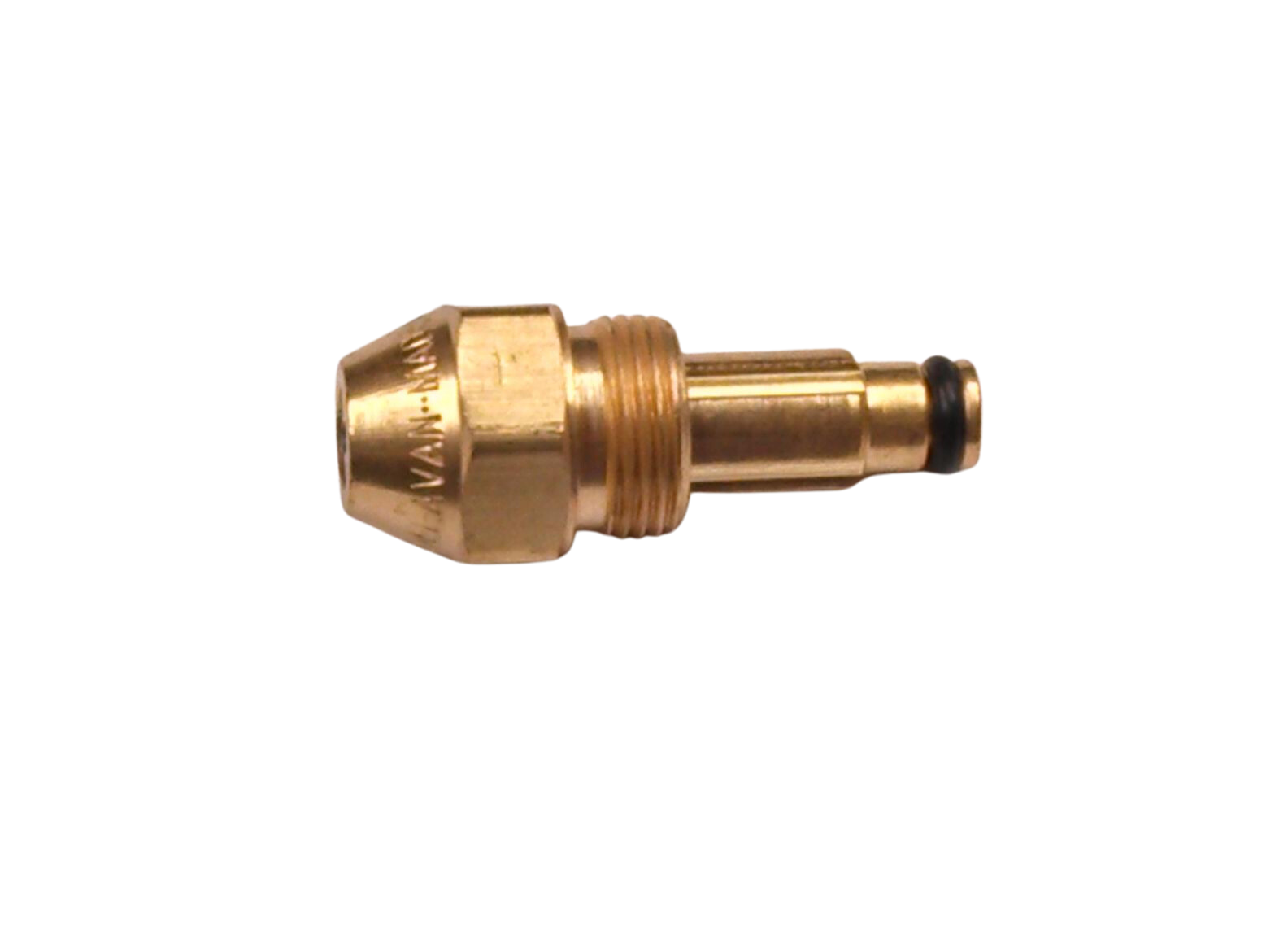

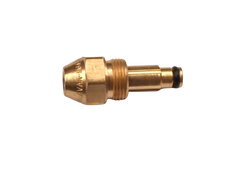

Delavan 30609-3 SNA Siphon Air Atomizing Nozzle 0.30 GPH 2 Ports 32003

Product Description

The DELAVAN 30609-3 SNA Siphon Air Atomizing Nozzle is a brass component designed to produce a solid cone spray pattern with fine particle size, even at low air pressures and CFM. This 0.30 GPH nozzle is engineered for waste oil applications, ensuring clog-free operation for low volume flow due to its relatively large passages. Flow rates, spray angles, and droplet sizes can be modified within limitations by variations in air and lift.

• Produces a solid cone spray pattern with fine particle size at low air pressures and CFM.
• Ensures clog-free operation for low volume flow due to relatively large passages.
• Designed for waste oil applications with a 0.30 GPH flow rate.

Product Highlights

Brass siphon air atomizing nozzle for waste oil applications, delivering fine spray with clog-free performance.

Product Information

Standard Information

• Brand: DELAVAN
• Manufacturer Part Number: 30609-3
• Country of Origin: USA

Technical Specifications

• Material: Brass
• Brand: Delavan
• Exterior Finish: Brass
• Inlet Connection Type: Compression
• Outlet Connection Type: NPT
• Number of Ports: 2
• Thread Type: NPT
• Connector Type: Compression
• Model Number: 30609
• Flow Rate: 0.30 GPH
• Adapter Included: EN17147 Brass
