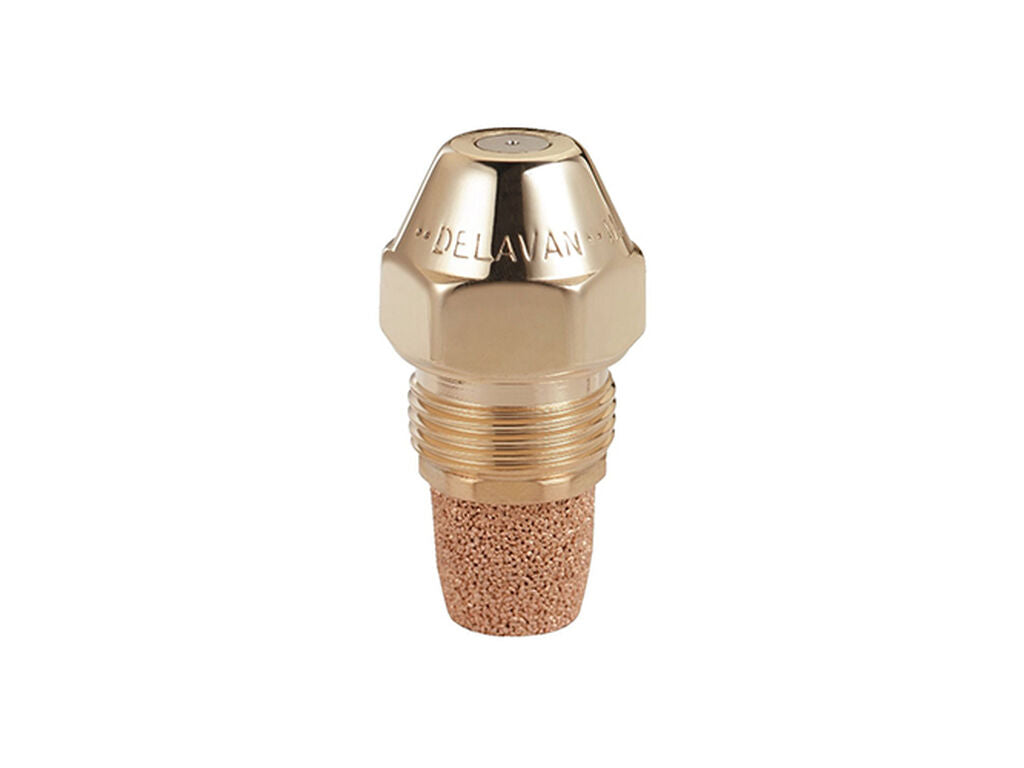

Delavan 1.35-60-SS Oil Burner Nozzle

Product Description

The Delavan 1.35-60-SS is a vital oil burner nozzle that atomizes oil for effective combustion. It has a sturdy bi-metal design that includes a brass body with metering components made of stainless steel. This nozzle can dispense oil at a rate of one point thirty-five gallons per hour while spraying at a sixty-degree angle. It operates by pushing fuel through a small opening under high pressure to form a mist that ignites easily.

• Flow rate of one point thirty-five gallons per hour
• Sprays at a sixty-degree angle

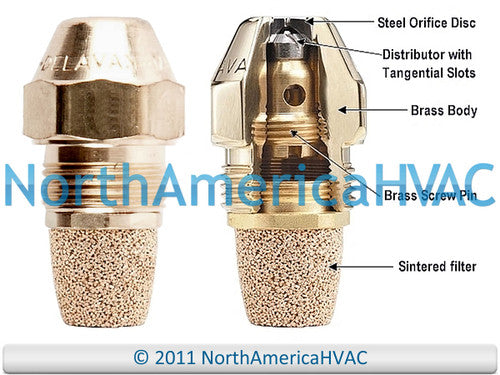

• Brass body with stainless steel components

Product Highlights

This oil burner nozzle is suitable for residential applications and adheres to ISO 9001 standards. The design ensures reliability and efficiency in oil burners.

Product Information

Standard Information

• Brand: Delavan Spray Nozzle
• Manufacturer Part Number: 1.35-60-SS

Technical Specifications

• Flow Rate: 1.35 gph
• Spray Angle: 60 Degrees
• Spray Pattern: Semi-Solid Cone
• Material: Brass
• Application: Residential
• Height: 2 inches
• Length: 1 inch
• Width: 1 inch
• Item Type: Oil Burner Nozzles
• Pressure Rating: 100 PSI
• Rod Material: Brass
• Standards: ISO 9001
• Sub Type: Type B
• Temperature Rating: 80 Deg F
• Style: SS
