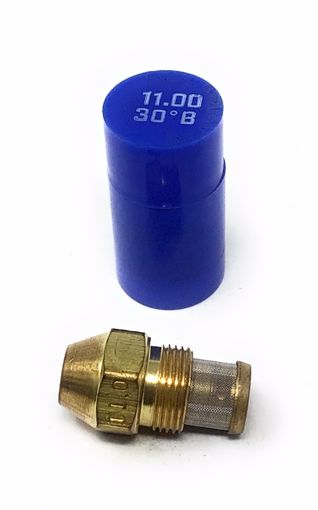

Delavan 01100-30b7 Solid Cone Nozzle 11.00 Gph 30 Degree

Product Description

The DELAVAN 01100-30b7 is a solid cone oil burner nozzle rated at 11.00 gallons per hour (GPH) with a 30-degree spray angle. It includes an integrated mesh strainer that filters fuel before atomization, protecting the nozzle orifice from particulate contamination. This nozzle atomizes fuel oil into a fine, uniform solid cone spray pattern, promoting efficient combustion in residential and light commercial oil-fired heating systems. Installation is performed by licensed oil burner technicians as part of routine annual service or component replacement procedures.

The 01100-30b7 is suited for oil-fired forced-air furnaces, boilers, and water heaters that require a solid cone spray pattern at an 11.00 GPH flow rate and a 30-degree angle. The solid cone pattern is typically specified in applications where a dense, evenly distributed flame is needed across the full spray cone. Always verify the OEM nozzle specification on the appliance data plate or service manual before substituting a replacement nozzle, as GPH rating, spray angle, and pattern type must all match the burner design.

Key Features

• 11.00 GPH flow rate for precise fuel delivery matched to burner specifications
• 30-degree solid cone spray pattern for dense, uniform fuel atomization
• Integrated mesh strainer filters contaminants before they reach the nozzle orifice
• Designed for oil-fired heating appliances requiring Type B solid cone nozzles
• Manufactured by Delavan, a recognized name in oil burner nozzle production

Compatibility

Designed as an OEM-style replacement nozzle for oil-fired furnaces, boilers, and water heaters specifying an 11.00 GPH, 30-degree, solid cone (B-pattern) nozzle. Confirm appliance data plate or burner manufacturer specifications before installation.

Installation Notes

Oil burner nozzle replacement is performed by qualified oil burner technicians in accordance with NFPA 31 and local codes. Shut down the burner and allow the combustion chamber to cool before servicing. Use a proper nozzle wrench to remove and install the nozzle without distorting the adapter or nozzle body. Never reuse a removed nozzle — always install a new nozzle during each annual service.

Technical Specifications

• Flow Rate: 11.00 GPH
• Spray Angle: 30 degrees
• Spray Pattern: Solid Cone (B)
• Strainer: Mesh strainer included
• Manufacturer: Delavan

Standard Information

• Brand: DELAVAN
• Manufacturer Part Number: 01100-30b7
