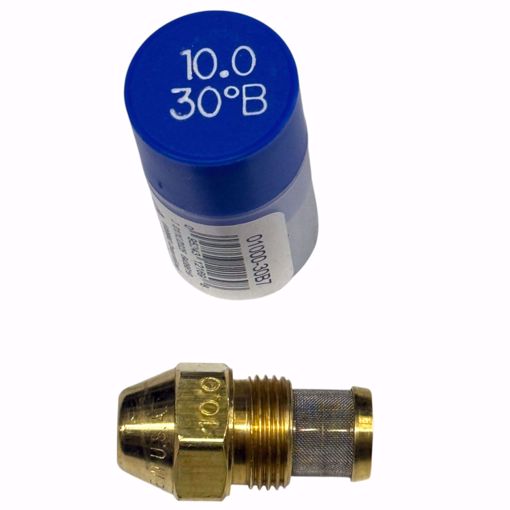

Delavan 01000-30B7 Solid Cone Nozzle 10.00 Gph 30 Degree

Product Description

The DELAVAN 01000-30B7 is a solid cone oil burner nozzle rated at 10.00 gallons per hour (GPH) with a 30-degree spray angle. It includes an integrated mesh strainer to filter fuel before atomization, protecting the nozzle orifice from debris. This nozzle meters and atomizes fuel oil into the combustion chamber of an oil-fired heating appliance, where proper spray pattern and flow rate directly affect combustion efficiency and heat output. Installation and replacement are performed by licensed HVAC technicians and oil burner service specialists as part of routine annual service or combustion troubleshooting.

This nozzle is suited for residential and light commercial oil-fired heating applications including forced-air furnaces, boilers, and water heaters equipped with gun-type oil burners. The solid cone spray pattern delivers a dense, concentrated fuel distribution that works well in combustion heads designed for that pattern type. The 30-degree angle and 10.00 GPH flow rate must match the burner manufacturer's specifications for the specific appliance being serviced. Always verify the correct GPH, spray angle, and pattern before installation.

Key Features

• 10.00 GPH flow rate for precise fuel metering in oil-fired appliances
• 30-degree spray angle for use with compatible combustion head configurations
• Solid cone spray pattern delivers dense, concentrated fuel atomization
• Integrated mesh strainer filters debris from fuel supply before it reaches the orifice
• Direct OEM-style replacement for standard gun-type oil burner service

Compatibility

Designed as an OEM-style replacement nozzle for gun-type oil burners in residential and light commercial oil-fired furnaces, boilers, and water heaters requiring a solid cone, 30-degree, 10.00 GPH nozzle.

Installation Notes

Oil burner nozzle replacement is performed by qualified HVAC or oil burner service technicians. Always shut down the appliance and allow it to cool before servicing; close the fuel supply valve before removing the nozzle assembly. Use a proper nozzle wrench to avoid damaging the nozzle adapter or electrodes. Verify that the replacement nozzle GPH rating, spray angle, and spray pattern match the appliance manufacturer's specifications before placing the unit back in service.

Technical Specifications

• Flow Rate: 10.00 GPH
• Spray Angle: 30 degrees
• Spray Pattern: Solid Cone

Standard Information

• Brand: DELAVAN
• Manufacturer Part Number: 01000-30B7
