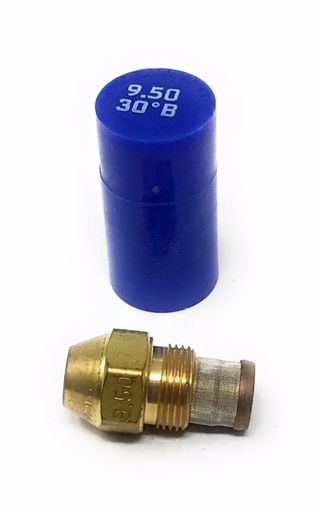

Delavan 00950-30B7 Solid Cone Spray Nozzle 9.50 Gph

Product Description

The DELAVAN 00950-30B7 is a solid cone oil burner spray nozzle rated at 9.50 gallons per hour (GPH) with a 30-degree spray angle. It ships with an integrated mesh strainer that filters debris before fuel reaches the nozzle orifice, protecting the spray pattern and reducing nuisance service calls. This nozzle meters and atomizes fuel oil inside residential and light commercial oil-fired heating equipment. Installation is performed by licensed oil burner technicians as part of routine annual servicing or combustion system troubleshooting.

This nozzle is suited for oil-fired furnaces, boilers, and water heaters that require a solid cone spray pattern. The 9.50 GPH flow rate and 30-degree angle match combustion chamber geometries designed for tighter, more concentrated flame patterns. The included mesh strainer seats at the nozzle adapter and provides a first-stage filtration point ahead of the nozzle tip.

Key Features

• Solid cone spray pattern for concentrated flame geometry
• 9.50 GPH rated flow rate for precise fuel metering
• 30-degree spray angle matches compatible combustion chamber specifications
• Integrated mesh strainer protects the nozzle orifice from particulate contamination
• Designed for use in oil-fired heating equipment requiring accurate atomization

Compatibility

Designed as an OEM-style replacement nozzle for oil-fired furnaces, boilers, and water heaters requiring a solid cone, 30-degree, 9.50 GPH nozzle specification.

Installation Notes

Oil burner nozzle replacement should be performed by a licensed oil burner technician. Shut down the burner and allow the system to cool before removing the nozzle adapter. Use the correct nozzle wrench to avoid damaging the adapter or electrodes. Verify that the replacement nozzle GPH rating, spray angle, and spray pattern match the appliance manufacturer combustion specifications before firing the system.

Technical Specifications

• Flow Rate: 9.50 GPH
• Spray Angle: 30 degrees
• Spray Pattern: Solid Cone
• Includes: Mesh Strainer

Standard Information

• Brand: DELAVAN
• Manufacturer Part Number: 00950-30B7
