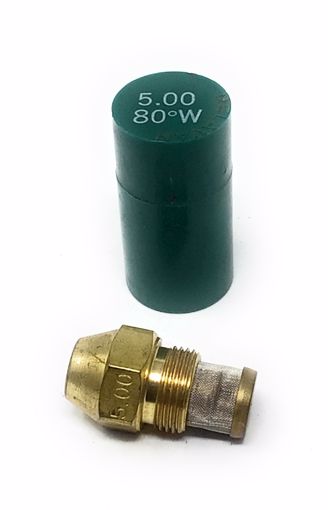

Delavan 00500-80W7 Oil Burner Nozzle 5.00 Gph 80 Degree

Product Description

The DELAVAN 00500-80W7 is an oil burner nozzle with an integrated mesh strainer, designed for use in residential and light commercial oil-fired heating systems. It delivers a flow rate of 5.00 gallons per hour at a spray angle of 80 degrees with a semi-solid spray pattern. The mesh strainer filters debris before it reaches the nozzle tip, helping maintain consistent atomization. Licensed oil burner technicians install this nozzle as part of routine annual service or combustion tune-up procedures.

This nozzle is suited for oil-fired forced-air furnaces, boilers, and water heaters that require a 5.00 GPH flow rate at an 80-degree spray angle. The semi-solid spray pattern is commonly specified in systems where moderate flame shape and heat release distribution are needed. Technicians select nozzle flow rate and spray angle based on the equipment manufacturer's specifications and combustion analysis results.

Key Features

• 5.00 GPH flow rate for precise fuel delivery in oil burner applications
• 80-degree spray angle suits a wide range of oil burner combustion chamber geometries
• Semi-solid spray pattern provides moderate flame shape and consistent heat distribution
• Integrated mesh strainer reduces debris ingestion at the nozzle tip
• Direct OEM-style replacement format for standard oil burner nozzle fittings

Compatibility

Designed as an OEM-style replacement nozzle for oil-fired heating equipment requiring a 5.00 GPH, 80-degree, semi-solid spray nozzle. Always verify flow rate, spray angle, and spray pattern against the burner manufacturer's rating plate before installation.

Installation Notes

Installation should be performed by a qualified oil burner technician following applicable local codes and NFPA 31 guidelines. Shut off the fuel supply and disconnect power to the burner before removing the old nozzle. Use an appropriate nozzle wrench to avoid damaging the nozzle adapter or electrodes during removal and installation. After installation, verify combustion performance with an analyzer before returning the system to service.

Technical Specifications

• Flow Rate: 5.00 GPH
• Spray Angle: 80 degrees
• Spray Pattern: Semi-Solid

Standard Information

• Brand: DELAVAN
• Manufacturer Part Number: 00500-80W7
