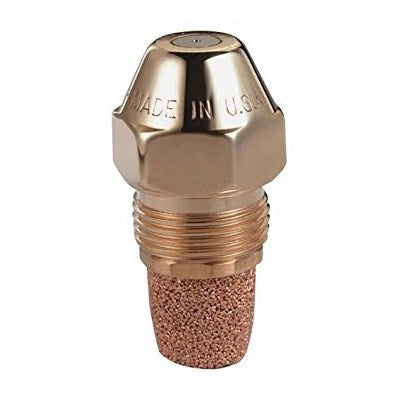

Delavan 00200-80w1 Oil Nozzle 2.00 Gph 80 Degree Semi

Product Description

The DELAVAN 00200-80w1 is an oil burner nozzle rated at 2.00 gallons per hour (GPH) with an 80-degree spray angle and a W semi-hollow cone pattern. It meters and atomizes fuel oil into the combustion chamber of an oil-fired heating appliance, producing a consistent spray pattern that supports clean, efficient ignition. This nozzle is a direct-replacement component installed by licensed oil burner technicians and HVAC professionals during routine service, nozzle replacement cycles, or combustion tune-ups. Proper nozzle selection by GPH, angle, and pattern is critical to achieving correct combustion air-to-fuel ratios and minimizing carbon buildup in the heat exchanger.

This nozzle is suited for residential and light-commercial oil-fired furnaces, boilers, and water heaters that require a 2.00 GPH firing rate at an 80-degree spray angle with a semi-hollow cone pattern. The W semi pattern is commonly specified for appliances where the combustion head geometry calls for intermediate flame shape between a solid and hollow cone. Always confirm the OEM nozzle specification on the appliance rating plate or service manual before installation.

Key Features

• 2.00 GPH flow rate for precise fuel metering in compatible oil burners
• 80-degree spray angle matches common residential and light-commercial burner head geometry
• W semi-hollow cone pattern provides intermediate flame shape for balanced combustion
• Lightweight at 0.10 pounds, designed for straightforward field replacement
• Direct-replacement format compatible with standard oil burner nozzle assemblies

Compatibility

Designed as an OEM-style replacement nozzle for oil-fired furnaces, boilers, and water heaters requiring a 2.00 GPH, 80-degree, semi-hollow cone (W) nozzle. Verify the appliance manufacturer nozzle specification before installation.

Installation Notes

Oil burner nozzle replacement is performed by qualified oil burner technicians or licensed HVAC service professionals. Shut off all electrical power and fuel supply to the appliance before beginning service, and allow the nozzle assembly to cool fully before handling. Use a proper nozzle wrench to avoid damage to the nozzle adapter or electrode assembly, and never reuse a previously fired nozzle. After installation, perform a combustion analysis to verify CO2, stack temperature, and smoke number are within the appliance manufacturer specifications.

Technical Specifications

• Flow Rate: 2.00 GPH
• Spray Angle: 80 degrees
• Spray Pattern: W Semi-Hollow Cone
• Weight: 0.10 pounds

Standard Information

• Brand: DELAVAN
• Manufacturer Part Number: 00200-80w1
