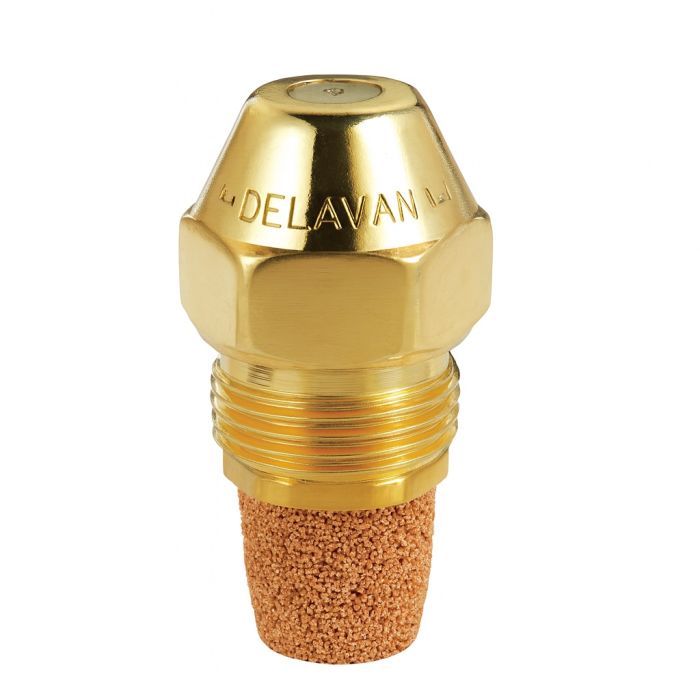

Delavan 00175-60A1 Oil Burner Nozzle 1.75 GPH 60 Degree A Hollow

Product Description

The DELAVAN 00175-60A1 oil burner nozzle is designed for use in burners with a hollow cone air pattern. It features a 1.75 GPH flow rate and a 60-degree spray angle. Hollow-Cone Type A nozzles are mainly used on burners with a hollow cone air pattern and for through puts up to 10.00 GPH. The droplet distribution is concentrated on the outside of the cone and results in good ignition and low-noise combustion.

• Type A, Hollow Cone
• Applicable Standard ISO 9001
• Material Brass Body, Steel Orifice Disc

Product Highlights

This oil burner nozzle features a brass body and steel orifice disc, and conforms to ISO 9001 standards. It is designed for residential applications.

Product Information

Standard Information

• Brand: DELAVAN
• Manufacturer Part Number: 00175-60A1

Technical Specifications

• Gallons Per Hour: 1.75 GPH
• Brand Name: Delavan
• Type: A
• Spray Angle: 60 Degree
• Spray Patten: Hollow
• MPN: 00175-60A1
• Manufacturer Part Number: 00175-60A1
• Item Type: Hollow Cone
• Applicable Standard: ISO 9001
• Material: Brass Body, Steel Orifice Disc
• Pressure Rating: 100 PSI
• Temperature Rating: 80 Deg F
• Application: Residential
• Filter Type: Sintered
• Flow Rate: 1.75 GPH
