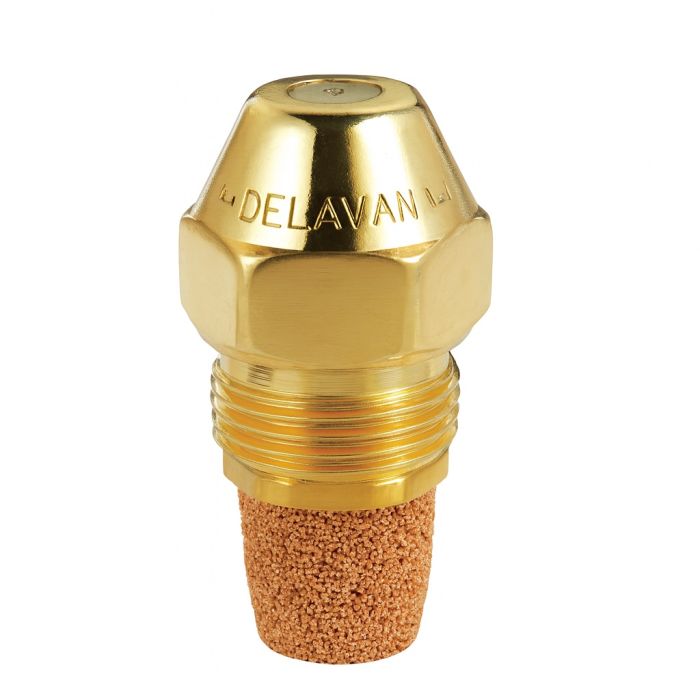

Delavan 00150-70w1 Oil Burner Nozzle 1.50 Gph 70 Degree

Product Description

The DELAVAN 00150-70W1 is a Type W semi-hollow cone oil burner nozzle rated at 1.50 gallons per hour (GPH) with a 70-degree spray angle. It atomizes fuel oil into a fine, consistent pattern for efficient combustion in residential and light commercial oil-fired heating equipment. The semi-hollow cone spray pattern delivers fuel distribution suited to burner heads that require a defined outer cone with a lighter center concentration. Licensed oil burner technicians and HVAC service professionals install this nozzle as part of routine annual tune-up service or combustion system repair.

This nozzle fits standard oil burner assemblies used in forced-air oil furnaces, oil boilers, and water heaters. The 1.50 GPH flow rate and 70-degree angle make it appropriate for burner applications where the original equipment specification calls for those parameters. Always match the replacement nozzle GPH rating, spray angle, and pattern type to the original equipment manufacturer specification for the appliance being serviced.

Key Features

• 1.50 GPH flow rate for consistent, metered fuel delivery
• 70-degree spray angle provides wide fuel distribution pattern
• Type W semi-hollow cone pattern suited to compatible burner head configurations
• Standard nozzle form factor fits common residential and light commercial oil burner assemblies
• Designed for annual replacement as part of oil burner preventive maintenance

Compatibility

Designed as an OEM-style replacement oil burner nozzle for residential and light commercial oil-fired furnaces, boilers, and water heaters specifying a 1.50 GPH, 70-degree, Type W semi-hollow cone nozzle.

Installation Notes

Oil burner nozzles are installed by licensed oil burner technicians or qualified HVAC service professionals. Before servicing, shut off the fuel supply and disconnect electrical power to the burner unit. Use a proper nozzle wrench to remove and install the nozzle without damaging the nozzle adapter or electrodes. After installation, perform a combustion analysis to verify CO2, smoke number, and stack temperature are within the appliance manufacturer specifications.

Technical Specifications

• Flow Rate: 1.50 GPH
• Spray Angle: 70 degrees
• Spray Pattern: Semi-Hollow Cone
• Nozzle Type: W

Standard Information

• Brand: DELAVAN
• Manufacturer Part Number: 00150-70w1
