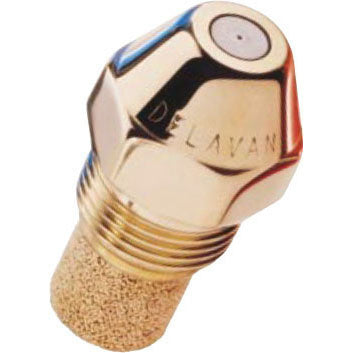

Delavan 00100-90w1 Oil Burner Nozzle 1.00 Gph 90 Degree

Product Description

The DELAVAN 00100-90w1 is a Type W all-purpose oil burner nozzle rated at 1.00 GPH with a 90-degree spray angle. It is designed for residential oil-fired heating systems and serves as a flexible replacement option across a wide range of burner configurations. The Type W spray pattern falls between a true hollow cone and a true solid cone, producing a semi-hollow distribution that adapts to varying air patterns without the sensitivity of a dedicated cone type. Construction uses a brass body with a steel orifice disc, and the nozzle includes a sintered filter element. It is rated to 100 psi and 80 degrees F, making it suitable for standard residential oil burner operating conditions.

This nozzle is applied in residential oil-fired heating equipment where a versatile spray pattern is needed. Type W nozzles are interchangeable across a flow range of 0.40 to 8.00 GPH and are compatible regardless of the burner air pattern, giving service technicians flexibility when matching replacements on the job. At lower flow rates, the spray pattern trends toward a more hollow cone distribution. It is a common go-to nozzle for oil burner service calls where the exact original nozzle specification is unknown or when a single nozzle type covers multiple units in a service route.

Key Features

• Type W all-purpose spray pattern works across hollow and solid cone applications
• 1.00 GPH flow rate at standard residential operating pressure
• 90-degree spray angle for wide coverage in standard residential burner heads
• Brass body with steel orifice disc for durability in fuel oil service
• Sintered filter element integrated into the nozzle assembly
• Rated to 100 psi pressure and 80 degrees F operating temperature

Compatibility

Designed as an all-purpose replacement oil burner nozzle for residential oil-fired heating systems with burner assemblies accepting standard 1.00 GPH nozzles. The Type W pattern is suitable for use in place of solid or hollow cone nozzles between 0.40 and 8.00 GPH regardless of the burner air pattern.

Installation Notes

Oil burner nozzle replacement is typically performed by a licensed oil burner technician or qualified HVAC service professional. Shut down the burner and allow the system to cool before removing the old nozzle. Use an appropriately sized nozzle wrench to avoid damaging the nozzle adapter or electrodes during removal and installation. After replacement, verify ignition, flame quality, and combustion efficiency with appropriate test equipment before returning the system to service.

Technical Specifications

• Product Type: Oil Burner Nozzle
• Nozzle Type: W - All Purpose
• Flow Rate: 1.00 GPH
• Spray Angle: 90 degrees
• Pressure Rating: 100 psi
• Temperature Rating: 80 degrees F
• Body Material: Brass
• Orifice Disc Material: Steel
• Filter Type: Sintered
• Application: Residential
• Applicable Standard: ISO 9001

Standard Information

• Brand: DELAVAN
• Manufacturer Part Number: 00100-90w1
