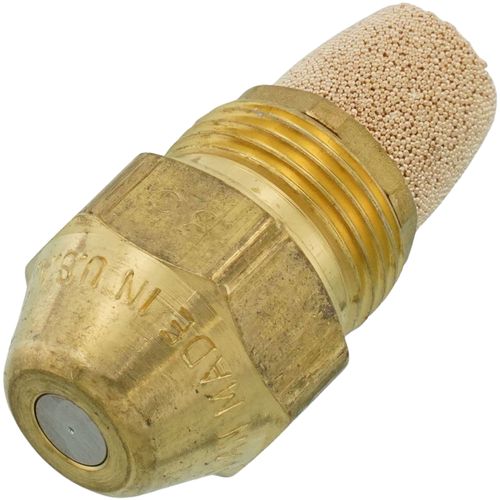

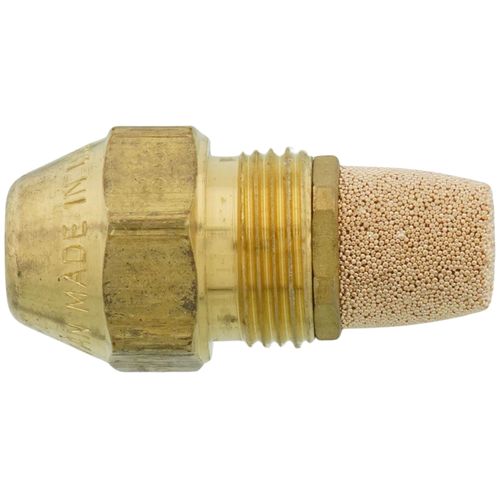

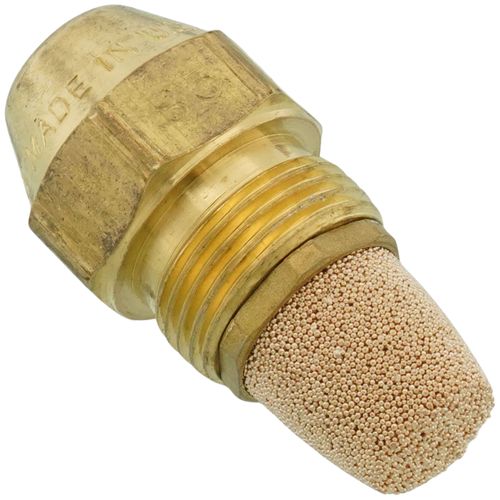

Delavan 0.85-90-B Type B Solid 90° Brass Oil Nozzle (0.85 GPH)

Product Description

The DELAVAN 0.85-90-B Type B nozzle produces a spray that distributes droplets fairly uniformly throughout the complete pattern. The spray pattern becomes progressively more hollow at higher flow rates, particularly above 8.00 GPH. Provides smooth ignition and efficient combustion, particularly in larger burners. Functions as a replacement part in residential applications.

• 90° spray angle
• Constructed of brass
• Solid cone spray pattern

Product Highlights

This solid cone nozzle provides efficient combustion, particularly in larger burners. It is designed for residential applications.

Product Information

Standard Information

• Brand: DELAVAN
• Manufacturer Part Number: 0.85-90-B
• Country of Origin: United States

Technical Specifications

• Gallons Per Hour: 0.85
• Spray Pattern: Solid Cone
• Type: B
• Angle: 90°
• Material: Brass Body, Steel Orifice Disc
• Application: Replacement Part
• Flow Rate: 0.85 GPH
• Manufacturer Name: Delavan
• Spray Angle: 90 Deg
• Pressure Rating: 100 PSI
• Temperature Rating: 80 Deg F
• Filter Type: Sintered
• Brand: Delavan
• Model: Delavan
