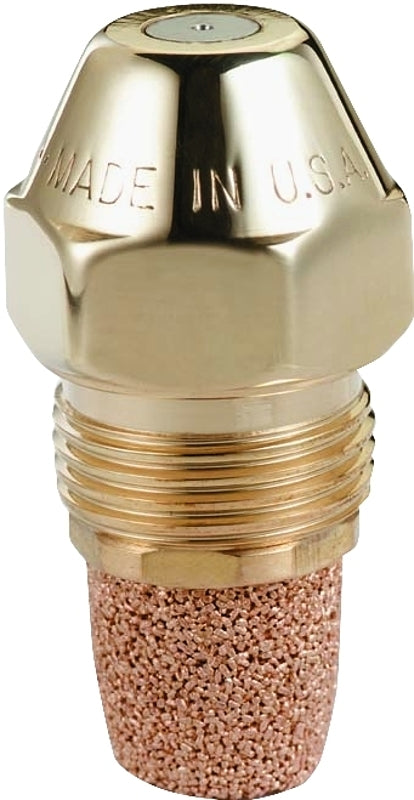

Delavan 0.65-90-A Nozzle 0.65 GPH 90 Degree

Product Description

The DELAVAN 0.65-90-A nozzle is a hollow cone nozzle used on oil burners. This nozzle is RoHS compliant with a 90-degree spray angle and a flow rate of 0.65 GPH. It has a pressure rating of 100 PSI and a fuel temperature rating of 80 Deg F, designed for residential applications and conforms to ISO 9001.

• Unique Inside Anti Plug Construction
• Precise Spray Angle and Optimal Spray Uniformity through New Machining Process
• Reduced Distributor Size with Shorter Tangential Slot to Avoid Plugging

Product Highlights

This nozzle is mainly used on burners with a hollow cone air pattern and for throughputs up to 2.00 GPH. Droplet distribution is concentrated on the outside of the cone, resulting in good ignition and low-noise combustion.

Product Information

Standard Information

• Brand: DELAVAN
• Manufacturer Part Number: 0.65-90-A
• Country of Origin: USA

Technical Specifications

• Item: Nozzle, Hollow Cone
• Used On: Oil Burner
• Category: HVAC/R & Fans
• Series/Model: A
• UNSPSC Code: 40101800
• Manufacturer Name: Delavan
• Manufacturer Part Number: 0.65-90-A
• Spray Angle: 90 Deg
• GPH: 0.65
• Spray Pattern: Hollow
• Material: Brass
• Flow Rate: 0.65 GPH
• Pressure Rating: 100 PSI
• Fuel Temperature Rating: 80 Deg F
• Application: Residential
• Applicable Standard: ISO 9001
