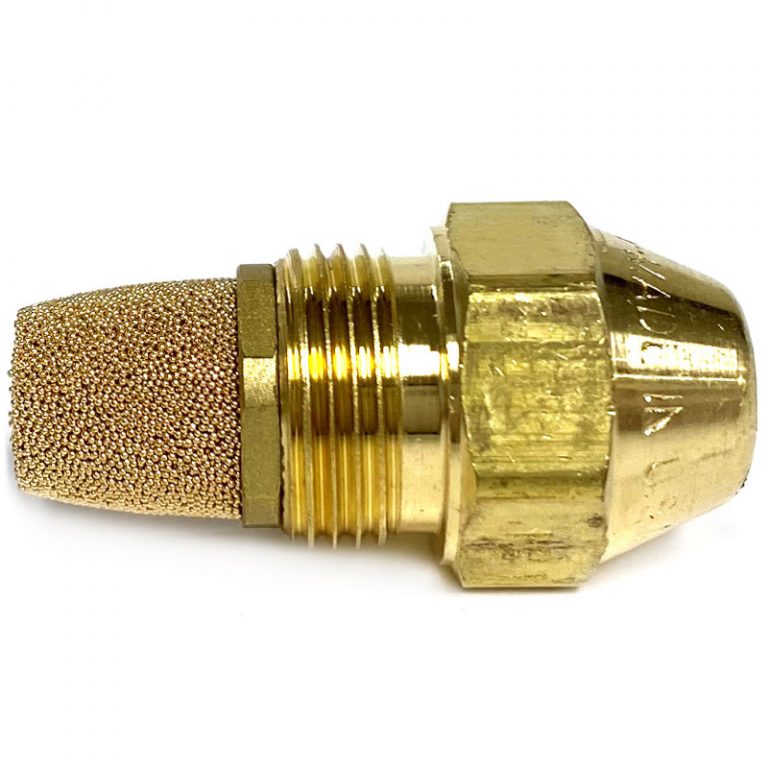

Delavan 0.60-60-b Fuel Oil Nozzle 0.60 Gph 60 Degree B Solid Cone

Product Description

The Delavan 0.60-60-b is a fuel oil burner nozzle designed for residential and light commercial heating equipment. It is built to atomize fuel oil into a fine mist that mixes with air for efficient combustion inside oil-fired boilers, furnaces, and water heaters. HVAC technicians and heating system installers rely on nozzles like this one to maintain proper fuel delivery and combustion efficiency throughout the heating season. The 0.60-60-b delivers a flow rate of 0.60 gallons per hour, which makes it well suited for smaller oil burner applications where precise fuel metering is critical. The 60-degree spray angle produces a mid-range cone pattern that works effectively in a wide range of standard oil burner retention head assemblies. The B solid cone pattern distributes fuel evenly across the full face of the spray cone, which supports stable ignition and complete combustion. A solid cone pattern is commonly specified for burners that require consistent flame characteristics across varying firing conditions. Proper nozzle selection directly impacts combustion efficiency, stack temperature, and overall system performance. Using the correct flow rate, spray angle, and pattern type prevents common problems such as incomplete combustion, excessive soot buildup, sooty heat exchangers, and premature system failure. The Delavan 0.60-60-b is a direct replacement for cross reference part numbers 87008690 and 079251. It is also cataloged under manufacturer part number 8.700-869.0. Heating technicians performing seasonal tune-ups, nozzle replacements, or oil burner service calls can use this part as a reliable drop-in replacement to restore proper burner operation and maintain system efficiency.

• 0.60 GPH flow rate for precise fuel delivery in small capacity oil burner systems
• 60-degree spray angle compatible with a wide range of standard retention head oil burners
• B solid cone pattern supports stable ignition and thorough fuel atomization for cleaner combustion

Product Highlights

The Delavan 0.60-60-b fuel oil nozzle provides accurate fuel atomization with a 0.60 GPH flow rate, 60-degree spray angle, and solid cone pattern. It is a direct replacement for cross reference numbers 87008690 and 079251, making it a straightforward swap during routine oil burner service.

Product Information

Standard Information

• Brand: DELAVAN
• Manufacturer Part Number: 0.60-60-b

Technical Specifications

• Flow Rate: 0.60 GPH
• Spray Angle: 60 Degree
• Spray Pattern: B Solid Cone
• Cross Reference Part Numbers: 87008690, 079251
• Alternate Part Number: 8.700-869.0
