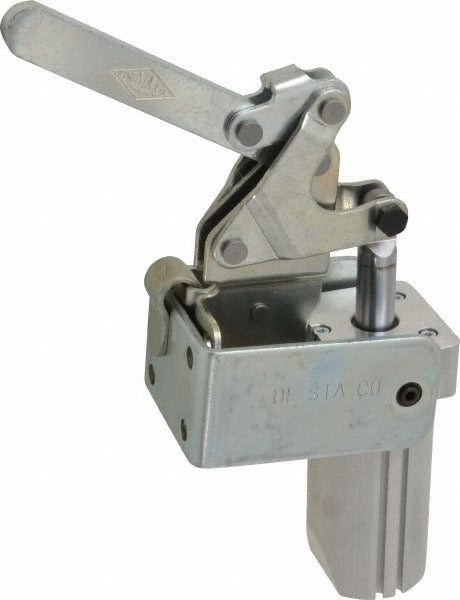

De-sta-co 827-S Pneumatic Hold Down Toggle Clamp 700 Lb

Product Description

The DE-STA-CO 827-S is a pneumatic hold down toggle clamp designed for industrial workholding applications. It delivers a holding capacity of 700 pounds (3110 N) inner clamping force and 2200 N outer clamping force, actuated by a 1.57-inch cylinder bore connected via a 1/8 NPT air port. The solid bar opens to 88 degrees, providing clear access to the workpiece during load and unload cycles. A bolt retainer is included. This clamp is installed by tooling engineers, maintenance technicians, and fixture builders working on production lines, welding fixtures, and machining setups.

The 827-S is suited for vertical mounting in medium-duty industrial fixtures where repeatable pneumatic clamping is required. The 1/8 NPT port is compatible with standard shop air plumbing. With a 3.91-inch height under bar and a 3.18-inch bar extension, it accommodates a range of workpiece thicknesses. Operating temperature range is 14 degrees F to 194 degrees F, making it appropriate for most indoor production environments. Sensor compatibility includes round and T-slot styles for integration with automated cycle controls.

Key Features

• 700 lb (3110 N) inner holding capacity for secure pneumatic workholding
• 88-degree bar opening for unobstructed part loading and unloading
• Solid closed bar style with 3.18-inch bar extension
• 1/8 NPT air port compatible with standard industrial air lines
• Vertical mounting orientation with 0.33-inch mounting hole size
• Round and T-slot sensor compatibility for automation integration
• Includes bolt retainer for positive bar retention

Compatibility

Designed as an OEM-style pneumatic hold down toggle clamp for vertical-mount industrial workholding fixtures. Sensor compatibility is specified for round and T-slot sensor types.

Installation Notes

Installation is performed by tooling engineers or qualified maintenance technicians. Isolate and depressurize the air supply before mounting or servicing the clamp. Secure the clamp to the fixture plate using fasteners sized for the 0.33-inch mounting holes, and verify that all air fittings are leak-free before applying operating pressure. Maximum air pressure must not exceed 10 bar during operation.
