De-sta-co 605 Straight Line Action Clamp 300 Lb

Product Description

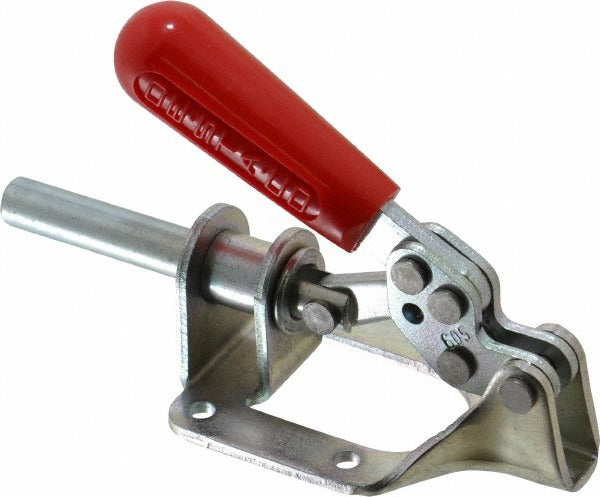

The DE-STA-CO 605 is a standard straight line action clamp designed to deliver 300 lb (1334.47 N) of load capacity in a compact, flanged-base configuration. The clamp uses a linear plunger mechanism with a round plunger measuring 0.44 inches in diameter and 1.25 inches of travel, allowing it to apply consistent, repeatable clamping force along a single axis. Built from carbon steel, the 605 is suited for fixturing, welding, assembly, and fabrication applications where a rigid, reliable hold is required. Licensed machinists, toolmakers, and assembly technicians are the primary installers of this hardware.

The DE-STA-CO 605 is used in industrial and manufacturing environments where straight-line clamping force is needed at a fixed workstation. Its flanged base with four mounting holes allows secure attachment to fixtures, jigs, and work tables. The straight red handle provides a clear grip point for manual actuation. With a mechanical advantage rated at 40:1 pulling and 45:1 pushing, the clamp multiplies hand force efficiently for consistent hold-down in repetitive production cycles.

Key Features

• 300 lb (1334.47 N) rated load capacity for dependable hold-down force
• 1.25 inches of plunger travel with a round, internally threaded plunger (5/16-18 thread)
• Flanged base with four mounting holes for rigid fixture attachment
• Maximum mechanical advantage of 40:1 pulling and 45:1 pushing
• Carbon steel construction for durability in industrial environments
• Straight red handle for quick manual actuation

Compatibility

Designed as a standard straight line action clamp for use in industrial fixturing, welding jigs, and assembly workholding applications. No specific equipment compatibility was stated in the product data.

Installation Notes

This clamp is typically installed by toolmakers, fixture builders, or assembly line technicians. Power down or lock out any associated machinery before mounting or adjusting the clamp. Secure the flanged base through all four mounting holes using appropriate fasteners to prevent movement under load. Verify that the plunger thread engagement and travel clearance suit the workpiece before placing the fixture into production use.
